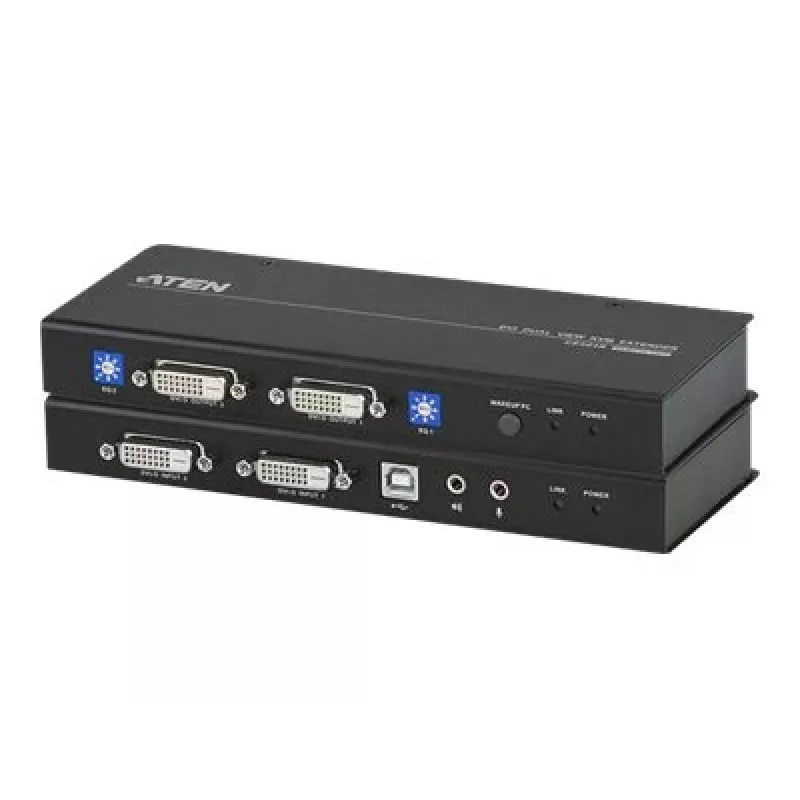

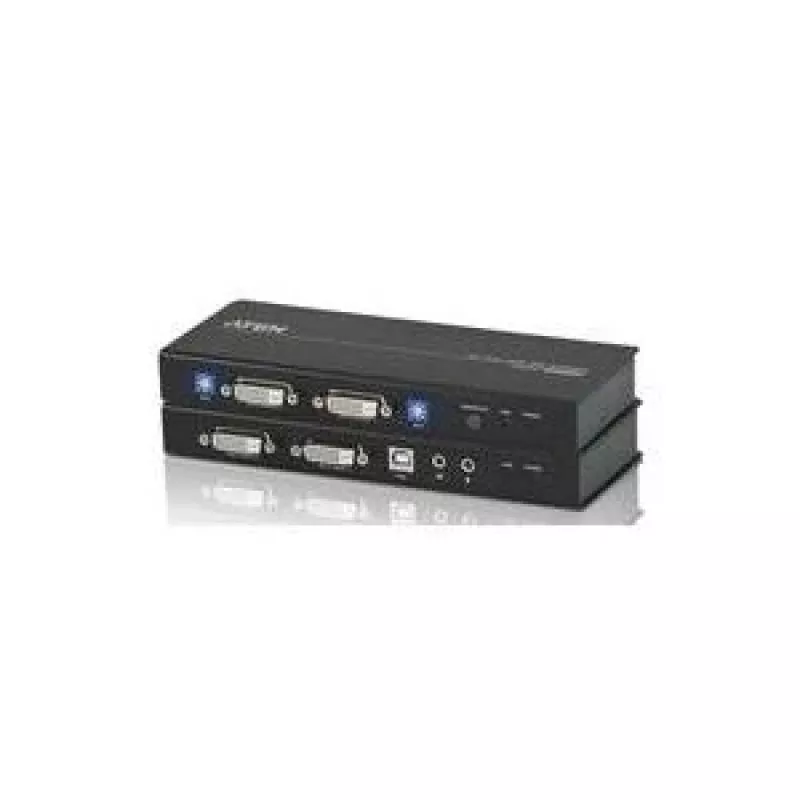

ATEN CE604-AT-G extensor KVM – 2x DVI, áudio, USB, RS-232, 60m

Extend dual DVI video, USB, audio, and RS-232 signals up to 60 meters over a single Cat 5e/6 cable with the ATEN CE604-AT-G KVM Extender. This wired extender supports resolutions up to 1920 x 1200 at 60Hz, ensuring crisp visuals for dual-screen setups.

Overview

The ATEN CE604-AT-G is a KVM extender consisting of local and remote units. It extends dual DVI-D video, USB 2.0, stereo audio, and RS-232 serial signals up to 60 meters using standard Cat 5e/6 cabling. The remote unit features a built-in 2-port USB hub, allowing connection of keyboard, mouse, and other peripherals. EDID technology ensures optimal video output, and the units are hot-pluggable for easy installation.

What stands out

• Dual DVI-D video support for dual-monitor setups
• Extends USB, audio, and RS-232 alongside video
• Built-in 2-port USB 2.0 hub on the remote unit
• Supports resolutions up to 1920 x 1200 @ 60Hz
• Rack mountable with optional kit

Technical details

• Connectivity technology: Wired
• Video interface: DVI-D
• Maximum transfer distance: 60 m
• Maximum digital resolution: 1920 x 1200
• Maximum refresh rate: 60 Hz
• USB port type: USB Type-B (local), USB Type-A (remote)
• USB 2.0 ports quantity: 2 (remote unit)
• RS-232 ports: 1 (local), 1 (remote)
• Audio support: Yes (2-channel stereo)
• Cable types supported: Cat 5e, Cat 6
• HDCP: Yes
• Rack mounting: Yes (optional kit)
• Material: Metal
• Operating temperature (T-T): 0 - 50 °C
• LED indicators: Yes
• DC-in jack: Yes

Our verdict

The ATEN CE604-AT-G is a robust KVM extender for dual-DVI setups, delivering full USB, audio, and serial extension up to 60 meters. Its built-in USB hub and EDID support make it a reliable choice for professional environments.
