ATTE AUPS-100-120-F Fonte de alimentação tampão 12V 10A 120W

The ATTE AUPS-100-120-F is a professional buffer power supply designed for security and automation systems. It provides a stable 12V DC output with up to 10A current and 120W power, ensuring reliable operation of connected devices. The unit supports 12V lead-acid batteries (AGM/Gel) with a charging current of 2A, making it ideal for backup power applications.

Advantages

This power supply offers adjustable output voltage (11.5V - 13.8V) to accommodate various system requirements. Its metal enclosure and wall-mountable design ensure durability and easy installation. Comprehensive protection features including short circuit, overload, overvoltage, and battery deep discharge protection safeguard both the power supply and connected equipment.

Suitable for

• Security and alarm systems
• Access control systems
• CCTV cameras and recorders
• Automation and control panels
• Backup power for low-voltage devices

Key specifications

• Input voltage: 170-250V AC, 50-60Hz
• Output voltage: 12V DC (adjustable 11.5V - 13.8V)
• Max output current: 10A
• Max output power: 120W
• Battery charging current: 2A
• Supported battery: 12V lead-acid (AGM/Gel), 7-40Ah
• Protection: SCP, OLP, OVP, UVP
• Efficiency: >85%
• Operating temperature: -10°C to +40°C

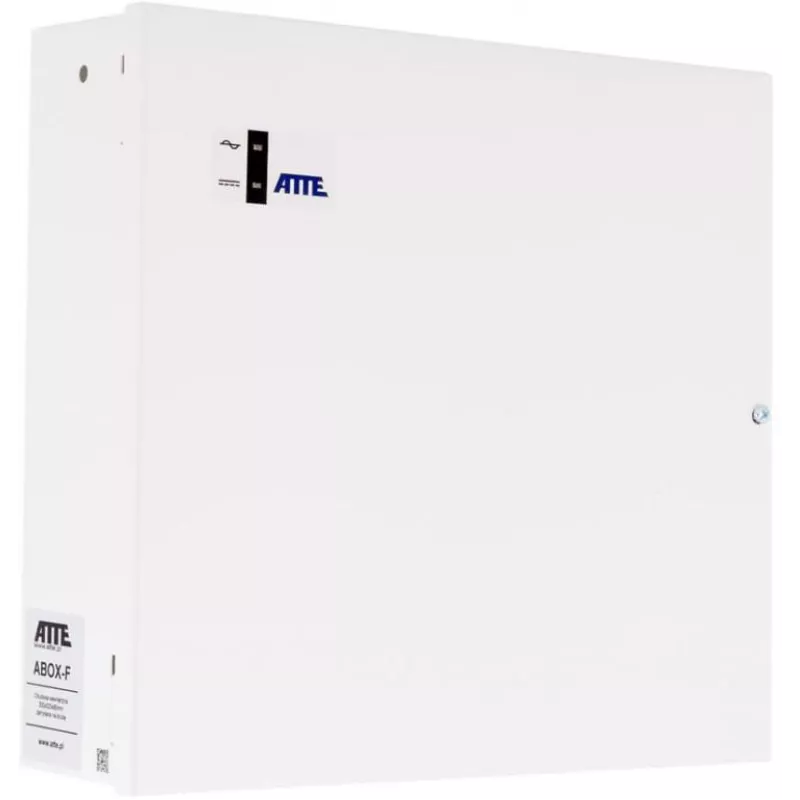

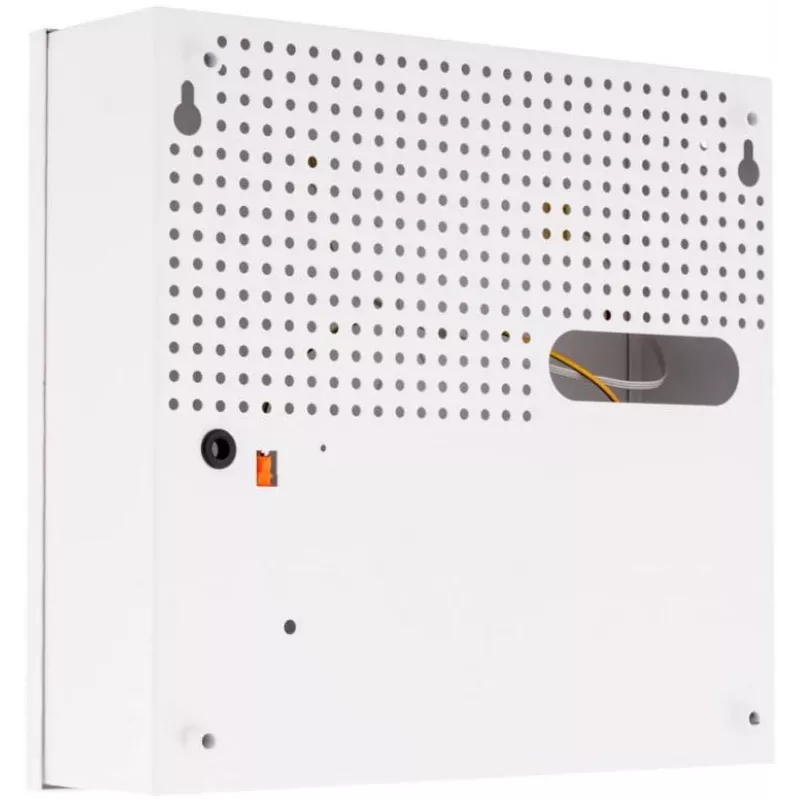

• Enclosure: Metal, wall-mountable
• Cooling: Passive convection
• Status indicators: LED for AC, output, battery charging

Recommendations

For optimal performance, use a 12V lead-acid battery with capacity between 7Ah and 40Ah. Ensure proper ventilation and avoid exposure to extreme temperatures. This unit is designed for indoor use only.
