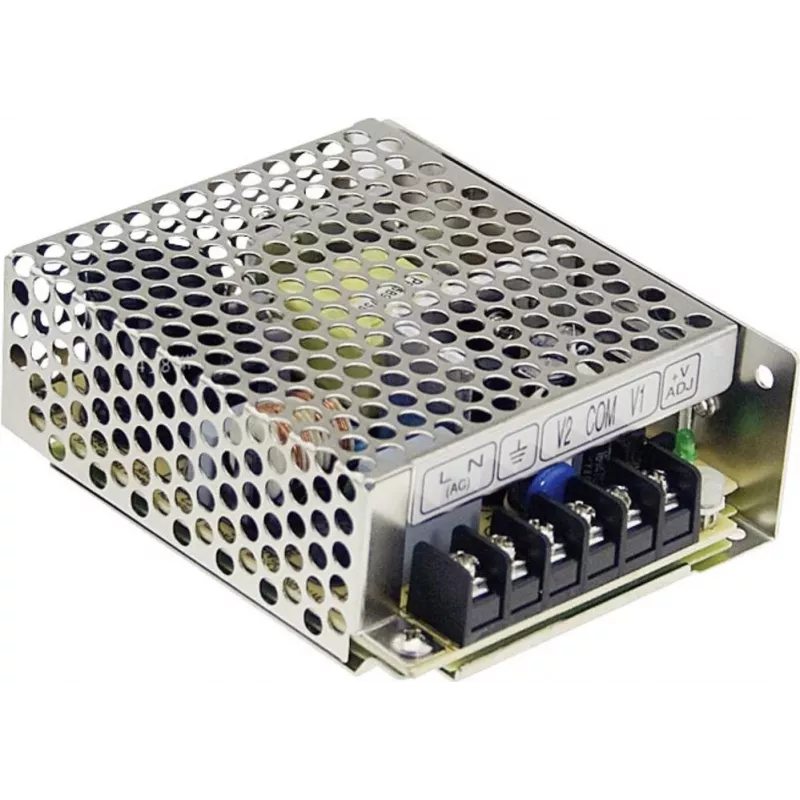

MEAN WELL RS-35-5 Fonte de alimentação comutada fechada 30W 5V 6A, entrada 85-264VAC, caixa metálica

Industrial control panels, LED lighting rigs, and automation systems often need a compact, reliable DC source that won’t quit. The MEAN WELL RS-35-5 delivers a steady 5V at up to 6A from any mains voltage between 85 and 264VAC, making it a go-to for engineers and technicians who build or service equipment across different power grids.

Key specifications

• Output: 5V DC, 6A, 30W maximum
• Input: 85~264VAC (47~63Hz) or 120~370VDC
• Efficiency: 78% typical
• Ripple & noise: 80mVp-p
• Voltage adjustment: 4.75~5.5V
• Protections: overload, overvoltage, short circuit
• Operating temperature: -25°C to +70°C
• Enclosure: metal, chassis mount
• Safety: UL60950-1, TUV EN60950-1, CB, CE
• MTBF: >400,000 hours
• Cooling: free air convection

Why choose it

The RS-35-5 is built for longevity and stability. Its enclosed metal case shields against electromagnetic interference and physical contact, while the wide input range means one unit can be deployed in installations worldwide. Overload and short-circuit protection prevent damage to both the supply and the load, reducing downtime and maintenance costs.

Ideal use cases

• Powering sensors, relays, and controllers in industrial automation
• Driving 5V LED strips or indicator lights
• Bench testing and prototyping of 5V circuits
• Replacement supply for legacy equipment with 5V rails
• Telecom and networking devices requiring isolated DC

Good to know

The RS-35-5 uses convection cooling, so no fan is needed—silent operation and fewer moving parts. Adjust the output voltage slightly via the built-in potentiometer to compensate for cable drops. Mount it on a metal chassis for best heat dissipation, and keep ambient temperature within the rated range for full 30W output. Derating may apply above 50°C.
