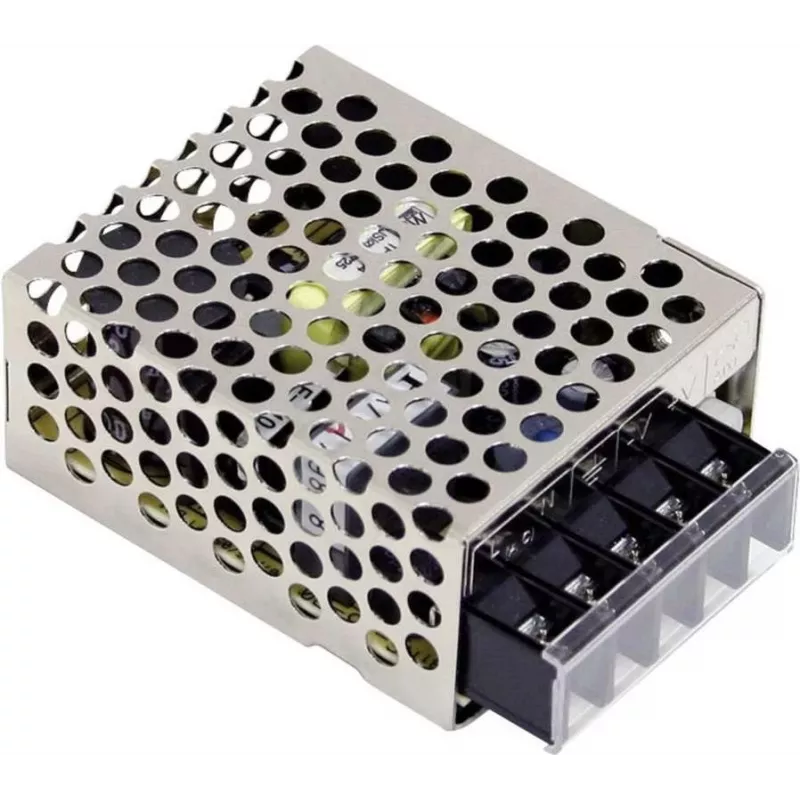

MEAN WELL RS-15-15 15W 15V 1A fonte de alimentação comutada fechada

Engineered for reliable DC power in tight spaces, the MEAN WELL RS-15-15 stands out with its compact metal enclosure and full protection suite — overload, overvoltage, and short circuit — making it a dependable choice for industrial control, automation, and LED lighting projects. Unlike open-frame units, this enclosed supply adds a layer of safety and durability while maintaining a wide 85–264 VAC input range for global use.

Highlights

• 15 W output at 15 VDC, 1 A — ideal for low-power devices
• Universal AC input (85–264 VAC) with 47–63 Hz frequency
• Built-in protections: overload, overvoltage, short circuit
• Free air convection cooling — no fan, silent operation
• Compact metal housing for robust industrial environments
• Complies with UL60950-1 and TUV EN60950-1 safety standards

In daily use

The RS-15-15 delivers clean, stable 15 VDC with low ripple (120 mVp-p) and fast transient response, ensuring sensitive electronics operate smoothly. Its wide operating temperature range of -20°C to +70°C allows deployment in harsh conditions, while the 3 kVAC isolation between input and output enhances safety. Installation is straightforward with screw terminals, and the metal case provides EMI shielding and mechanical protection.

Full specifications

• Output: 15 VDC, 1 A, 15 W
• Input: 85–264 VAC (120–370 VDC), 47–63 Hz
• Input current: 0.35 A @ 115 VAC, 0.25 A @ 230 VAC
• Efficiency: 83%
• Ripple & noise: 120 mVp-p
• Setup, rise time: 500 ms, 20 ms; hold-up time: 10 ms
• Protections: overload, overvoltage, short circuit
• Isolation: 3 kVAC input to output
• Cooling: free air convection
• Operating temperature: -20°C to +70°C; storage: -40°C to +85°C
• Safety: UL60950-1, TUV EN60950-1; EMC: EN55022 Class B, EN61000-3-2,3

Final note

With its proven MEAN WELL reliability and compact footprint, the RS-15-15 is a smart choice for engineers and integrators seeking a safe, efficient, and globally compatible power solution.
