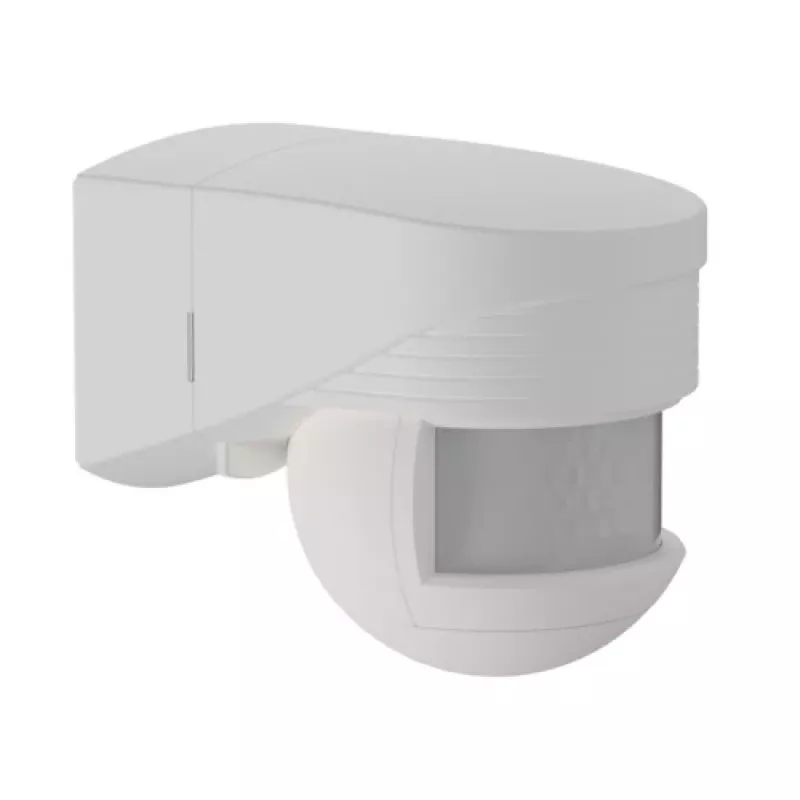

BEG LC-Click 140 detetor de movimento branco 91101

The BEG LC-Click 140 is a passive infrared motion detector engineered for reliable automatic lighting control in indoor and sheltered outdoor areas. With a wide 140° detection angle and a tangential range of up to 12 metres, it ensures comprehensive coverage for hallways, stairwells, entrances, and utility rooms. Its sensitivity and time settings are easily adjusted via integrated potentiometers, allowing precise adaptation to the environment.

Advantages

The LC-Click 140 combines robust construction with versatile functionality. The UV-stabilised polycarbonate housing and IP54 rating protect against dust and water splashes, making it suitable for damp locations. A teach-in function stores the current ambient brightness level, while the pulse mode enables integration with staircase time switches or existing impulse relays. Test mode simplifies commissioning by allowing quick functional checks.

Suitable for

• Automatic switching of lighting in corridors, stairwells, and entrance areas
• Energy-saving control in utility rooms, basements, and garages
• Integration with staircase lighting timers via pulse function
• Indoor and sheltered outdoor applications requiring IP54 protection

Key specifications

• Sensor type: Passive infrared (PIR)
• Detection angle: 140°
• Tangential detection range: max. 12 m
• Mounting: Wall mounting, recommended height 1.7–2.5 m
• Operating voltage: 230 V AC ±10%, 50/60 Hz
• Switching capacity: 2300 W / 10 A resistive, 1150 VA inductive, 600 W LED
• Time setting: 10 s – 30 min or pulse
• Brightness setting: 10–2000 lux
• Protection class: IP54
• Housing: UV-stabilised polycarbonate
• Colour: White (RAL 9010)
• Operating temperature: -25 °C to +50 °C
• Power consumption: < 0.5 W

Recommendations

For optimal performance, mount the LC-Click 140 at a height between 1.7 and 2.5 metres, avoiding direct sunlight and heat sources. Use the teach-in function to set the exact brightness threshold for your space, and select pulse mode when connecting to a staircase time switch. Ensure the load does not exceed the specified switching capacity, especially with LED lamps.
