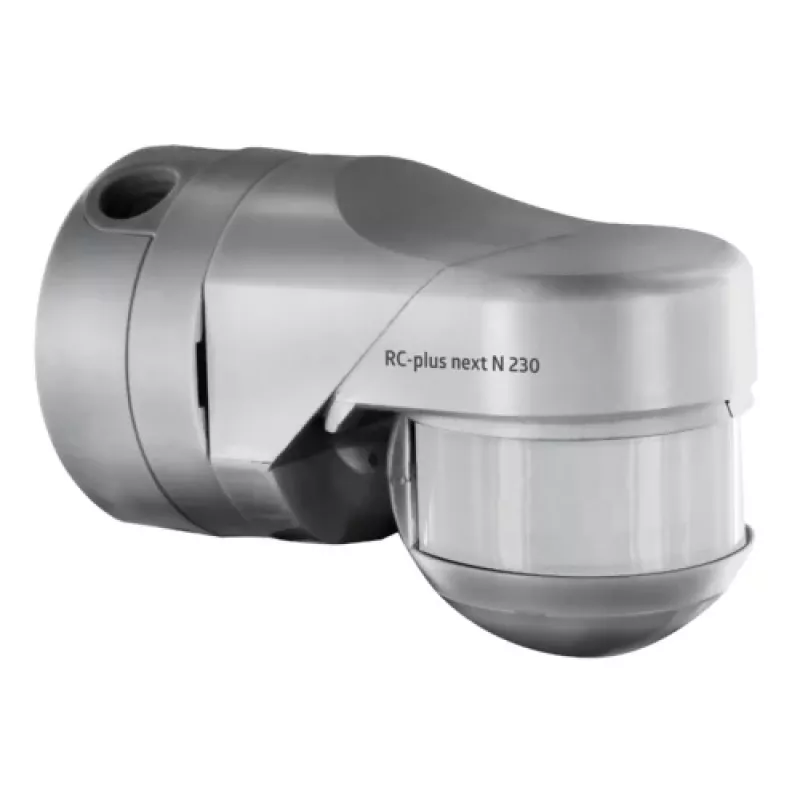

BEG BRCK LUXOMAT RC-plus next N 230 detetor de movimento, aspeto aço inoxidável, deteção 230°, 230V

Outdoor areas often need reliable lighting that activates only when someone is present—without wasting energy or compromising security. The BEG BRCK LUXOMAT RC-plus next N 230 motion detector delivers exactly that, combining a wide 230° detection angle with a sleek stainless steel look that blends into modern facades. Whether you need to illuminate a driveway, entrance, or building perimeter, this sensor ensures lights switch on precisely when needed and off when not.

Who is it for

This motion detector is ideal for homeowners, facility managers, and electricians who want dependable outdoor lighting control. It suits residential and commercial settings where robust, weather-resistant sensors are required. If you value energy efficiency, ease of installation, and a design that complements contemporary architecture, this model fits the bill.

Main features

• Passive infrared (PIR) sensor with a generous 230° detection angle and up to 16 m tangential range.
• Adjustable light sensitivity from 10 to 2000 lux and time delay from 15 seconds to 16 minutes.
• Durable UV-stabilized polycarbonate housing with an elegant stainless steel look, rated IP54 for outdoor use.
• Supports test mode, pulse function, teach-in, and twilight switch for flexible operation.
• Handles switching loads up to 2300 W resistive or 1150 VA inductive, directly controlling lighting without extra relays.

Specifications

• Detection technology: Passive infrared (PIR)
• Detection angle: 230°
• Detection range (tangential): max. 16 m
• Optimal mounting height: 2.5 m (range 2.0–4.0 m)
• Power supply: 230 V AC, 50 Hz
• Max. switching power: 2300 W resistive, 1150 VA inductive (cos φ = 0.5)
• Light sensor adjustment: 10–2000 lux
• Time delay adjustment: 15 s – 16 min
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilized polycarbonate
• Finish: stainless steel look
• Mounting type: surface mount (wall/ceiling)
• Self-consumption: approx. 0.5 W
• IP rating: IP54

Tips

For best results, mount the sensor at the recommended height of 2.5 m and avoid pointing it toward reflective surfaces or heat sources that could cause false triggers. Use the teach-in function to set the desired lux level based on actual ambient light, and test the detection area during installation using the test mode. The pulse function is handy for staircase lighting timers or building automation systems.
