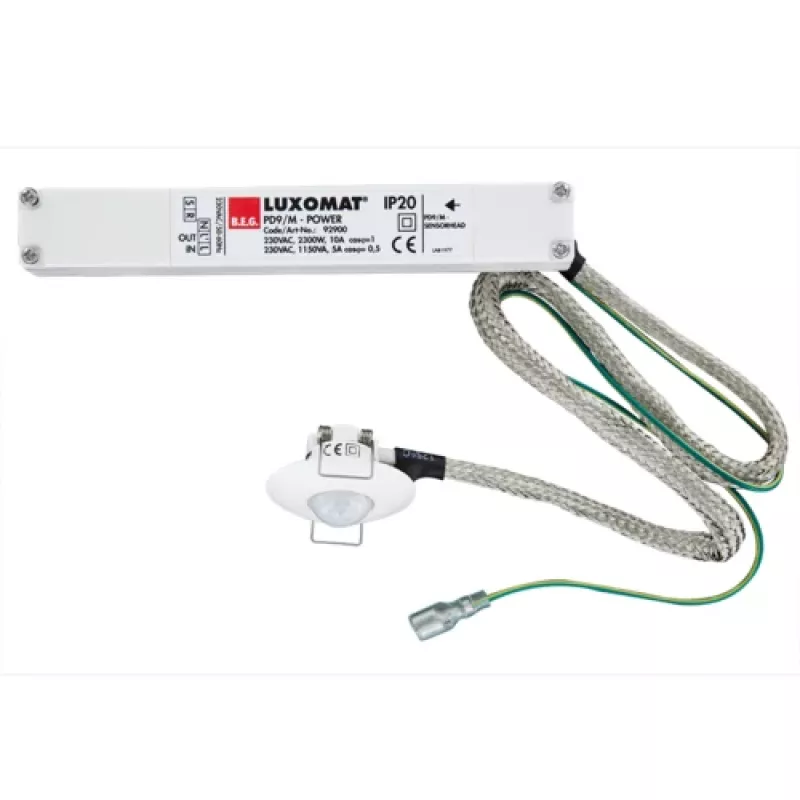

BEG BRCK LUXOMAT PD9-Master Mini detetor de presença, montagem em teto, RAL 9010 branco puro, deteção 360°, alcance 8 m, IP20

Lighting control in small rooms often suffers from either over-illumination or wasted energy when occupants forget to switch off. The BEG BRCK LUXOMAT PD9-Master addresses this by automatically turning lights on when presence is detected and off after a set delay, ensuring illumination only when needed. This flush-mounted mini presence detector blends discreetly into ceilings with its RAL 9010 pure white finish, making it ideal for offices, corridors, bathrooms, and storage areas.

Who is it for

Electricians, facility managers, and homeowners seeking a reliable, energy-saving lighting automation solution for small to medium-sized indoor spaces. It suits both new installations and retrofits where a Ø 38 mm ceiling cut-out is available.

Main features

• 360° detection angle with a coverage diameter of 8 m at 2.5 m mounting height (approx. 50 m²).
• Integrated light sensor adjustable from 10 to 2000 lux, allowing operation only in low ambient light.
• Adjustable follow-up time from 15 seconds to 30 minutes to match usage patterns.
• High switching capacity: 2300 W resistive or 500 W LED at 230 V AC.
• Potential-free NO contact for flexible integration with various loads or building management systems.
• Compact design: visible diameter only 33 mm, installation depth 36 mm, for a clean ceiling appearance.
• Master control type enables direct switching of lighting circuits without additional relays for most loads.

Specifications

• Brand: BEG BRCK LUXOMAT
• Model: PD9-Master
• MPN: 92900
• EAN: 4007529929009
• Detection area: Ø 8 m (50 m²) at 2.5 m mounting height
• Detection angle: 360°
• Mounting type: Ceiling flush-mount
• Recommended mounting height: 2.5 m
• Operating voltage: 230 V AC, 50/60 Hz
• Max switching power (resistive): 2300 W / 10 A
• Max switching power (LED): 500 W
• Light sensor range: 10 - 2000 lux
• Time delay: 15 sec - 30 min
• Protection class: IP20
• Colour: RAL 9010 (Pure White)
• Control type: Master
• Installation hole diameter: Ø 38 mm
• Visible diameter: 33 mm
• Installation depth: 36 mm
• Power consumption: ~0.5 W
• Switching output: 1x NO contact, potential-free
• Operating temperature: -25 °C to +50 °C

Tips

For optimal performance, install the detector at a height of 2.5 m in a location with a clear view of the area to be monitored. Adjust the light sensitivity and time delay according to the specific usage of the room to maximize energy savings.
