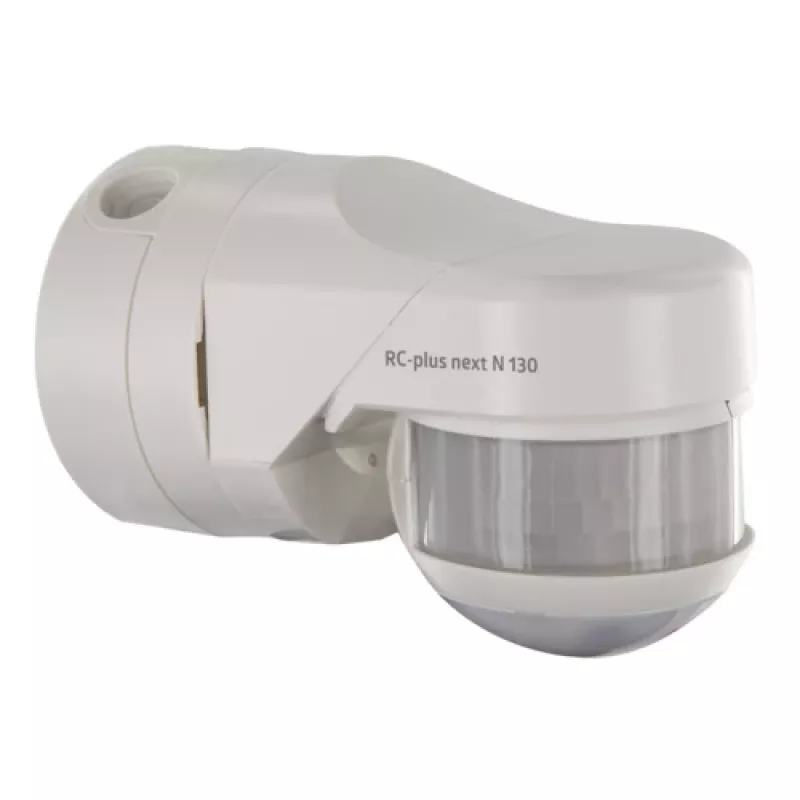

BEG RC-plus next N 130 detetor de movimento branco com ângulo de deteção de 130° e proteção anti-intrusão

Unwanted darkness in corridors, entrances, or utility rooms wastes energy and compromises safety. The BEG RC-plus next N 130 solves this by automatically switching lights on when movement is detected and off after a set delay, ensuring illumination only when needed. Its 130° detection angle and creep protection cover a wide area, including directly beneath the sensor, reducing blind spots.

Who is it for

This motion detector is ideal for electricians, facility managers, and homeowners seeking reliable, energy-efficient lighting control in residential, commercial, or industrial settings. It suits hallways, stairwells, basements, garages, and outdoor covered areas where hands-free lighting is beneficial.

Main features

• Passive infrared (PIR) sensor with 130° detection angle and up to 12 m tangential range (8 m radial).
• Creep protection ensures detection directly underneath the unit, eliminating under-crawl blind spots.
• Adjustable time delay from 10 seconds to 20 minutes and brightness threshold from 10 to 2000 lux.
• High switching capacity: 2300 W resistive or 1150 VA inductive load.
• Robust UV-stabilized polycarbonate housing with IP54 rating for dust and splash resistance.
• Surface-mounted on wall or ceiling; recommended installation height 2.5 m.
• Test mode and pulse function for flexible commissioning and special applications.

Specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 130°
• Detection range radial: up to 8 m
• Detection range tangential: up to 12 m
• Creep protection: Yes
• Mounting type: Wall / Ceiling (surface-mounted)
• Recommended installation height: 2.5 m
• Product colour: White
• International Protection (IP) code: IP54
• Supply voltage: 230 V AC, 50/60 Hz
• Max. switching power (resistive): 2300 W (10 A)
• Max. switching power (inductive): 1150 VA (5 A)
• Time setting range: 10 sec - 20 min (adjustable)
• Brightness threshold range: 10 - 2000 Lux (adjustable)
• Operating temperature: -25 °C to +50 °C
• Power consumption (standby): < 1 W
• Housing material: UV-stabilized polycarbonate
• Output type: Relay (1 NO contact)
• Additional functions: Test mode, Pulse function

Tips

For optimal performance, mount the detector at 2.5 m height in a location with a clear view of the area to be monitored. Avoid pointing it toward heat sources or moving objects like curtains, as these can cause false triggers. Use the test mode during installation to verify coverage and adjust the time and lux settings to match the specific application.
