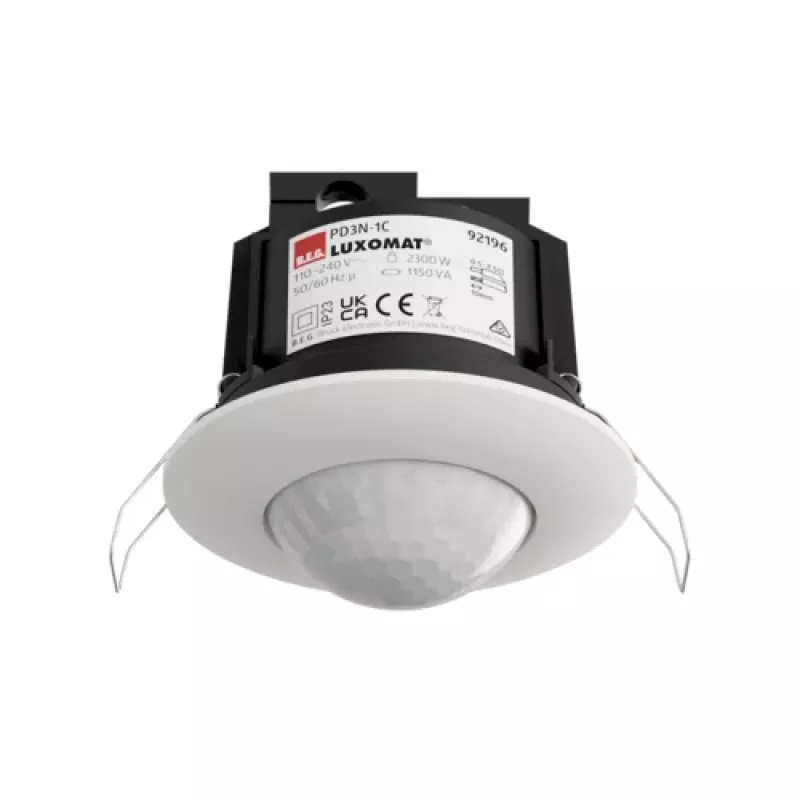

BEG BRCK LUXOMAT PD3N-1C Detetor de movimento PIR de montagem no teto, 1 canal, 230V, 360°, branco

In offices, schools, and corridors, the BEG BRCK LUXOMAT PD3N-1C motion detector automatically switches lighting on when someone enters and off after they leave. With a 360° detection angle and a presence range of up to 7 m² at a 2.5 m mounting height, it reliably covers small rooms and passageways. The built-in light sensor prevents unnecessary switching during daylight, while the adjustable time delay from 15 seconds to 30 minutes adapts to any usage pattern.

Key specifications

• Sensor type: Passive Infrared (PIR)
• Mounting: Ceiling flush mount
• Detection angle: 360°
• Presence detection range: Ø 3 m (7 m²) at 2.5 m height
• Tangential detection range: Ø 10 m (78 m²) at 2.5 m height
• Supply voltage: 230V AC ±10%, 50/60 Hz
• Output: 1 potential-free relay channel
• Max. switching power incandescent/halogen: 2300 W
• Max. switching power LED (typical): 600 W
• Light sensor range: 10–2000 Lux
• Time delay: 15 sec–30 min
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Power consumption: < 0.5 W
• Housing material: UV-stabilised polycarbonate
• Colour: White
• Control elements: Potentiometers for time and lux

Why choose it

The PD3N-1C combines precise presence detection with a high switching capacity, making it suitable for both incandescent and modern LED loads. Its compact, flush-mounted design blends discreetly into ceilings, while the UV-stabilised housing ensures long-term durability. Simple potentiometer adjustments allow quick on-site configuration without tools.

Ideal use cases

• Automatic lighting control in offices, meeting rooms, and classrooms
• Energy-saving illumination in corridors, stairwells, and restrooms
• Retrofit projects where a flush-mounted PIR detector is required
• Switching of LED, halogen, or incandescent lighting up to 2300 W

Good to know

Installation height is optimised for 2.5 m; detection ranges vary with mounting height. The potential-free relay output allows integration with building management systems or direct switching of lighting circuits. For outdoor or damp environments, an IP20 rating means this detector is intended for indoor use only.
