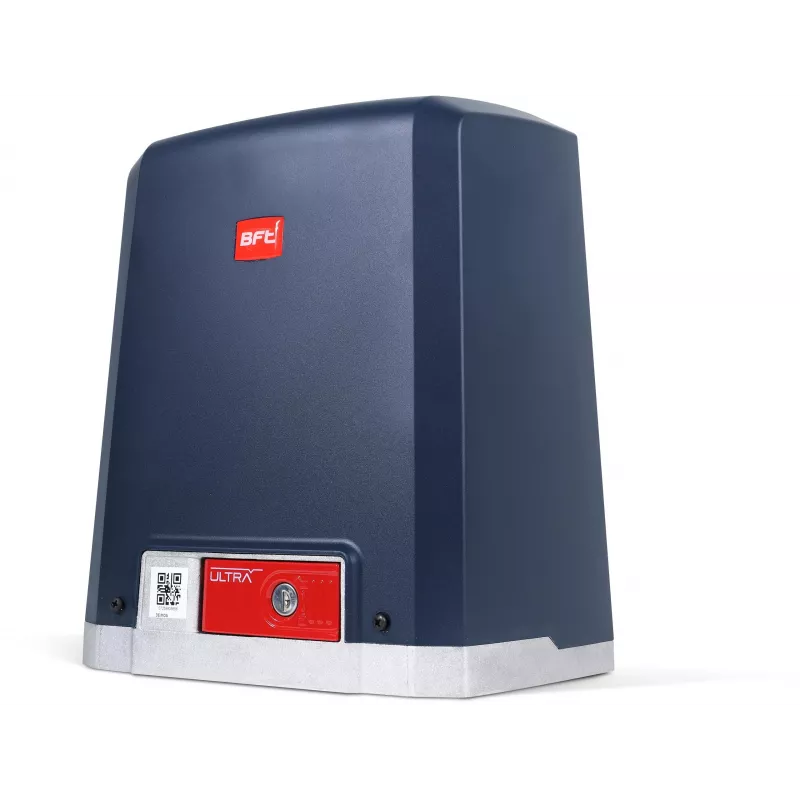

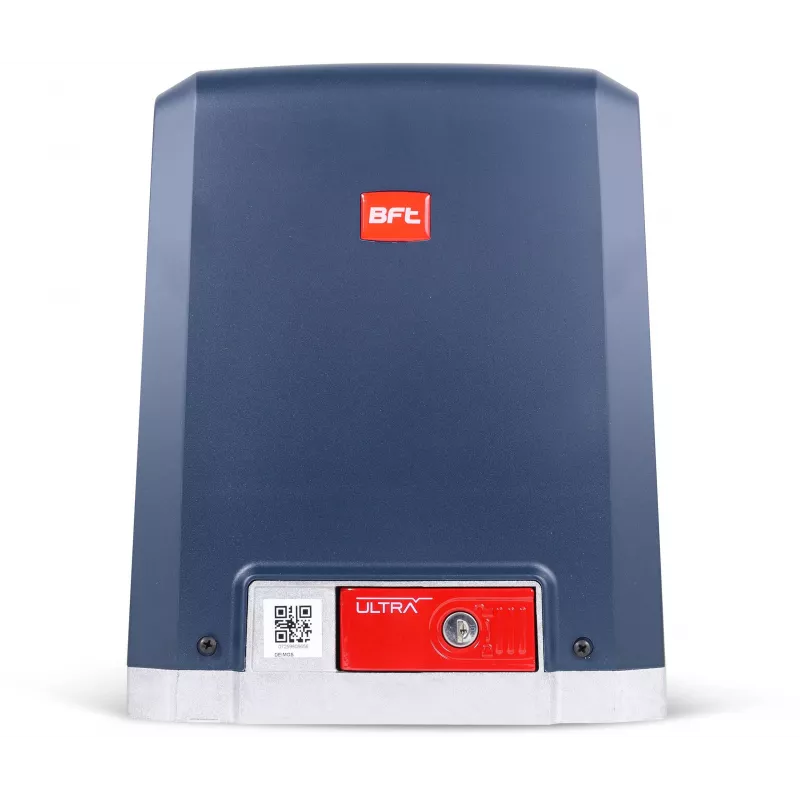

BFT DEIMOS ULTRA BT B400 EE KIT motor de portão de correr para portões até 400 kg

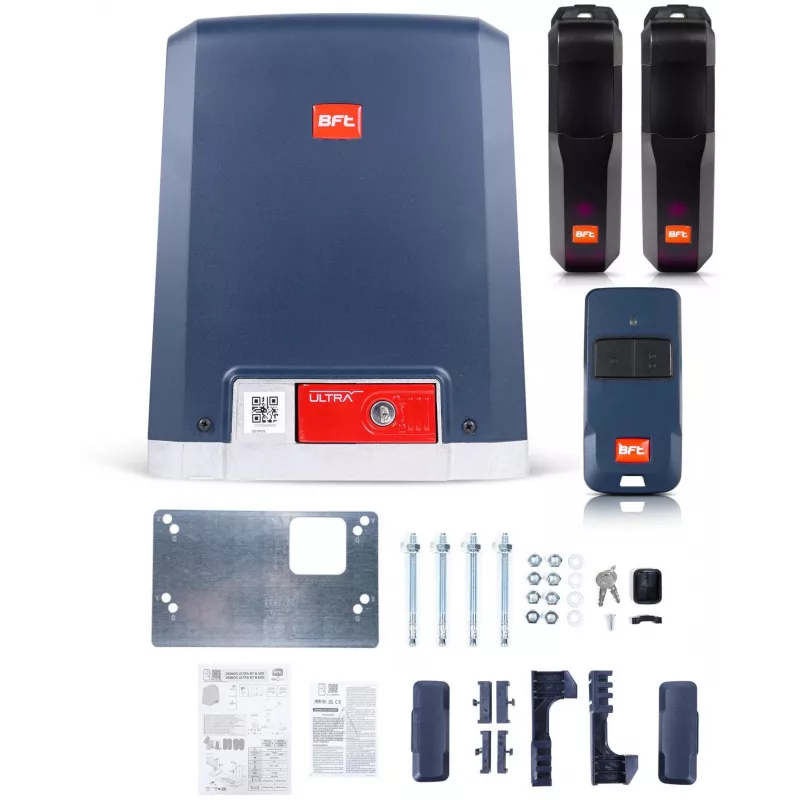

The BFT DEIMOS ULTRA BT B400 EE KIT is a complete, high-performance sliding gate automation kit designed for residential and commercial gates weighing up to 400 kg. This kit includes a powerful 24V DC motor, integrated THALIA LIGHT control unit, and all essential accessories for a professional installation. With advanced features like D-Track obstacle detection and soft start/stop, it ensures smooth, safe, and reliable operation.

Advantages

This kit offers exceptional value with its integrated control unit, reducing installation complexity. The 24V DC motor provides quiet and efficient operation, while the magnetic limit switches ensure precise gate positioning. The included MITTO B remote controls and DESME A15 photocells enhance security and convenience.

Suitable for

• Sliding gates up to 400 kg
• Residential and light commercial applications
• High-traffic environments requiring intensive use

Key specifications

• Max Gate Weight: 400 kg
• Motor Type: 24V DC
• Control Unit: THALIA LIGHT (integrated)
• Power Supply: 230V AC, 50/60 Hz
• Motor Power: 70 W
• Gate Speed: 12 m/min
• Usage Intensity: Very Intensive
• Limit Switch Type: Magnetic
• Pinion Module: M4
• Obstacle Detection: D-Track
• Soft Start/Stop: Yes
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Remote Controls: 2x MITTO B RCB04 R1 (4-channel)
• Photocells: 1x DESME A15 (pair)
• Flashing Light: 1x RADIUS B LTA 24 R1 (with integrated antenna)
• Gate Type: Sliding Gates
• Battery Backup: Optional (not included)

Recommendations

For optimal performance, ensure the gate is well-maintained and balanced before installation. Consider adding the optional battery backup for continued operation during power outages. Professional installation is recommended.
