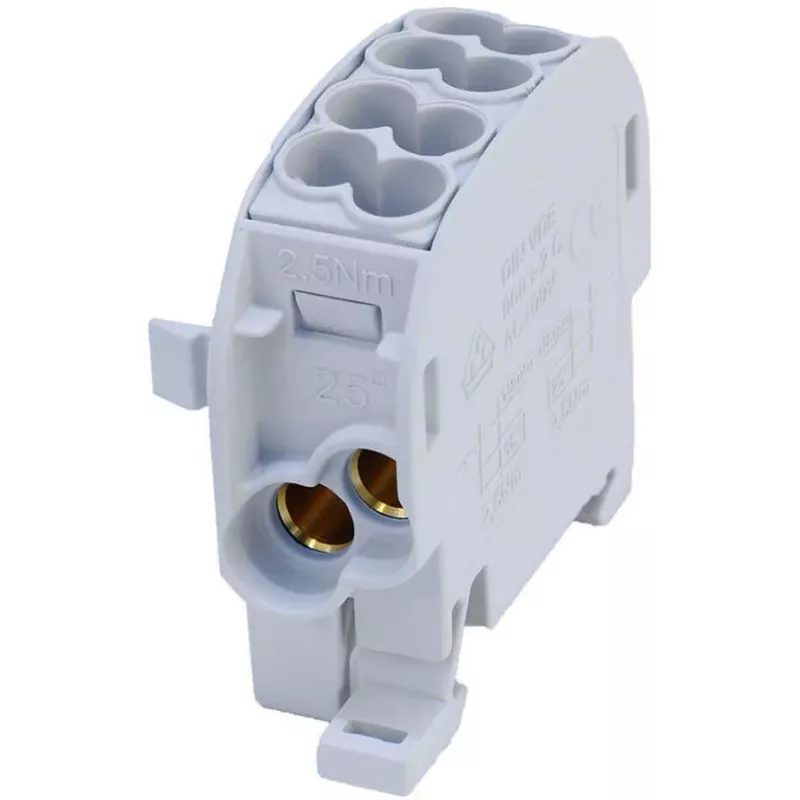

Bloco de distribuição derivado SIMET SCB 25 Al/Cu 80110 SIMBLOCK, cinzento 81501002

The SIMET SCB 25 Al/Cu 80110 SIMBLOCK is a high-quality branch distribution block designed for reliable power distribution in electrical installations. It accommodates both aluminum and copper conductors, making it versatile for various applications. With a compact design and robust construction, this block ensures safe and efficient connections.

Advantages

Supports both aluminum and copper conductors, reducing inventory needs. Easy DIN rail or screw mounting simplifies installation. High rated voltage up to 1000V AC and 1500V DC ensures compatibility with demanding systems. The polyamide insulation provides excellent electrical and thermal resistance.

Suitable for

• Industrial control panels
• Power distribution boards
• Electrical cabinets
• Renewable energy systems (solar, wind)

Key specifications

• Type: Branch Distribution Block
• Number of Poles: 1-pole
• Main Conductor Cross-section (Cu): 6 - 25 mm²
• Main Conductor Cross-section (Al): 6 - 25 mm²
• Tap-off Conductor Cross-section (Cu): 1.5 - 6 mm²
• Tap-off Conductor Cross-section (Al): 1.5 - 6 mm²
• Rated Current (Main Line, Cu): 100 A
• Rated Current (Main Line, Al): 80 A
• Rated Current (Tap-off Line, Cu): 25 A
• Rated Current (Tap-off Line, Al): 20 A
• Rated Voltage (AC): 1000 V
• Rated Voltage (DC): 1500 V
• Number of Main Connections: 1 input / 1 output
• Number of Tap-off Connections: 4 outputs
• Mounting Type: DIN Rail (TH35) / Screw Mount
• Insulation Material: Polyamide (PA6)
• Conductor Material (Internal): Tin-plated Copper
• Color: Grey
• IP Rating: IP20
• Operating Temperature Range: -25°C to +70°C
• Standard Compliance: IEC 60947-7-1

Recommendations

For optimal performance, ensure proper torque settings when connecting conductors. Use appropriate cable lugs for aluminum conductors to prevent galvanic corrosion. This block is ideal for branch connections in main distribution systems.
