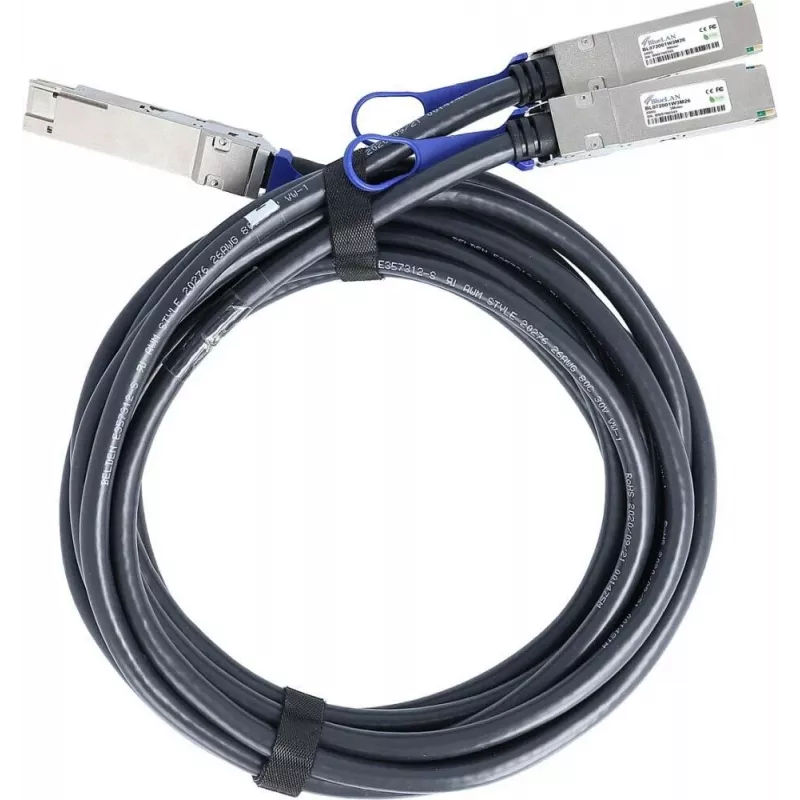

BlueLAN Compatível NVIDIA 980-9I98G-00H01A Cabo Breakout QSFP56 para 2x100Gb/s QSFP56 InfiniBand HDR Direct Attach Passivo 200Gb/s, 2 metros, AWG26

This BlueLAN compatible breakout cable is designed to connect NVIDIA 980-9I98G-00H01A network interfaces, providing a high-performance, cost-effective solution for data center and HPC environments. It is a passive copper Direct Attach Cable (DAC) that splits a single 200Gb/s QSFP56 port into two 100Gb/s QSFP56 ports, enabling flexible network topologies.

Advantages

Passive design ensures low power consumption and zero latency, making it ideal for high-density deployments. The breakout configuration allows efficient utilization of switch ports and simplifies cable management. With InfiniBand HDR support, it delivers the bandwidth required for demanding workloads.

Suitable for

• Data centers requiring high-speed interconnects
• High-Performance Computing (HPC) clusters
• Network aggregation and top-of-rack switching
• Compatible with NVIDIA 980-9I98G-00H01A and similar QSFP56 interfaces

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Type: Passive Copper
• Aggregate Data Rate: 200 Gb/s
• Breakout Data Rate: 2x 100 Gb/s
• Technology Standard: InfiniBand HDR
• Connector 1: QSFP56
• Connector 2: 2x QSFP56
• Cable Length: 2 Meter
• Wire Gauge: AWG26
• Compatibility: NVIDIA 980-9I98G-00H01A (Compatible)
• Hot Swappable: Yes
• Power Consumption: Low (Passive)
• Application: Data Center, High-Performance Computing (HPC), Network Interconnect
• Cable Material: Copper Twinax
• Electrical Interface Standard: SFF-8665
• Form Factor: QSFP56 to 2x QSFP56
• Supported Protocols: InfiniBand HDR, Ethernet (200GbE)

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 and InfiniBand HDR. This cable is a reliable and economical choice for expanding your network infrastructure.
