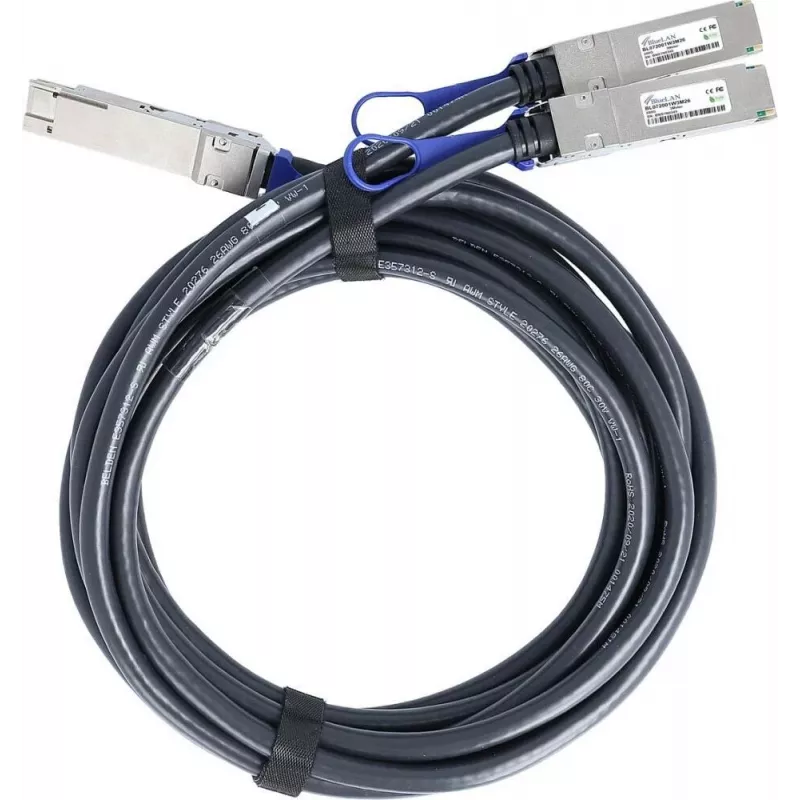

BlueLAN Compatível NVIDIA 980-9I98M-00V02A Cabo Breakout QSFP56 para 2x100Gb/s QSFP56 InfiniBand HDR Direct Attach Passivo 200Gb/s, 3 metros, AWG26

The BlueLAN 980-9I98M-00V02A-BL is a high-performance passive copper direct attach breakout cable designed for demanding data center and high-performance computing (HPC) environments. It provides a cost-effective and reliable solution for connecting 200Gb/s QSFP56 ports to two 100Gb/s QSFP56 ports, supporting InfiniBand HDR (High Data Rate) protocol. This cable is an OEM compatible alternative to NVIDIA 980-9I98M-00V02A, ensuring seamless integration with existing infrastructure.

Advantages

This breakout cable offers ultra-low power consumption, hot-swappable capability, and a compact design that simplifies cable management. The passive copper construction ensures signal integrity over the 3-meter length with AWG26 wire gauge, making it ideal for short-range interconnects within racks or between adjacent racks. It eliminates the need for external power, reducing overall system power draw and heat generation.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• InfiniBand HDR networks
• Network aggregation and breakout applications

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Cable Configuration: Breakout Cable (1 to 2)
• Aggregate Data Rate: 200 Gb/s
• Connector 1: QSFP56
• Connector 2: 2x QSFP56
• Technology Standard: InfiniBand HDR
• Cable Length: 3 Meters
• Wire Gauge: AWG26
• Cable Design: Passive Copper
• Electrical Interface: Copper
• Protocol Support: InfiniBand
• Hot-Swappable: Yes
• Power Consumption: Ultra-low

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP56 ports. This cable is designed for use with NVIDIA/BlueLAN networking equipment and other standards-compliant InfiniBand HDR switches and adapters. Always handle with care to avoid damage to connectors.
