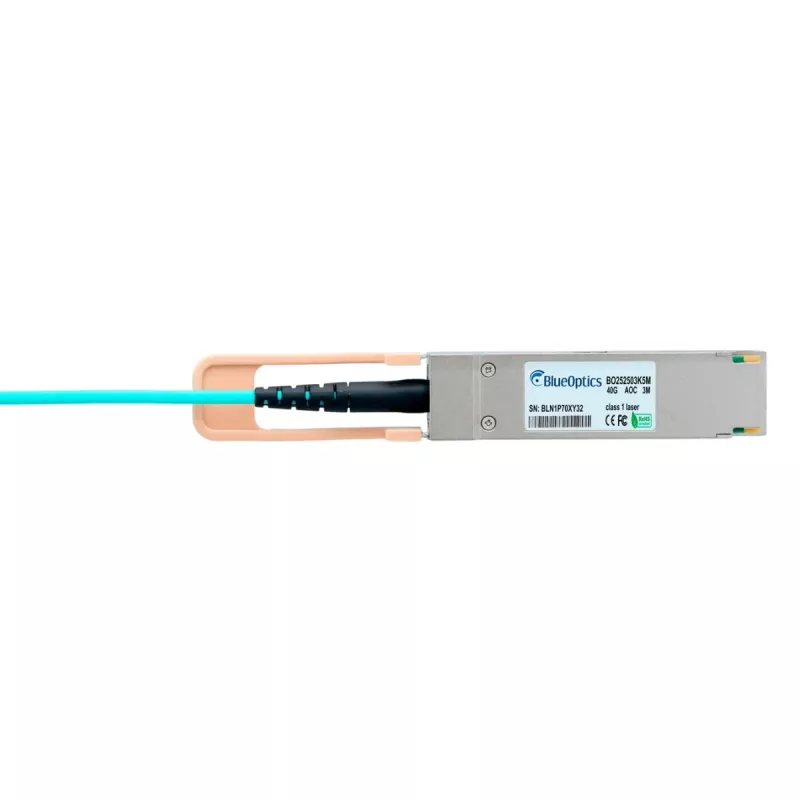

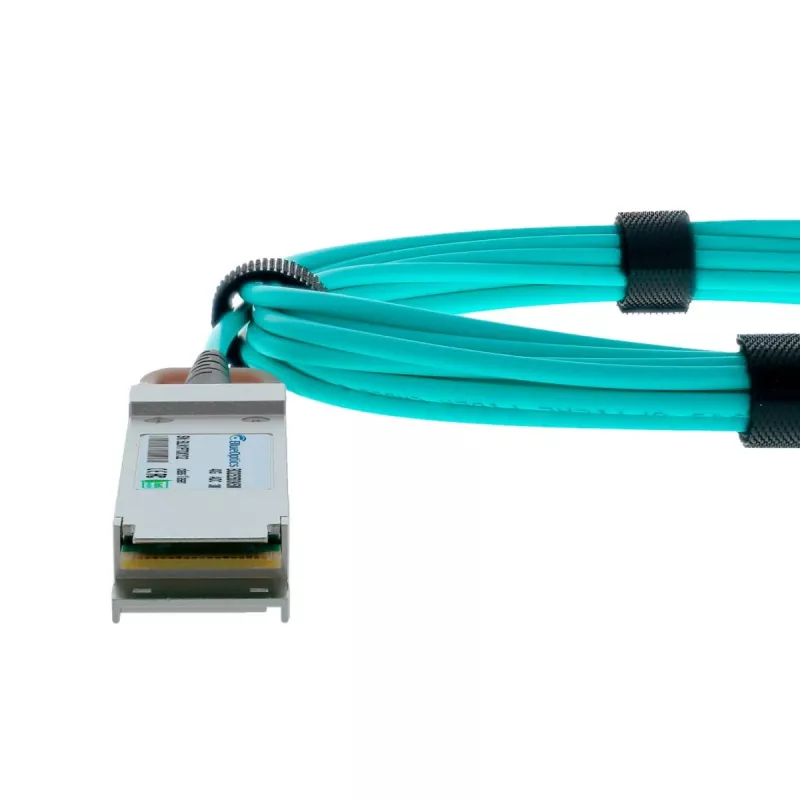

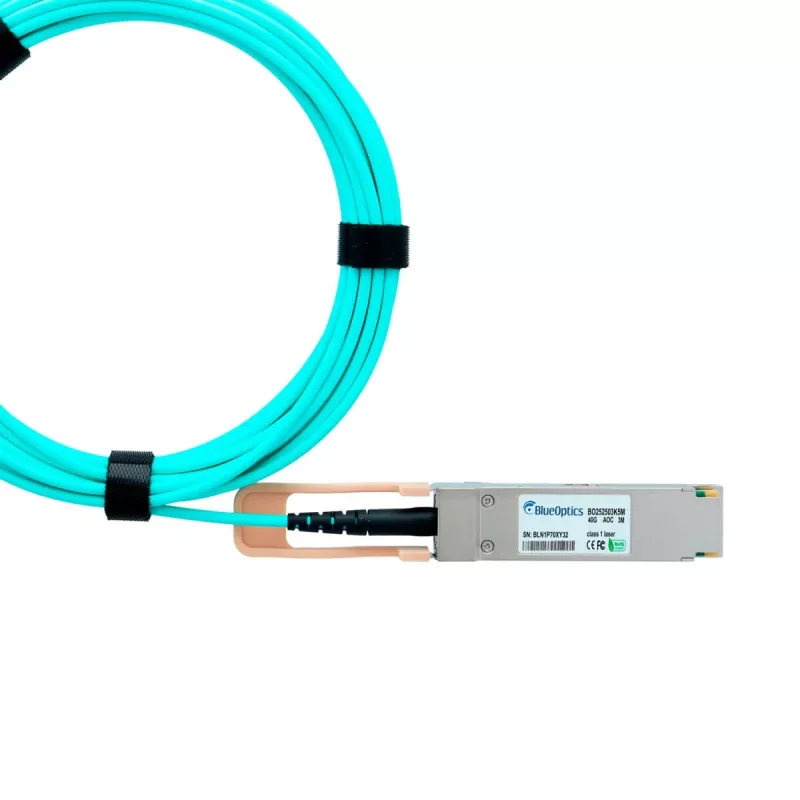

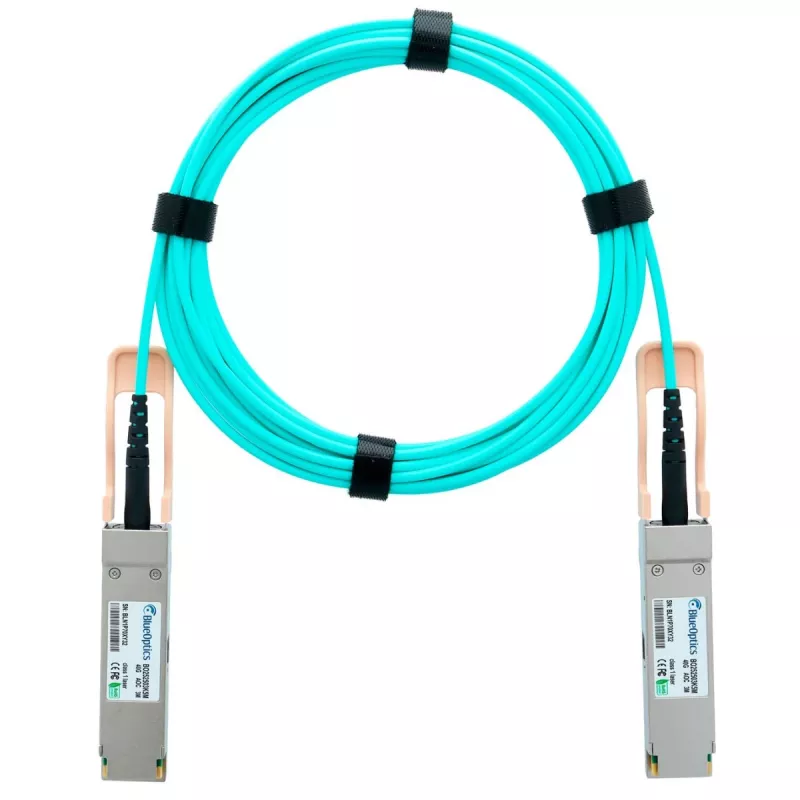

BlueOptics BO252503K30M Ruckus 40G-QSFP-QSFP-AOC-3001 Cabo ótico ativo compatível (AOC) QSFP+ 30m

The BlueOptics BO252503K30M is a high-performance Active Optical Cable (AOC) designed for 40 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 40G-QSFP-QSFP-AOC-3001, providing a reliable and cost-effective solution for data center and enterprise networking applications. With a length of 30 meters, this QSFP+ cable supports data rates up to 41.2 Gbps and features hot-pluggable connectors for easy installation.

Advantages

This AOC cable offers significant advantages over traditional copper cables, including longer reach, lighter weight, and immunity to electromagnetic interference. It consumes less than 1.3 W per end, making it energy-efficient. The cable supports Digital Diagnostics Monitoring (DDM) for real-time performance monitoring.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Ruckus networking equipment

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gigabit Ethernet (40GBASE-SR4)
• Max Data Rate: 41.2 Gbps (4x 10.3125 Gbps)
• Cable Length: 30 meters (98.4 feet)
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Channels: 4 Transmit / 4 Receive
• Power Consumption: < 1.3 W per end
• Supply Voltage: 3.3 V
• Hot-Pluggable: Yes
• DDM/DOM Support: Yes
• Standards: MSA Compliant, IEEE 802.3ba
• Certifications: RoHS, CE, FCC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: LSZH (Low Smoke Zero Halogen)

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This cable is ideal for short to medium range 40G links within racks or between adjacent racks.
