BOARD MET ST10 1230 1200X1000X300MM IP66

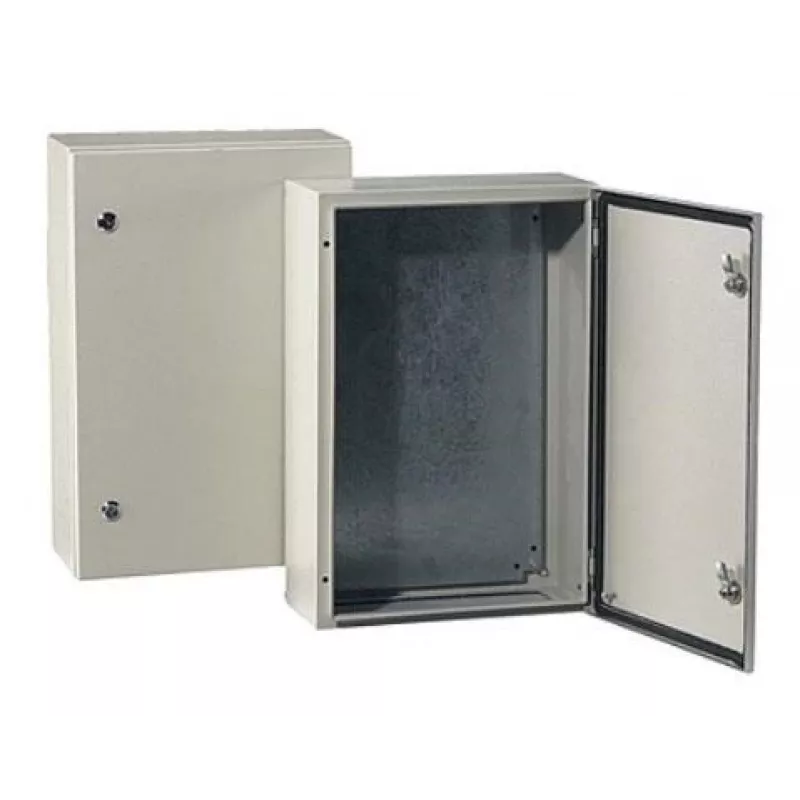

The BOARD MET ST10 1230 is a robust wall-mounted electrical enclosure designed for industrial control, automation, power distribution, and telecommunications applications. Manufactured from high-quality sheet steel with a powder-coated finish in RAL 7035 light grey, this enclosure offers exceptional durability and protection against harsh environments.

Advantages

With an IP66 ingress protection rating and IK10 impact resistance, the ST10 1230 provides superior protection against dust, water jets, and mechanical impacts. The included galvanized steel mounting plate and removable gland plate simplify installation and cable management. The polyurethane gasket ensures a reliable seal, while the quarter-turn lock with double-bit insert offers secure closure.

Suitable for

• Industrial control systems
• Automation equipment
• Power distribution panels
• Telecommunications infrastructure

Key specifications

• External dimensions (H x W x D): 1200 x 1000 x 300 mm
• Material: Sheet steel, body thickness 1.25 mm, door thickness 1.5 mm
• Finish: Powder-coated, RAL 7035 light grey
• Ingress protection: IP66
• Impact resistance: IK10
• Door opening angle: 130 degrees
• Operating temperature: -25°C to +60°C
• Humidity: 5% to 95% non-condensing
• Internal volume: Approximately 360 liters
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper grounding and use appropriate cable glands for the intended application. The enclosure is suitable for both indoor and outdoor use where IP66 protection is required.
