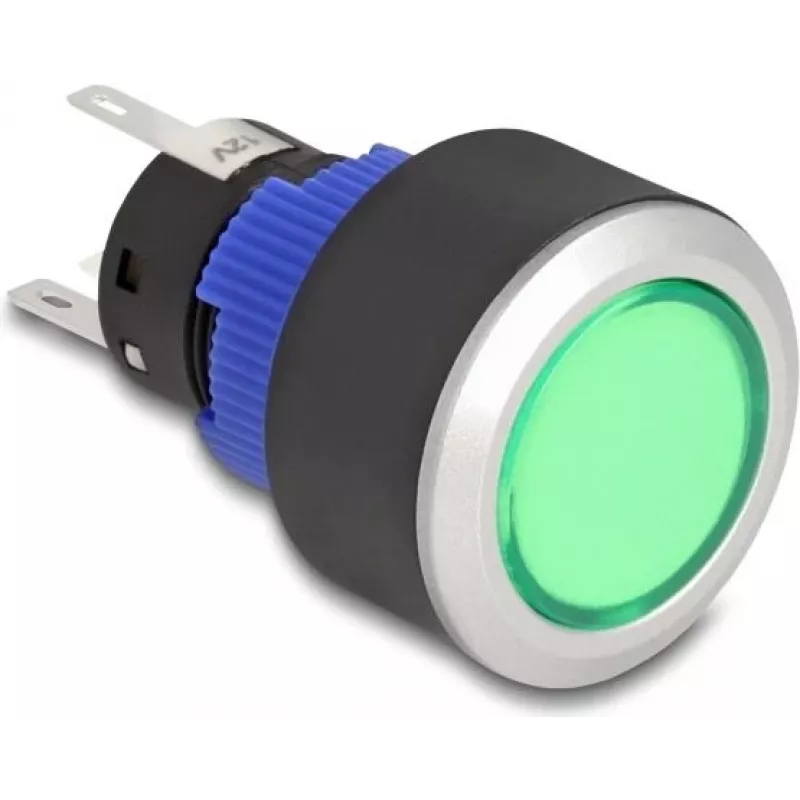

Botão de pressão DELOCK 22048 22 mm, montagem em painel, 5 ligações de solda

DELOCK Push Button 22048 is a 22 mm panel-mount switch designed for integration into control panels and electronic enclosures. The push button features five solder terminals that provide stable electrical connections and allow straightforward wiring for common switching configurations. Its panel-mount design ensures a compact footprint while offering a tactile interface for user input and equipment control.

Advantages

The switch provides a compact 22 mm diameter suitable for standard panel cutouts and offers five solder terminals to support reliable soldered connections and flexible wiring options. The robust panel-mount construction ensures stable mechanical installation, and the solder terminals reduce accidental disconnection compared to push-on connectors. The design is compatible with typical control and signal circuits used in industrial and consumer equipment.

Suitable for

• User input switches on control panels
• Manual control in industrial and laboratory equipment
• Switching low-voltage signal and control circuits
• Integration into custom enclosures and instrument panels

Key specifications

• Mounting type: panel mount (22 mm cutout diameter)
• Actuator size: 22 mm diameter
• Terminal type: 5 solder terminals
• Contact arrangement: multi-terminal configuration for common switching layouts
• Mounting depth: suitable for standard panel thicknesses (confirm with panel dimensions before installation)
• Operating method: momentary or latching depending on switch variant (verify mechanical action before use)

How to use

Prepare a 22 mm diameter cutout in the panel and ensure the mounting surface is free of burrs. Insert the push button from the front of the panel and secure it according to the mounting mechanism provided by the switch. Solder wires to the five solder terminals using suitable soldering techniques and appropriate wire insulation. Verify solder joints for electrical continuity and mechanical strength. After wiring, test the switch function within the actual control circuit at low power to confirm correct operation before applying full operating voltage or integrating into live equipment.

Recommendations

Use appropriate soldering temperature and flux to avoid thermal damage to the terminals. Match the switch contact type and wiring arrangement to the control circuit requirements. For safety, disconnect power before soldering and performing installation. If the application involves higher currents or voltages than typical signal levels, verify that the switch contact ratings and insulation meet the system requirements.
