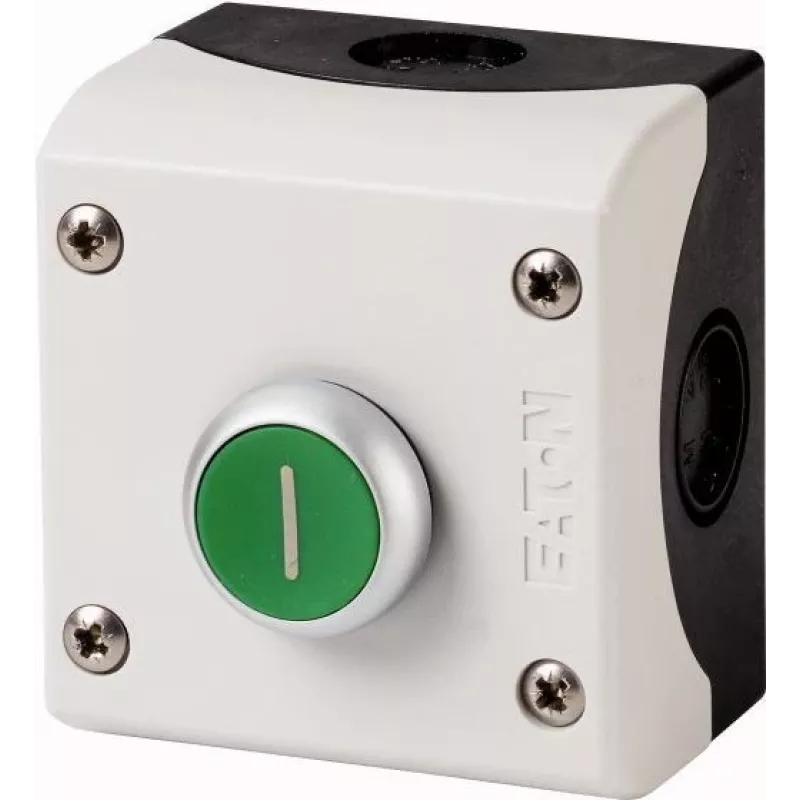

Botão de pressão Eaton M22-D-G-X1/KC11/I painel cinzento, 1NO+1NC, momentâneo, 22,5mm, IP66/IP67/IP69K 216522

Industrial pushbutton from Eaton's M22 series, built for reliable control in demanding environments. The flush momentary actuator in grey combines one normally open and one normally closed contact, offering versatile switching for automation tasks. Its front protection rating of IP66, IP67, and IP69K ensures resilience against dust, water, and high-pressure washdowns, making it a dependable choice for machine builders and panel integrators.

Advantages

The M22-D-G-X1/KC11/I delivers exceptional durability with a mechanical life exceeding five million operations and an electrical life over 500,000 cycles. The 22.5 mm mounting diameter fits standard industrial cutouts, and screw terminals provide secure, maintenance-friendly wiring. The grey bezel blends seamlessly into control panels, while the momentary action returns automatically after release, preventing accidental latching. Certified to IEC/EN 60947 and VDE 0660, it meets rigorous safety and performance standards.

Suitable for

• Machine control panels in food and beverage processing where washdown resistance is critical
• Conveyor systems and material handling equipment requiring frequent actuation
• Outdoor installations exposed to weather, thanks to NEMA 4X and 13 ratings
• Automotive and packaging lines needing compact, high-reliability pushbuttons
• Retrofit projects replacing legacy 22 mm control devices

Key specifications

• Product type: Pushbutton, momentary, flush actuator
• Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
• Mounting diameter: 22.5 mm
• Front protection: IP66, IP67, IP69K; NEMA 4X, 13
• Rated insulation voltage: 500 V AC; impulse withstand: 6000 V
• Operating temperature: -25 °C to +70 °C
• Housing material: Plastic bezel; non-illuminated
• Terminals: Screw type

Recommendations

For optimal performance, pair this pushbutton with Eaton M22 contact blocks and LED elements if illumination is later required. Ensure panel thickness between 1–6 mm and torque the mounting nut to 1.2 Nm. Use ferrules on wire ends to maintain IP ratings and prevent strand breakage. Store in a dry environment within -40 °C to +80 °C when not installed.
