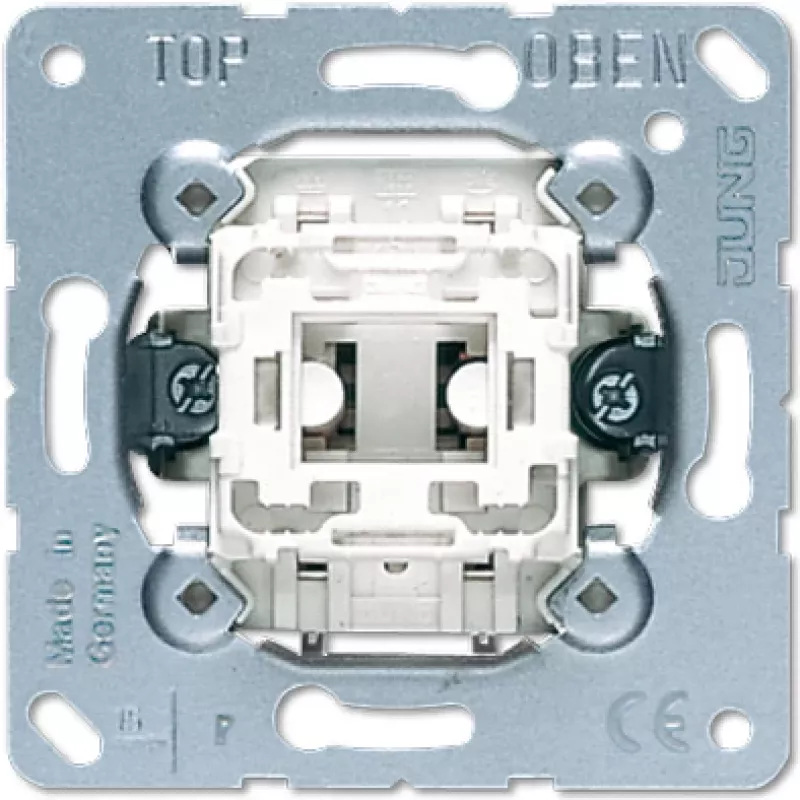

Botão de pressão JUNG 534 U, 1P, 250 V AC, 10 A, branco metálico

JUNG 534 U is a single-pole pushbutton switch intended for control and signaling tasks in residential and commercial installations. Rated for 250 V AC and a nominal current of 10 A, the device has a compact form factor for flush mounting and a metallic white finish that blends with modern interior fittings. The switch provides a straightforward manual switching function suitable for lighting circuits, door control systems, timers and other simple control applications where a reliable make/break contact is required.

Advantages

The JUNG 534 U offers a compact, durable construction compliant with common electrical installation requirements, ensuring reliable switching at up to 250 V AC and 10 A. Its single-pole design simplifies wiring in single-phase circuits and its metallic white finish provides a neutral aesthetic that integrates with various switch frames and cover plates. The flush-mount design reduces protrusion from the wall and supports standardized installation in junction boxes and switch frames.

Suitable for

Key specifications

How to use

Install the pushbutton switch into a compatible flush-mount frame or junction box according to local electrical codes. Connect the live conductor to the input terminal and the switched conductor to the output terminal, ensuring the circuit is de-energized before wiring. After mounting and securing the cover frame, restore power and test the switch operation by actuating the button to open and close the contact. For installations controlling inductive loads or motors, assess the need for additional protective components such as contactors or suppression devices to protect the switch contacts.

Recommendations

Use the switch only within its rated voltage and current limits (250 V AC, 10 A). For frequent switching of inductive loads or for loads exceeding the rating, use an appropriate relay or contactor to extend service life. Follow local wiring regulations and, if unsure, consult a qualified electrician for installation and load assessment.
