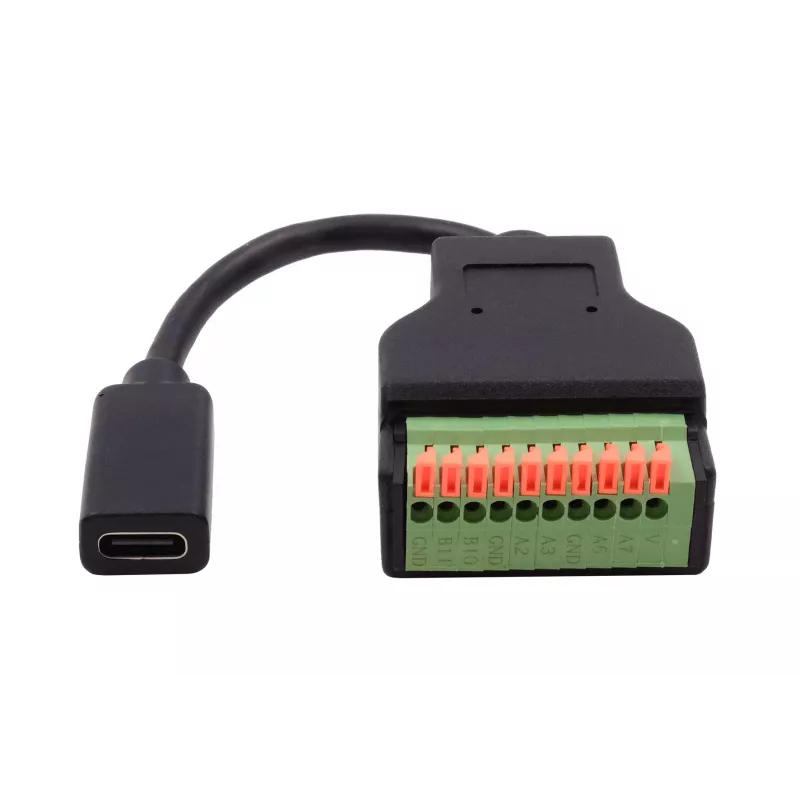

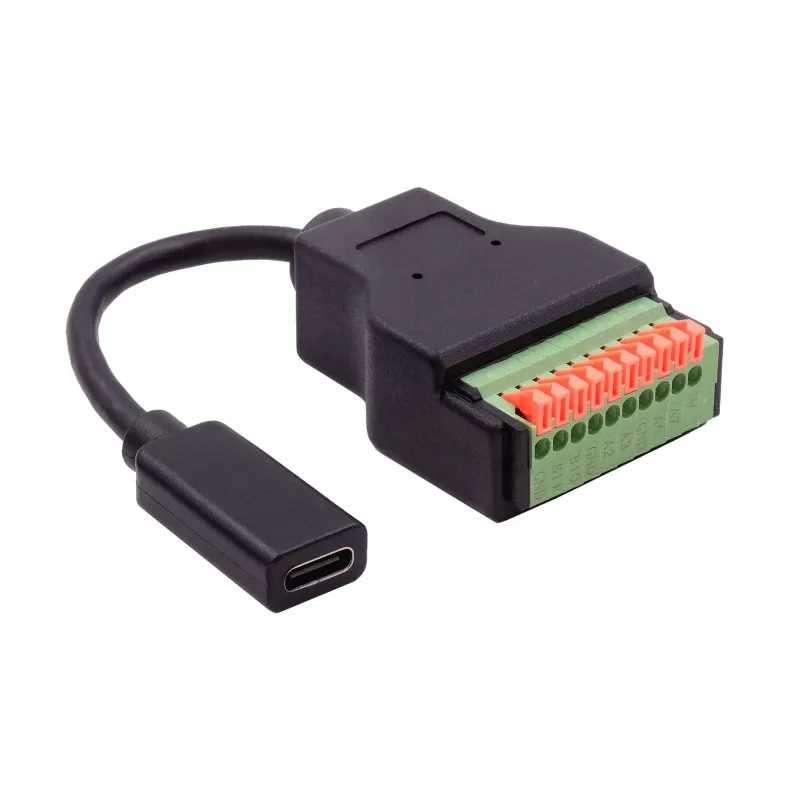

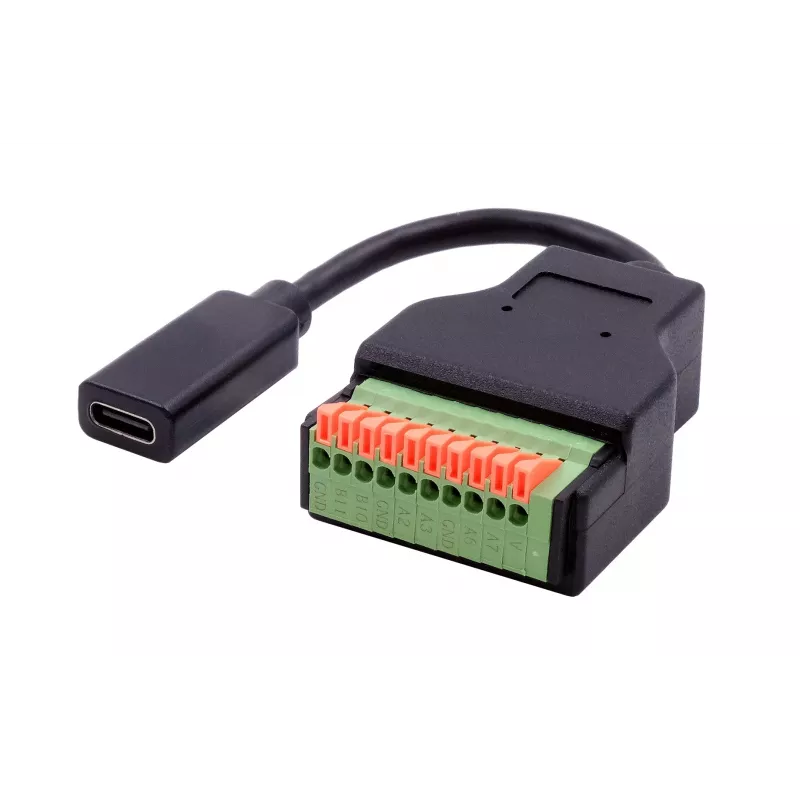

Cabo adaptador EXSYS EX-49124 conector fêmea USB-C para bloco de terminais de parafuso de 10 pinos com botão, USB 3.2 Gen 1, 15 cm

The EXSYS EX-49124 breaks out a USB-C connection to a 10-pin screw terminal block, making it simple to integrate USB 3.2 Gen 1 signals into industrial controls, embedded systems, and prototyping projects. Unlike standard cables, it includes a user-definable push button wired to the terminal block for reset or trigger functions.

Highlights

• USB-C female to 10-pin screw terminal block
• Supports USB 3.2 Gen 1 data rates up to 5 Gbps
• Integrated push button for custom control
• 15 cm cable length for flexible placement
• Backward compatible with USB 2.0 and 1.1

In daily use

The adapter provides access to USB data and power lines (VBUS and GND) through clearly labeled screw terminals. The push button can be wired to any terminal pin, enabling reset, boot mode, or other user-defined actions without additional hardware.

Full specifications

• Connector A: USB-C female
• Connector B: 10-pin screw terminal block
• USB standard: USB 3.2 Gen 1
• Data transfer rate: up to 5 Gbps
• Cable length: 15 cm
• Number of terminal pins: 10
• Terminal block type: screw-type
• USB-C reversibility: yes
• Backward compatibility: USB 2.0, USB 1.1
• Power delivery support: USB bus power (VBUS/GND breakout)

Final note

A practical breakout solution for integrating USB-C into custom electronics with the added convenience of an onboard push button.
