Cabo ativo USB 3.2 Gen.1 InLine, ficha USB-C para ficha USB-C, 10m

Stable data transfer over long distances:Integrated signal amplification ensures reliable USB 3.2 Gen.1 connections with up to 5 Gbps, even with cable lengths of up to 15 m.
High compatibility:Supports USB-C devices from a wide range of manufacturers, including docking stations, monitors, storage solutions, and peripherals.
Active electronics for consistent signal quality: Integrated repeater technology automatically compensates for signal loss and ensures consistently high transmission quality.
Flexible application options:Ideal for professional applications in IT, industry, or conference environments, plug & play without additional drivers.
Optional power supply:Variants with power supply provide additional stability for particularly long cable lengths or power-hungry USB-C devices.

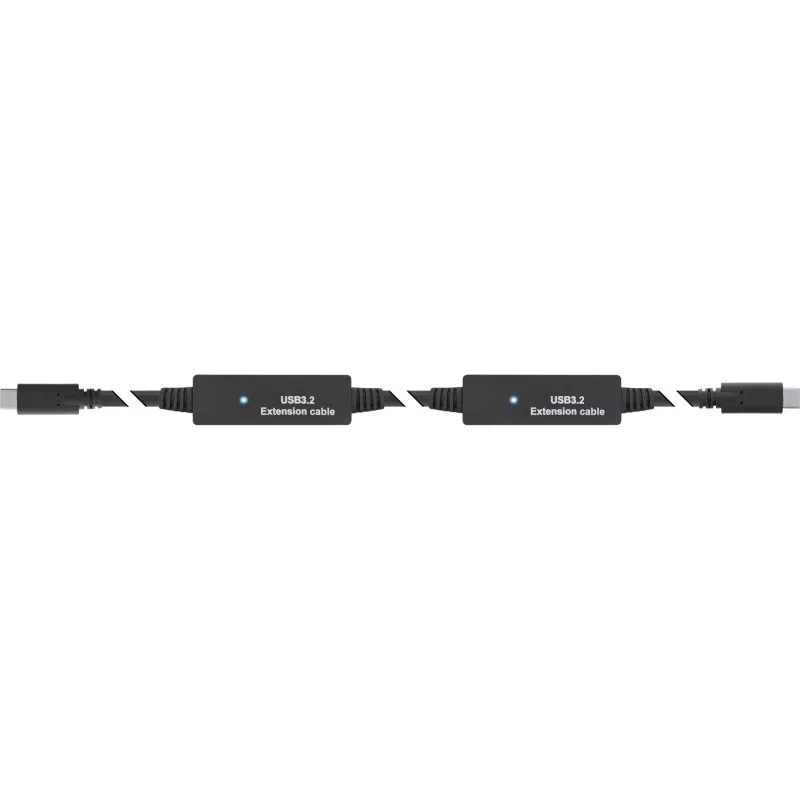

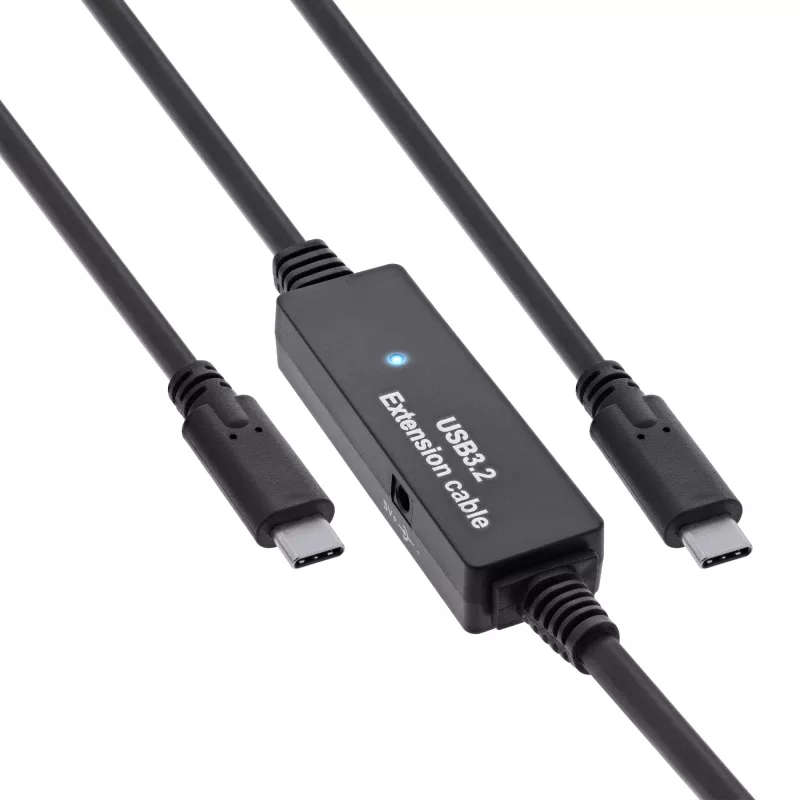

The InLine® USB 3.2 Gen.1 active cable with USB-C connectors on both ends was developed for professional use to reliably transfer data over longer distances. Thanks to the integrated electronics, the signal is actively amplified so that consistently high data quality is achieved even with cable lengths of up to 15 meters.
The cable supports a data transfer rate of up to 5 Gb/s, making it ideal for applications that require a stable and fast connection between two USB-C devices, such as docking stations, monitors, external hard drives, measuring devices, or audio/video components.
Thanks to the USB 3.2 Gen.1 standard, the cable remains backward compatible with older USB versions and offers maximum flexibility in use. Variants with an included power supply also enable the supply of energy-intensive devices and ensure constant performance even with high data loads.
The robust plastic housing and high-quality workmanship ensure a long service life.

Connectors:USB-C plug to USB-C plug
Standard:USB 3.2 Gen.1 (up to 5 Gb/s)
Signal processing:Integrated signal amplification (active)
Convenience:Hot-swap, plug & play compatible
Color:Black
Housing material:Plastic
Operating systems:Supports Windows 7 and above and macOS 10 and above
Note:Not cascaded (cannot be extended with additional active cables)

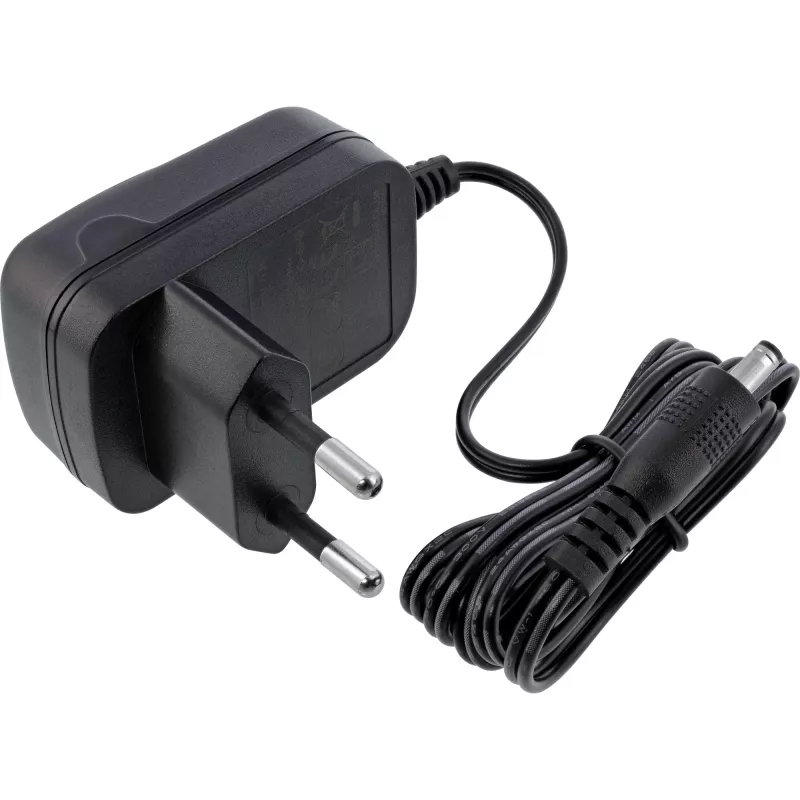

10 m and 15 m versions:Includes plug-in power supply for additional signal stability
Power supply:AC 100-240 V, 50-60 Hz, DC 5.0 V / 1.0 A (max. 5.0 W)

InLine USB 3.2 Gen.1 active cable, USB-C male to USB-C male, 10m. Cable length: 10 m. Connector 1: USB C, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black

How to use

Connect the USB-C male ends to the host device and the target USB-C device. If the cable is used at or above 10 m, connect the included external plug-in power supply to a mains outlet and to the cable’s power input to ensure stable signal transmission. The cable supports hot-plugging, so devices can be connected or disconnected while the system is running. Verify that the connected devices and operating system (Windows 7 / macOS 10 or newer) support USB 3.2 Gen.1 functionality.

Recommendations

For reliable high-speed transfers over 10 m, always use the included power supply. Do not attempt to cascade multiple active extensions; use a single active cable of the appropriate length for your setup.
