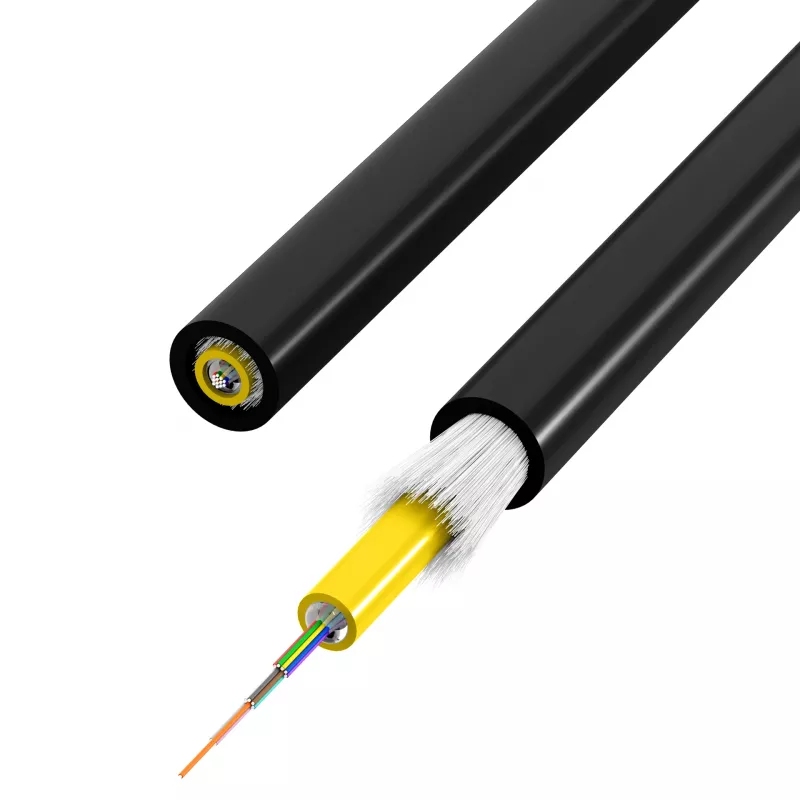

Cabo de fibra ótica exterior INFRALAN A-DQ(ZN)B2Y OS2 24E (1x24) Fca 2000N preto 5,8 mm G657A1, 24 fibras, resistência à tração 2000N, tubo solto, bainha PE A24S2F1

Outdoor fiber optic cable with 24 single-mode OS2 fibers, designed for direct burial and duct installation. The cable features a non-metallic loose tube construction with a UV-resistant PE outer sheath and a tensile strength of 2000 N, making it suitable for demanding outdoor environments.

Advantages

The cable complies with ITU-T G.657.A1 bend-insensitive fiber standard, ensuring reliable performance even in tight bends. It is water-blocked and crush-resistant, with an operating temperature range of -20°C to +70°C. The black jacket provides UV protection for long-term outdoor exposure.

Suitable for

• Direct burial installations
• Duct installations
• Outdoor backbone networks
• FTTx applications

Key specifications

• Fiber type: Single-mode OS2
• Fiber count: 24
• Loose tubes: 1 (24 fibers per tube)
• Outer diameter: 5.8 mm
• Tensile strength: 2000 N
• Crush resistance: 1000 N/10cm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm
• CPR fire class: Fca
• Water blocking: Yes
• UV resistance: Yes

Recommendations

This cable is ideal for long-distance outdoor fiber optic links where high tensile strength and environmental protection are required. Ensure proper installation practices for direct burial or duct placement.
