INFRALAN A-DQ(ZN)B2Y OM2 8G (1x8) Fca 2000N preto 5,8mm Cabo de fibra ótica exterior A8M2F1

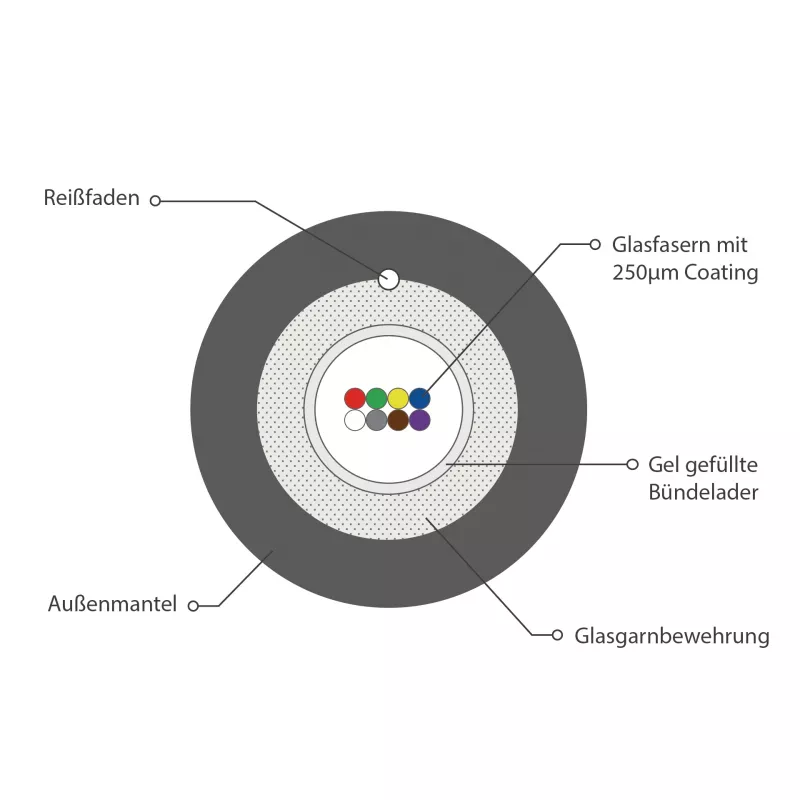

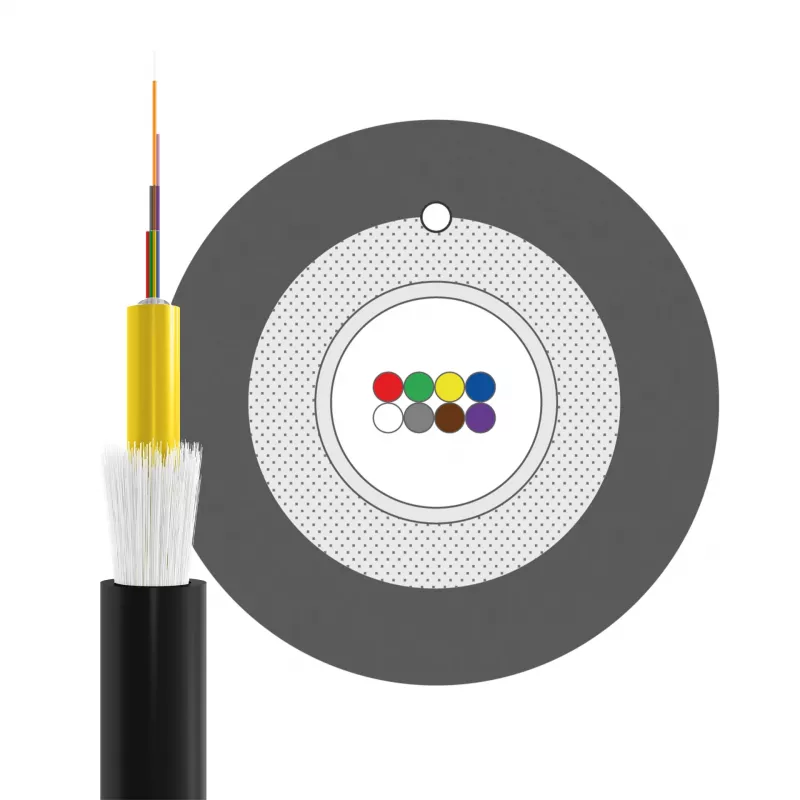

With a maximum tensile strength of 2000 N and an outer diameter of just 5.8 mm, this INFRALAN outdoor fiber optic cable is built for demanding installations. The A-DQ(ZN)B2Y OM2 8G (1x8) Fca 2000N black cable combines eight OM2 multimode fibers in a loose tube construction, protected by a black LSZH sheath.

Overview

This cable is engineered for outdoor use, featuring a non-metallic strain relief with aramid yarns and a crush resistance of 1000 N/10cm. It meets CPR fire rating Fca and operates reliably from -20°C to +70°C. The 8-fiber design supports high-density backbone cabling.

What stands out

• High tensile strength: 2000 N
• Compact 5.8 mm outer diameter
• 8 OM2 multimode fibers (1x8 loose tube)
• Black LSZH outer sheath
• CPR fire rating: Fca
• Outdoor-rated with non-metallic strain relief

Technical details

• Fiber type: OM2 multimode
• Number of fibers: 8
• Cable construction: Loose tube (1x8)
• Cable type designation: A-DQ(ZN)B2Y
• Outer sheath material: LSZH (Low Smoke Zero Halogen)
• Outer sheath color: Black
• Outer diameter: 5.8 mm
• Maximum tensile strength: 2000 N
• CPR fire rating: Fca
• Application environment: Outdoor
• Strain relief: Non-metallic (Aramid yarns)
• Attenuation @ 850nm: ≤ 3.5 dB/km
• Attenuation @ 1300nm: ≤ 1.5 dB/km
• Modal bandwidth @ 850nm: 500 MHz·km (OFL)
• Modal bandwidth @ 1300nm: 500 MHz·km (OFL)
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C
• Crush resistance: 1000 N/10cm
• Minimum bend radius (installation): 10 x outer diameter (58 mm)
• Minimum bend radius (operation): 20 x outer diameter (116 mm)

Our verdict

A robust outdoor fiber optic cable with high tensile strength and compact design, ideal for backbone installations where durability and space are critical.
