INFRALAN U-DQ(ZN)BH OM3 4G (1x4) Eca 2000N LSZH preto 5,8mm cabo de fibra ótica 54504.1D-E2

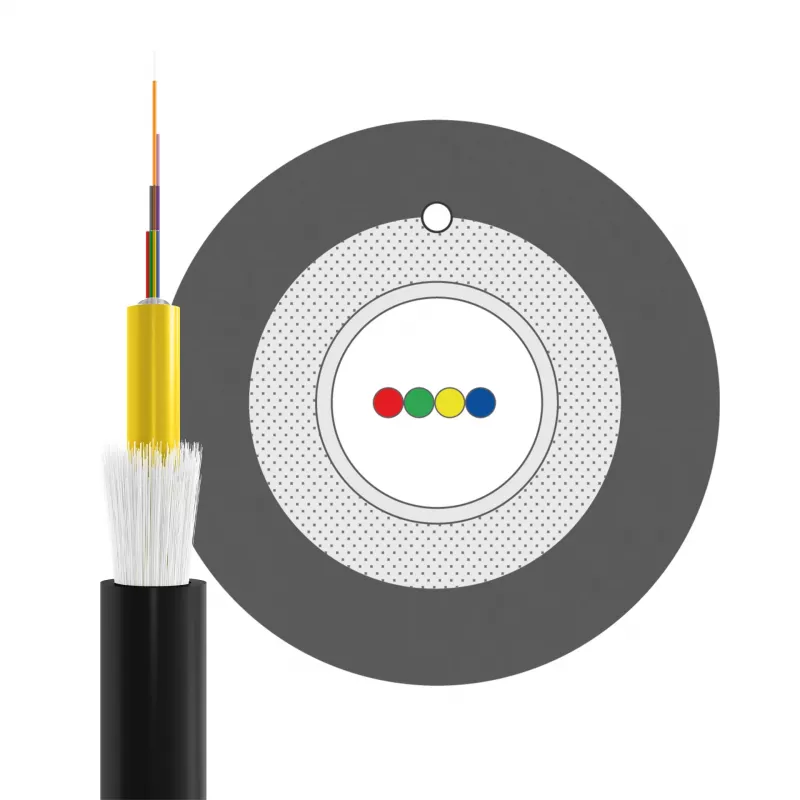

Engineered for demanding indoor/outdoor installations, this INFRALAN universal loose tube fiber optic cable delivers OM3 multimode performance with a tensile strength of 2000 N and a compact 5.8 mm LSZH black sheath.

Overview

The INFRALAN U-DQ(ZN)BH OM3 4G (1x4) Eca 2000N LSZH cable features 4 multimode fibers in a 1x4 arrangement. The non-metallic strain relief and LSZH (Low Smoke Zero Halogen) outer sheath ensure safety and durability in diverse environments. With an Eca fire reaction class, it meets essential safety requirements for building installations.

What stands out

• OM3 multimode fiber with 50/125 µm core/cladding diameter
• High bandwidth: 1500 MHz*km at 850 nm and 500 MHz*km at 1300 nm
• Low attenuation: ≤2.5 dB/km at 850 nm and ≤0.8 dB/km at 1300 nm
• Robust 2000 N tensile strength for secure installation
• LSZH black sheath, 5.8 mm outer diameter, suitable for indoor/outdoor use

Technical details

• Fiber type: OM3 multimode
• Fiber count: 4

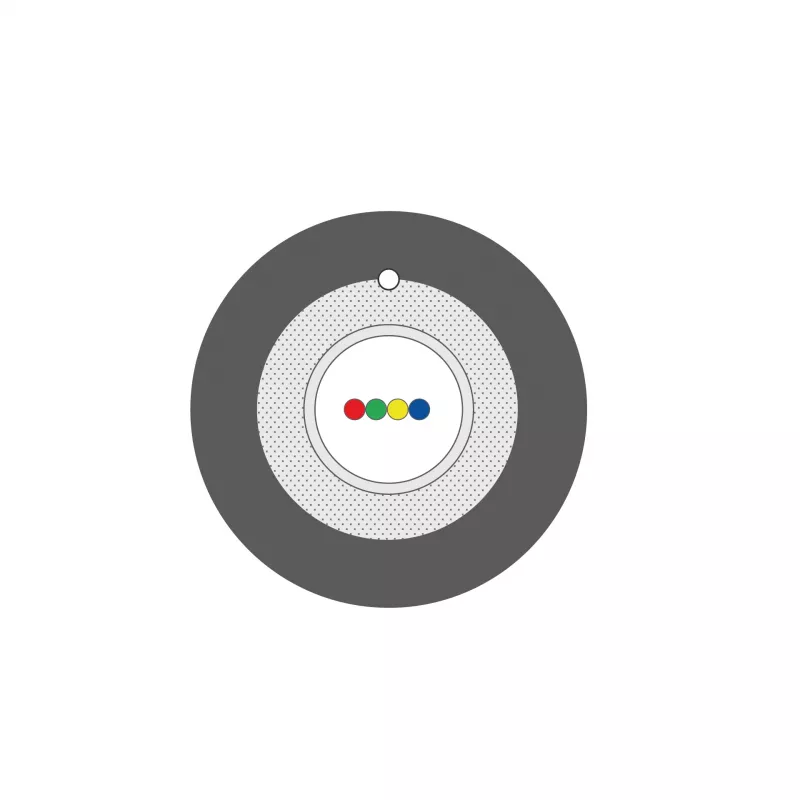

• Arrangement: 1x4 (1 loose tube with 4 fibers)

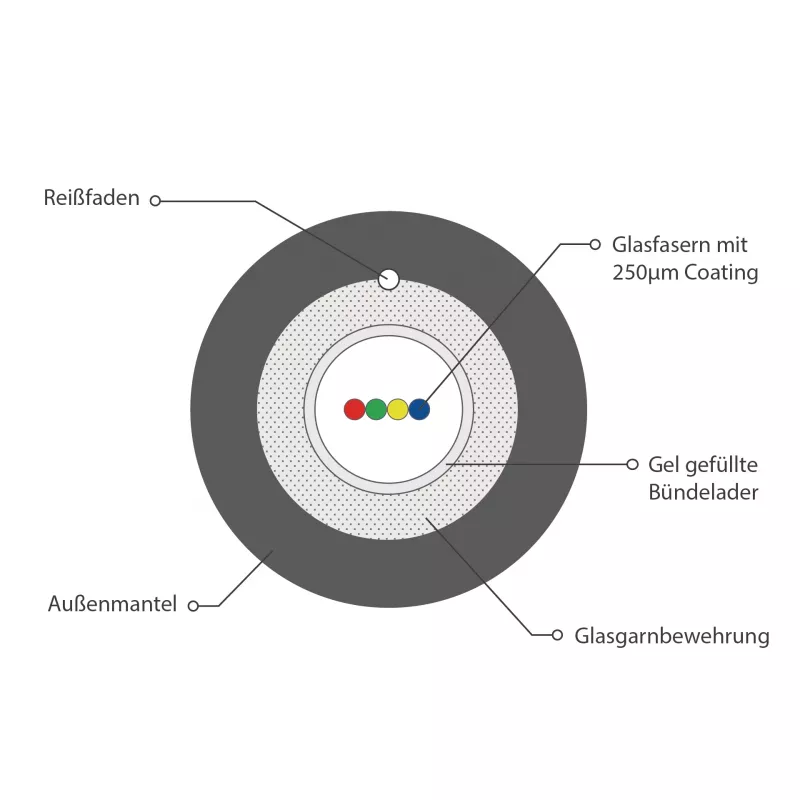

• Cable construction: U-DQ(ZN)BH
• Outer sheath: LSZH, black
• Outer diameter: 5.8 mm
• Tensile strength: 2000 N
• CPR fire reaction class: Eca
• Core/cladding diameter: 50/125 µm
• Bandwidth: 1500 MHz*km @ 850 nm, 500 MHz*km @ 1300 nm
• Attenuation: ≤2.5 dB/km @ 850 nm, ≤0.8 dB/km @ 1300 nm
• Strain relief: non-metallic

Our verdict

A reliable high-performance OM3 cable with excellent tensile strength and safety features, ideal for backbone and horizontal cabling in commercial and industrial settings.
