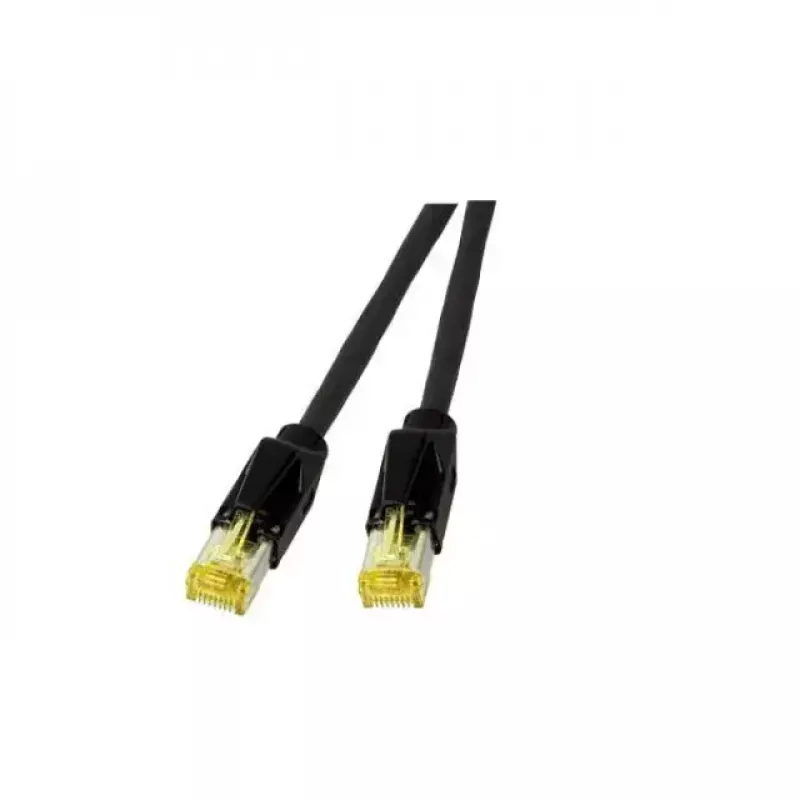

Cabo de rede EFB Elektronik Cat.6a RJ-45 5 m preto

The EFB Elektronik Cat.6A RJ-45 patch cable (5 m) provides 10 Gigabit Ethernet performance with a 500 MHz bandwidth. Constructed as S/FTP (screened foil twisted pair) with PiMF conductor arrangement and AWG27/7 wires, the cable uses shielded Hirose TM31 RJ45 plugs (IEC 60603-7-51) and is coded to TIA/EIA 568B. The jacket is low-smoke, halogen-free (IEC 60754-2) and flame-retardant (IEC 60332-1) with low smoke emission (IEC 61034). A mounted strain relief boot with latch protection is fitted to each connector.

Advantages

The cable supports data rates up to 10000 Mbit/s and wide frequency range up to 500 MHz for stable high-speed connections. S/FTP shielding and shielded Hirose TM31 RJ45 plugs reduce electromagnetic interference and crosstalk. Low-smoke, halogen-free and flame-retardant materials improve safety in confined installations. The fitted strain relief boots protect connectors and locking latches during use.

Suitable for

• 10 Gigabit Ethernet networks (10GBase-T)
• Server rooms, data centres and structured cabling
• Connections between switches, routers and network endpoints
• Environments requiring low-smoke, halogen-free cables

Key specifications

• Cable category: Cat.6A
• Length: 5 m
• Bandwidth: 500 MHz
• Data rate: up to 10000 Mbit/s (10GBase-T)
• Construction: S/FTP, 4 x 2 x AWG27/7, PiMF
• Connectors: 2 × Hirose TM31 RJ45 shielded (IEC 60603-7-51), TIA/EIA 568B
• Outer diameter: Ø = 5.9 mm
• Colours: Black
• Safety standards: IEC 60332-1 (flame retardant), IEC 60754-2 (halogen-free), IEC 61034 (low smoke)

How to use

Plug each RJ45 connector into the corresponding network ports on devices such as switches, routers or network interfaces. Ensure the latch clicks into place to secure the connection and avoid sharp bends or strain near the connectors. Route the cable avoiding sources of strong electromagnetic interference and secure it with cable ties or organisers as needed.

Recommendations

For optimal performance, use this Cat.6A cable for links up to 100 metres in structured cabling and maintain recommended bend radius (typically four times the cable diameter). When installing in shared pathways or near power lines, use proper segregation to minimise interference.
