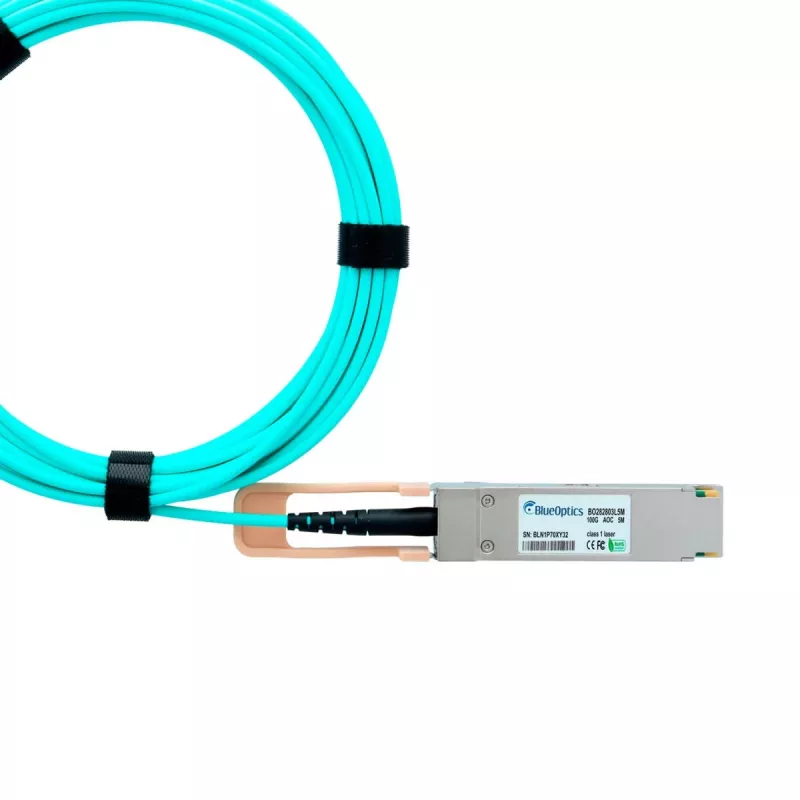

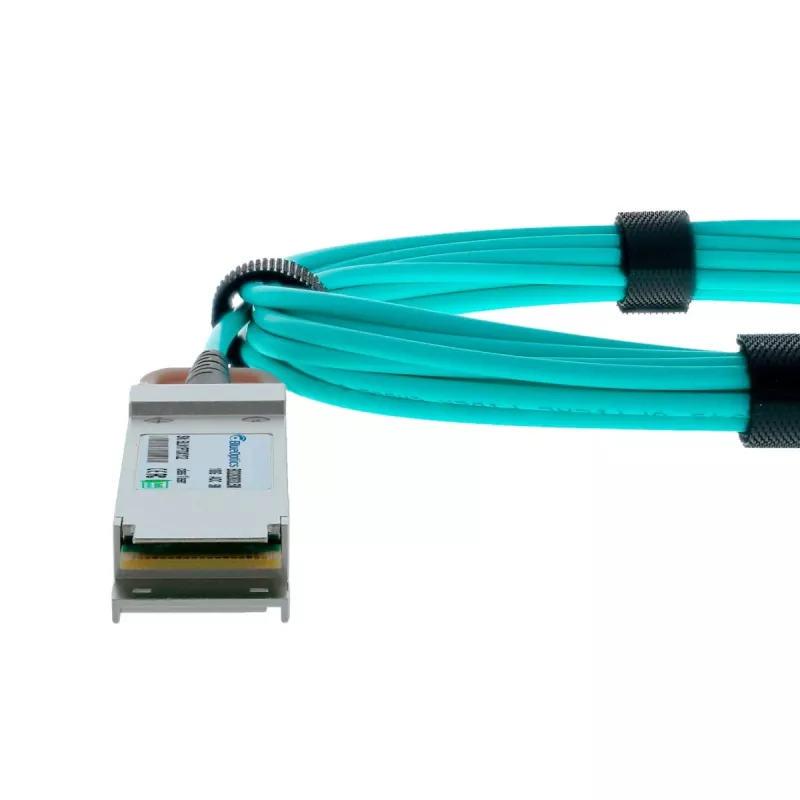

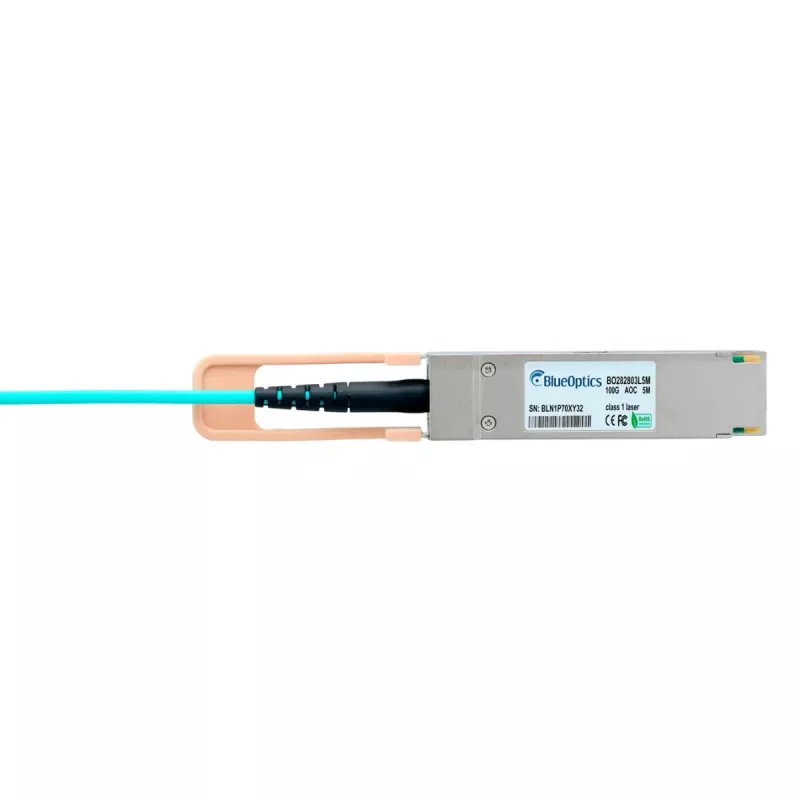

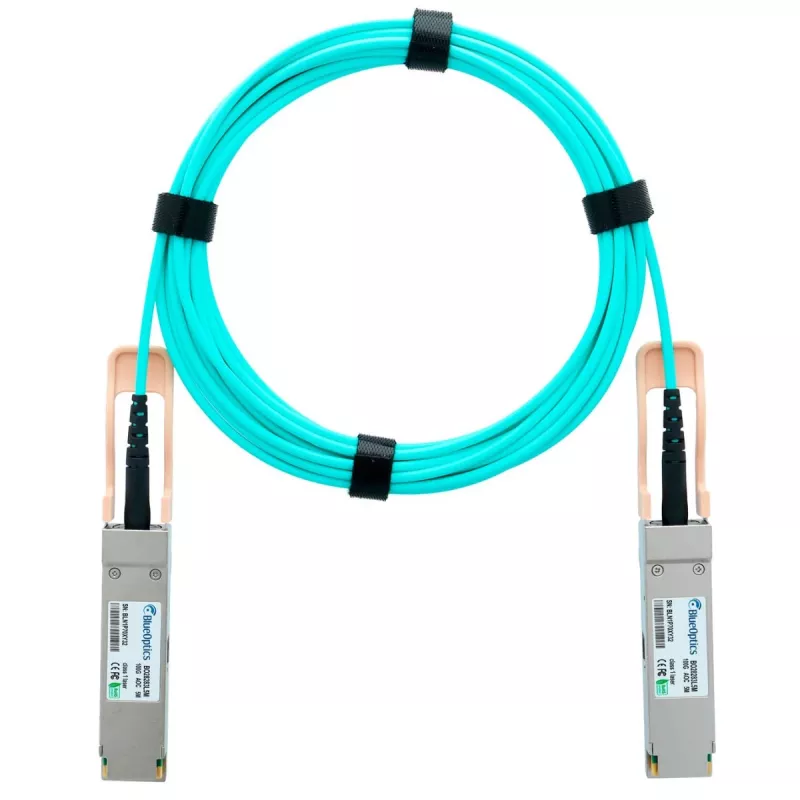

Cabo ótico ativo 100G QSFP28 BlueOptics 10m compatível com Ruckus 100G-QSFP-QSFP-AOC-1001

The BlueOPTICS BO282803L10M is a high-performance 100G QSFP28 Active Optical Cable (AOC) designed for reliable, high-speed data transmission over 10 meters. This cable is fully compatible with Ruckus 100G-QSFP-QSFP-AOC-1001, making it an ideal replacement or expansion solution for Ruckus networking equipment. It supports 100 Gigabit Ethernet (100GBASE-SR4) and InfiniBand EDR, ensuring seamless integration into data centers, high-performance computing (HPC) environments, and enterprise networks.

Advantages

This AOC offers low power consumption (<2.5W per end), hot-pluggable design, and digital diagnostics monitoring (DDM) for real-time performance tracking. Its multi-mode fiber (MMF) construction ensures high bandwidth and signal integrity over the specified distance. The cable is MSA compliant (SFF-8665) and RoHS certified, guaranteeing interoperability and environmental responsibility.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise network backbone links
• Ruckus networking equipment requiring 100G QSFP28 connectivity

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Length: 10 meters
• Fiber Type: Multi-Mode Fiber (MMF)
• Protocol Support: 100GbE, InfiniBand EDR
• Ethernet Standard: 100GBASE-SR4
• Power Consumption: <2.5W per end
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Pluggable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• MSA Compliance: SFF-8665
• RoHS Compliance: Yes
• EMI/EMC Compliance: FCC, CE

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is a direct replacement for Ruckus 100G-QSFP-QSFP-AOC-1001 and is also compatible with other MSA-compliant QSFP28 equipment. Store in a cool, dry environment within the specified storage temperature range.
