Cabo SAS slim InLine, SFF-8654 para U.2 SFF-8639 + alimentação SATA, 24Gb/s, 0,5m

Fast U.2 connection:Supports data rates of up to 24Gb/s per channel for reliable transmission of modern SSDs.
Sophisticated combination solution:Combines data and power supply with SFF-8639 and SATA power connectors – ideal for space-saving installations.
High compatibility:Suitable for SAS 4.0 controllers with SFF-8654 connection – efficiently connects U.2 SSDs.
Secure hold:Lockable slim SAS connector for a secure fit even with vibrations during server operation.
Optimized for server environments:Ideal for workstations, JBOD setups, RAID systems, and data centers.

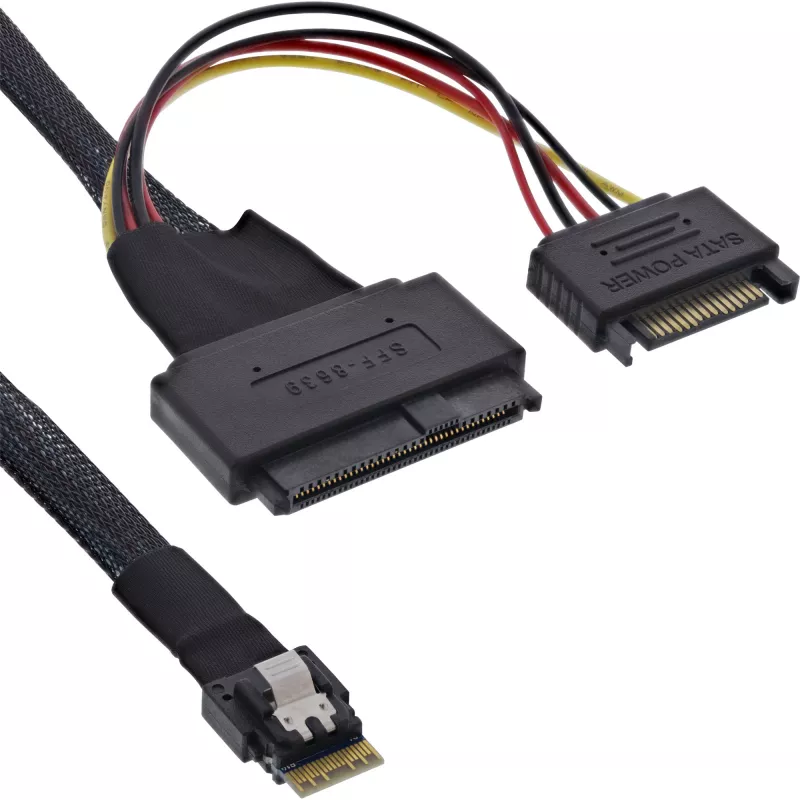

The InLine® Slim SAS cable with U.2 SFF-8639 connector and additional SATA power connector offers a powerful and sophisticated connection solution for use in professional storage environments. It connects a Slim SAS 4i connector (SFF-8654) to a U.2-compatible connector (SFF-8639) and a SATA power supply.
With support for up to 24Gb/s per channel, this cable is ideal for connecting modern U.2 SSDs to SAS controllers, HBA cards, or RAID systems. The combination of data and power connection saves space in the enclosure and enables particularly clean cabling—especially in cramped server configurations.
The lock on the Slim SAS connector ensures a secure hold even during continuous use and vibrations. Compliant with SAS 4.0 specifications, the cable ensures reliable performance in demanding applications in data centers, workstations, or storage solutions.

Interfaces:SFF-8654 (Slim SAS 4i) to SFF-8639 (U.2) + SATA power
Standard:SAS 4.0
Data rate:Up to 24Gb/s per channel
Feature:Combination connector with data and power connection
Type:Internal connection cable for U.2 SSDs
Variant:27644A = 0.5 m, 27644B = 1 m

InLine Slim SAS cable, SFF-8654 to U.2 SFF-8639 + SATA power, 24Gb/s, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654 male, Connector 2: SFF-8639 + SATA. Dimensions (WxDxH): 50 x 500 x 20 mm. Package width: 160 mm, Package depth: 190 mm, Package height: 20 mm

How to use

Install the cable by connecting the SFF-8654 male end to the controller or host adapter and the SFF-8639 connector to the U.2 SSD. Attach the SATA power connector to a compatible power source to supply the drive. Ensure connectors are fully seated and secured according to your chassis or drive carrier guidance. Route the cable to avoid sharp bends and interference with cooling airflow.

Recommendations

Use this 0.5 m Slim SAS cable for short internal connections inside servers or storage enclosures. For longer distances or different connector standards, select an appropriate cable or adapter. Verify controller and drive compatibility with SFF-8654 and U.2 (SFF-8639) interfaces before installation.
