Caixa de botão de pressão Rittal HD, aço inoxidável 1.4301, um furo, IP69/IP69K, montagem na parede, escovado 1681600

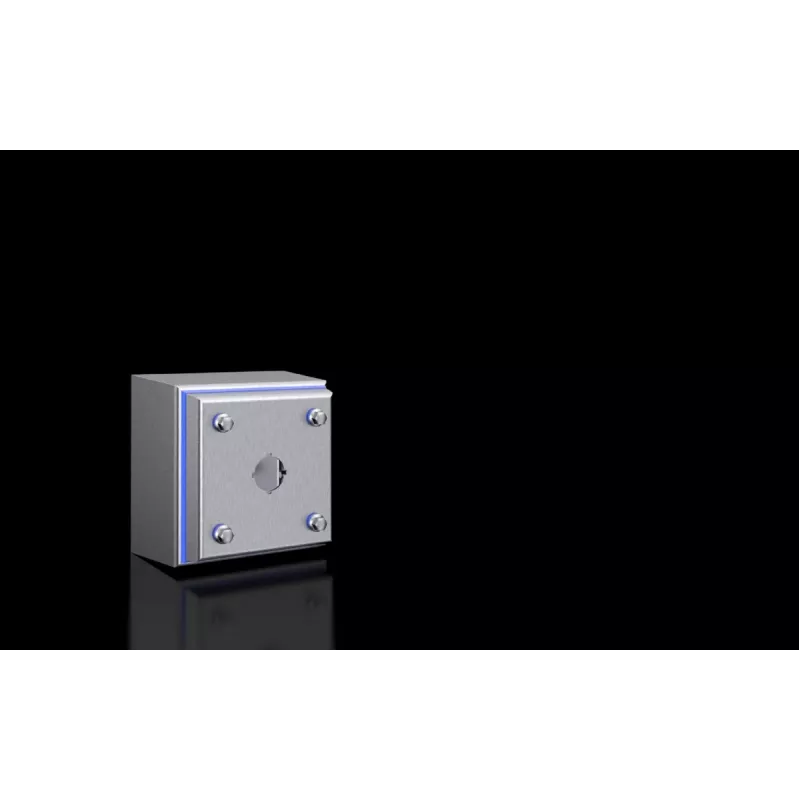

Push-button enclosure in Hygiene Design with brushed stainless steel 1.4301 (AISI 304), engineered for single command point installation in hygienic production areas. The crevice-free, screw-fastened cover and FDA-compliant silicone gasket simplify cleaning and resist high-pressure washdown.

Advantages

IP69 and IP69K protection withstands high-temperature, high-pressure cleaning. NEMA 4X and 13 ratings ensure corrosion resistance and indoor/outdoor durability. The grain 400 brushed surface with Ra < 0.8 µm reduces particle adhesion, while the 1.5 mm wall thickness provides robust mechanical strength.

Suitable for

• Food and beverage processing lines requiring regular washdown
• Pharmaceutical production with strict hygiene protocols
• Marine and offshore installations needing certified enclosures
• Chemical plants with aggressive cleaning agents

Key specifications

• Material: Stainless steel 1.4301 (AISI 304)
• Number of command points: 1 (single-hole)
• Ingress protection: IP69, IP69K
• NEMA rating: NEMA 4X, NEMA 13
• Surface finish: Brushed, grain 400, Ra < 0.8 µm
• Gasket: Silicone, FDA compliant
• Wall thickness: 1.5 mm (enclosure and cover)
• Mounting: Wall-mounted
• Operating temperature: -40 °C to +80 °C
• Approvals: cULus, EAC, Germanischer Lloyd, RINA, DNV, ABS, LR, BV
• Cable entry: No pre-drilled holes (requires cable glands)
• Cover fastening: Screw-fastened

Recommendations

Pair with Rittal HD cable glands and hygienic actuators to maintain the IP69K seal. For frequent washdown, verify silicone gasket condition during routine maintenance.
