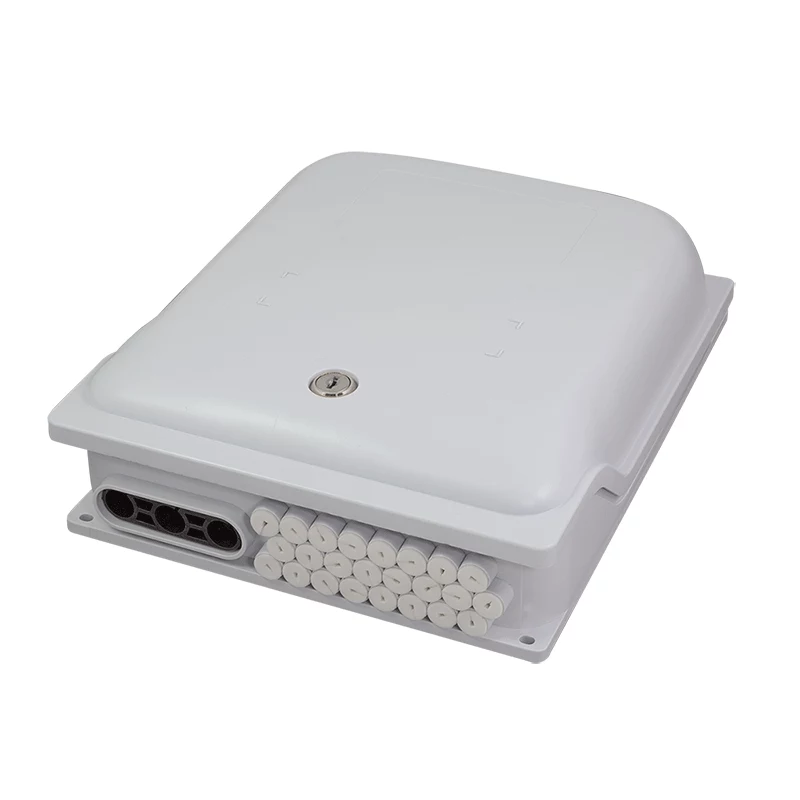

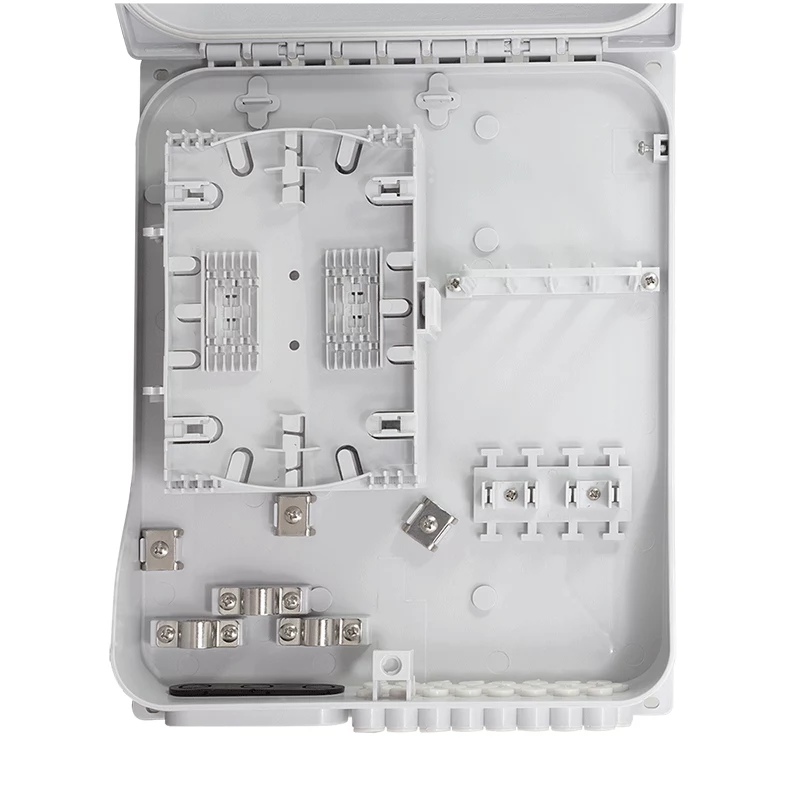

Caixa de distribuição FTTX LOGILINK, 96 fibras, 24x LC duplex ou SC simplex, sem equipamento, IP65, montagem na parede

High-density FTTX distribution box engineered for outdoor and indoor FTTH/FTTO networks, supporting up to 96 fibers with 24 adapter ports for LC duplex or SC simplex. The unloaded design allows complete customization of adapters and pigtails to match your network architecture.

Advantages

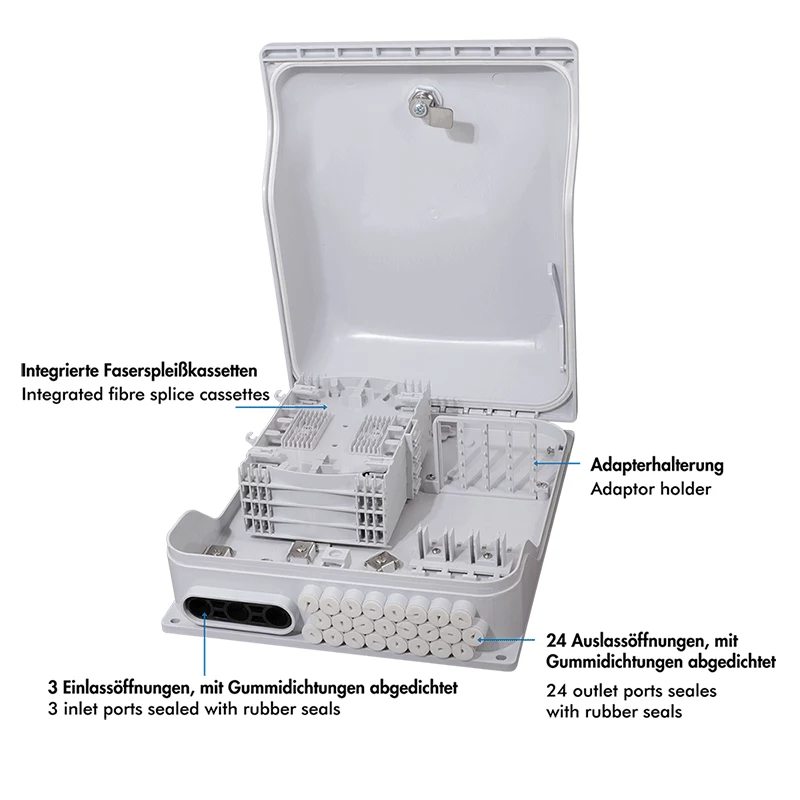

Robust PC+ABS construction with UV resistance and IK08 impact rating ensures long-term reliability in harsh environments. Integrated cable routing and strain relief simplify installation and maintenance. Key lock provides secure access, while the grey RAL 7035 finish blends seamlessly into any setting.

Suitable for

• FTTX, FTTH, and FTTO network deployments
• Outdoor wall-mount installations requiring IP65 protection
• High-density fiber distribution with up to 96 splices
• Network operators needing flexible adapter configuration

Key specifications

• Max fiber capacity: 96 fibers
• Adapter ports: 24x LC duplex or SC simplex (unloaded)
• Protection class: IP65
• Material: PC+ABS, grey RAL 7035

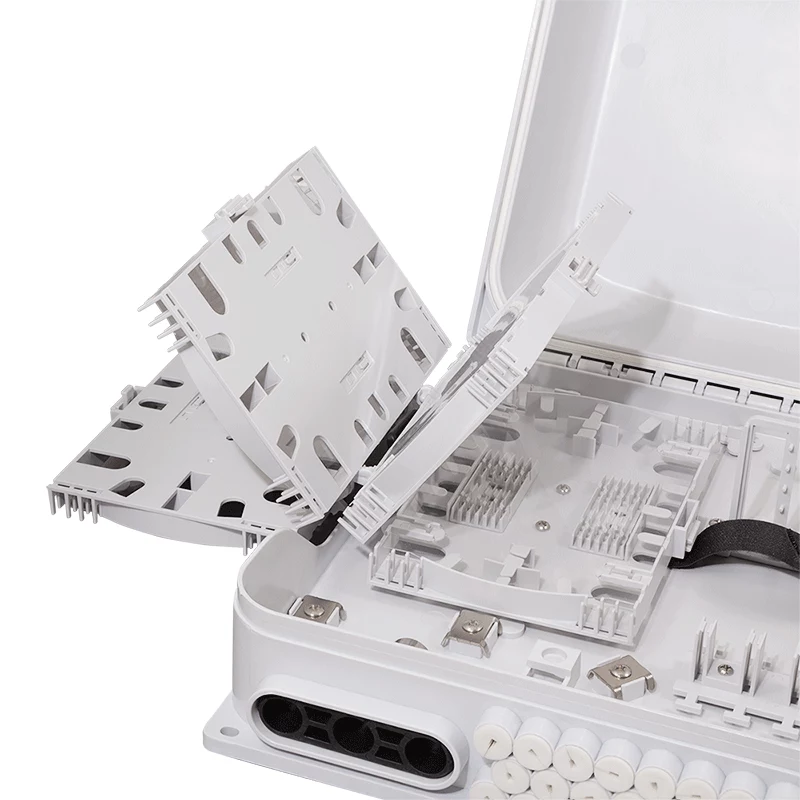

• Splice trays: up to 4 trays, 24 fibers per tray
• Cable entries: 2x M20, 2x M25, 8x 3-6mm drop cable ports
• Operating temperature: -40°C to +85°C
• Impact resistance: IK08
• Locking: key lock
• Mounting: wall mount

Recommendations

Ideal for telecom operators and installers seeking a versatile, weatherproof distribution point. Pair with compatible LC or SC adapters and pigtails to complete your fiber deployment.
