Caixa de parede Rittal HD em aço inoxidável 200 x 200 x 120 mm, IP66, escovado, Hygienic Design 1672.600

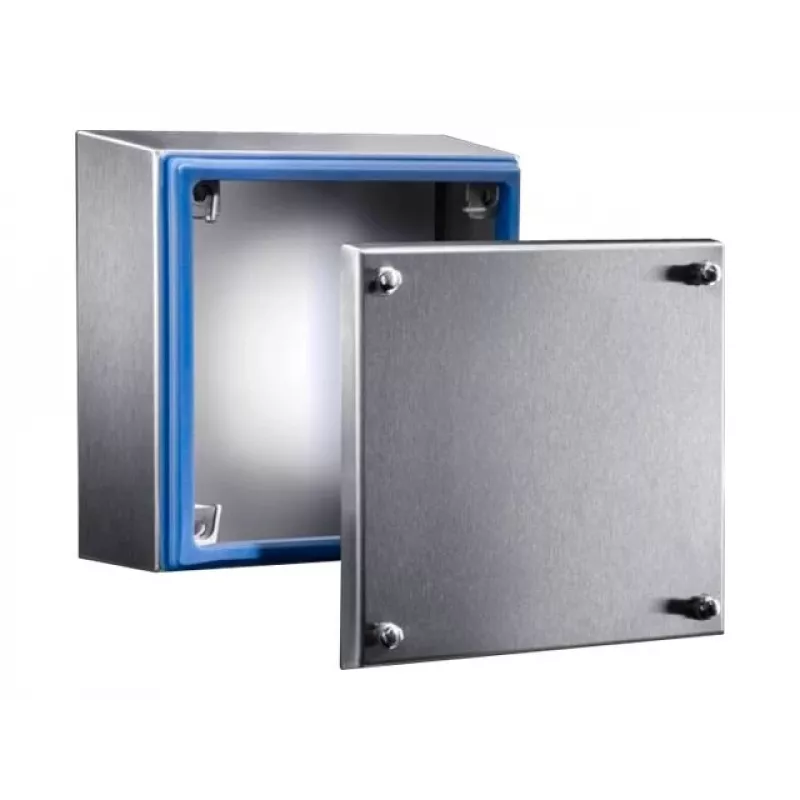

Industrial wall-mount enclosure crafted from stainless steel 1.4301 (AISI 304) with a brushed, grain 400 finish. Its hygienic design and IP66 protection make it ideal for demanding environments such as food processing, pharmaceutical production, and cleanrooms. The enclosure measures 200 x 200 x 120 mm and features a single hinged door with a quarter-turn lock and double-bit insert, silicone gasket, and a 130° opening angle. A zinc-plated sheet steel mounting plate is included for easy component installation.

Advantages

Corrosion-resistant stainless steel construction ensures long service life even in aggressive atmospheres. The smooth, brushed surface and hygienic design minimize dirt accumulation and simplify cleaning. IP66 and NEMA 4X ratings guarantee protection against dust, powerful water jets, and corrosion. The 130° door opening and removable door facilitate access and maintenance. Silicone gasket provides reliable sealing and resistance to temperature fluctuations and chemicals.

Suitable for

• Food and beverage processing equipment
• Pharmaceutical manufacturing and laboratory installations
• Cleanroom applications requiring high hygiene standards
• Outdoor or washdown areas with high humidity or chemical exposure
• Control and distribution systems in corrosive environments

Key specifications

• Dimensions (H x W x D): 200 x 200 x 120 mm
• Material: Stainless steel 1.4301 (AISI 304), brushed, grain 400
• Protection rating: IP66 / NEMA 4X
• Door: Single, hinged, 130° opening angle, quarter-turn lock with double-bit insert
• Gasket: Silicone
• Mounting plate: Sheet steel, zinc-plated
• Body thickness: 1.25 mm; door thickness: 1.5 mm
• Mounting type: Wall-mounted

Recommendations

Ideal for engineers and system integrators seeking a durable, hygienic enclosure for sensitive or washdown environments. Pair with appropriate cable glands and mounting accessories for a complete installation.
