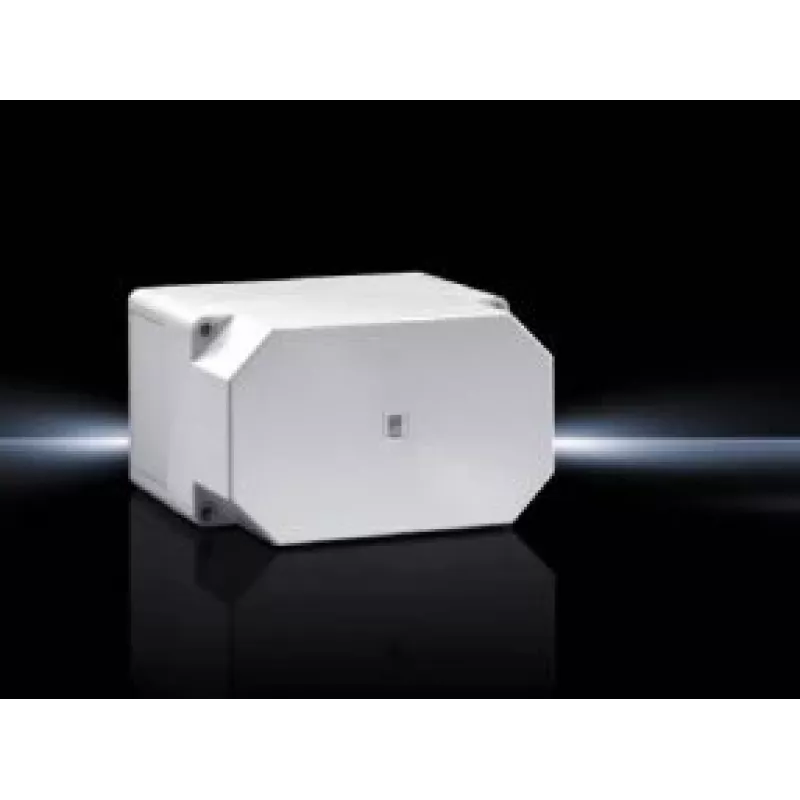

Caixa elétrica Rittal 9522.000, poliamida/policarbonato IP66, 254×165×180 mm

Rittal 9522.000 is an electrical enclosure with a polyamide body and a polycarbonate cover, providing IP66 protection. With external dimensions of 254 × 165 × 180 mm, the enclosure is suitable for housing small control components, terminal blocks and compact electronic modules. The fibre-glass reinforced polycarbonate construction ensures impact resistance while the combination of materials supports reliable protection against dust and powerful water jets for both indoor and outdoor installations.

Advantages

The enclosure combines a robust polyamide base with a transparent or grey fibre-glass reinforced polycarbonate cover for visual access or a concealed finish. Its IP66 rating ensures dust-tight sealing and protection from heavy water jets, and the compact external size makes it easy to mount in constrained spaces. The durable materials provide chemical and UV resistance suitable for demanding environments, and the design accommodates standard mounting and cable entry solutions used in small electrical and control applications.

Suitable for

Key specifications

How to use

Mount the enclosure on a flat surface using appropriate fasteners, taking into account the external dimensions and mounting points. Open the cover to install terminal blocks, DIN-rail adapters or small modules on the internal mounting surface. Use compatible cable glands or conduit entries to route power and signal cables through the enclosure while maintaining the IP66 seal. After wiring, check the gasket and cover fastening to ensure a dust-tight and water-resistant closure.

Recommendations

For best performance, select cable glands and mounting hardware that match the enclosure material and intended environmental conditions. If visual inspection of components is required, choose the transparent cover version; for concealed installations, use the grey cover. Periodically inspect gaskets and seals for wear and replace them if damaged to retain IP66 protection.
