Câmara térmica MILESEEY TR256A resolução IR 256x192 -20°C a 550°C

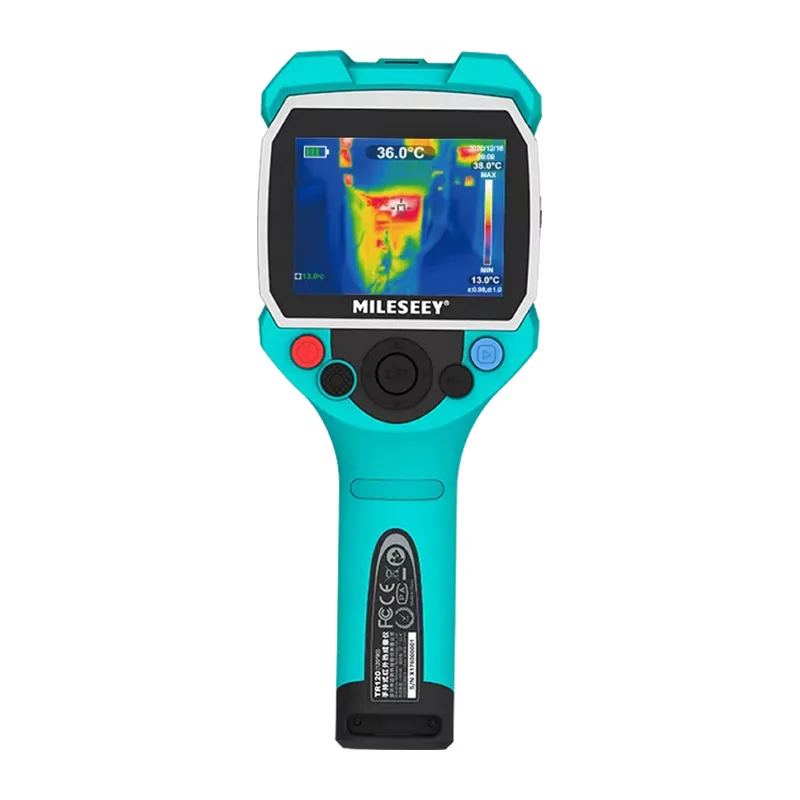

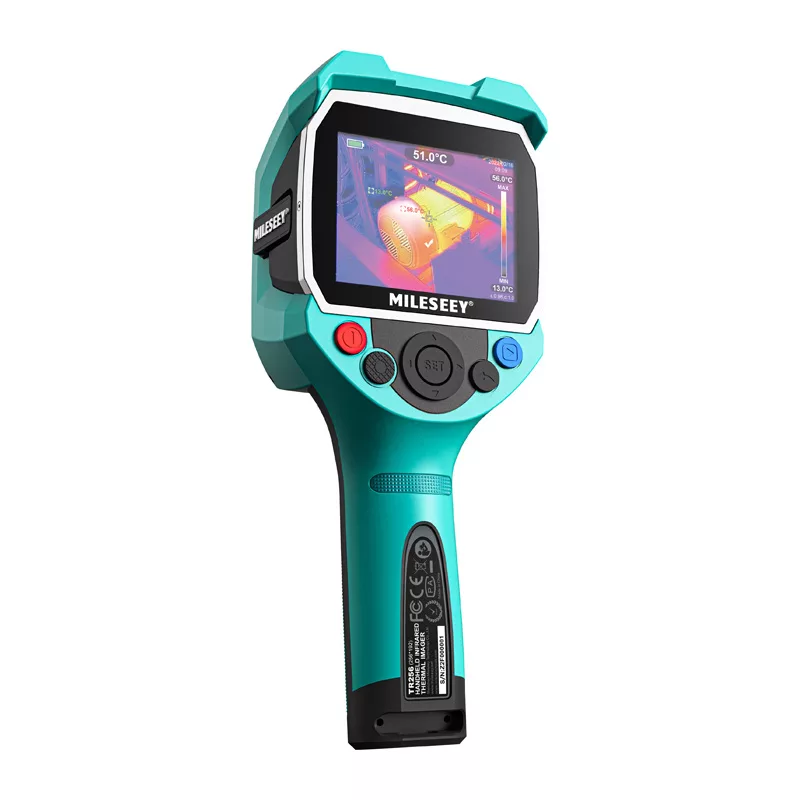

The MILESEEY TR256A is a professional handheld thermal imaging camera designed for electrical inspection, building diagnostics, HVAC, and industrial maintenance. With a high-resolution 256x192 infrared detector and a wide temperature range of -20°C to 550°C, it delivers accurate thermal data for troubleshooting and preventive maintenance. The 2.8-inch LCD display provides clear imagery, while the IP54 rating and 2-meter drop test ensure durability in demanding environments.

Advantages

High-resolution 256x192 IR sensor for detailed thermal images. Wide temperature measurement range from -20°C to 550°C with ±2°C or ±2% accuracy. Seven color palettes for enhanced visualization. Built-in 16GB storage for capturing and saving images. Long battery life of up to 9 hours for extended fieldwork. Rugged IP54-rated housing and 2-meter drop resistance.

Suitable for

• Electrical panel and component inspection
• Building envelope and insulation analysis
• HVAC system diagnostics
• Industrial mechanical and electrical maintenance
• Fire prevention and safety checks

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Accuracy: ±2°C or ±2% (whichever greater)
• Thermal Sensitivity (NETD): <50mK
• Frame Rate: 25 Hz
• Display: 2.8-inch LCD, 320x240 pixels
• Field of View: 56° x 42°
• Focus: Fixed focus
• Emissivity Adjustment: 0.01 to 1.00
• Color Palettes: 7 (White Hot, Black Hot, Iron Red, Rainbow, Rainbow HC, Hot Spot, Cold Spot)
• Internal Storage: 16GB eMMC
• Connectivity: USB Type-C
• Battery: Rechargeable 2600mAh Li-ion, up to 9 hours
• IP Rating: IP54
• Drop Test: 2 meters
• Laser Pointer: Yes
• Measurement Modes: Center spot, Hot spot tracking, Cold spot tracking

Recommendations

For optimal results, ensure the target's emissivity is set correctly. Use the laser pointer for precise targeting. Regularly charge the battery to maintain long field operation. Store in a dry, cool place when not in use.
