Chief CMA101W Suporte de projetor Acessório Placa de teto Metal Branco

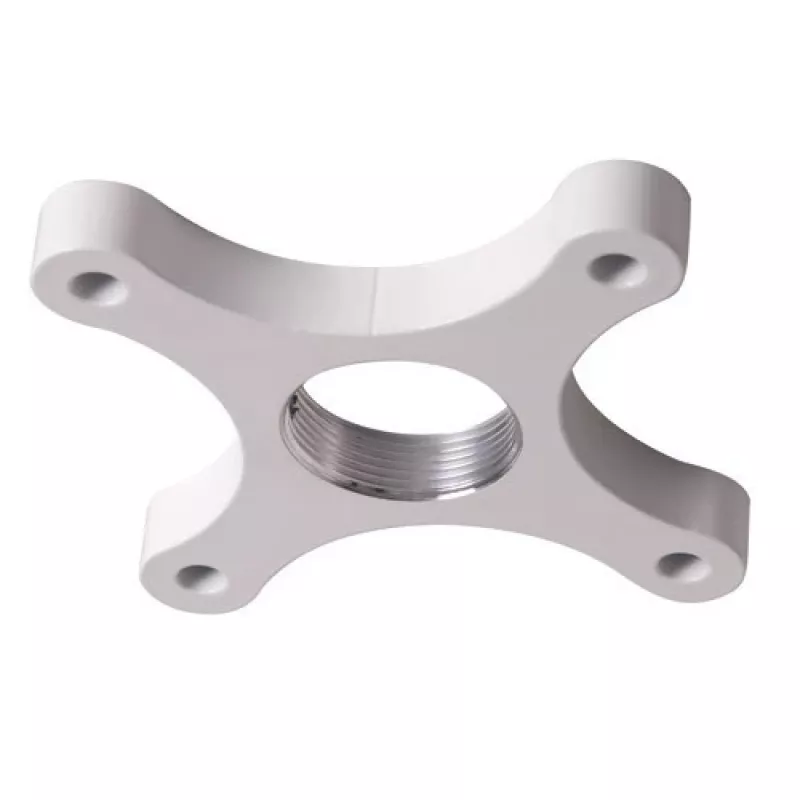

The Chief CMA101W 5" (127 mm) metal ceiling plate provides a compact, cost-effective solution for basic projector and speaker mounting needs. Constructed from metal with a white finish, the plate measures 127 mm x 127 mm x 18 mm and is compatible with Chief mounting systems. It is designed to offer stability and a neat appearance for both home and professional installations.

Advantages

The metal construction delivers durability and reliable support with a maximum weight capacity of 226.8 kg. Its compact 5" size and white finish make the plate unobtrusive in most interiors. The 4" x 4" mounting pattern accepts 0.38" mounting bolts, and installation is flexible: you can use all four mounting holes or two opposing holes depending on the application.

Suitable for

• Ceiling mounting small projectors and compact AV equipment
• Support plate in commercial or residential AV installations
• Use with Chief brand mounting accessories requiring a 127 mm plate

Key specifications

• Dimensions: 127 mm x 127 mm x 18 mm
• Material: Metal
• Colour: White
• Mounting pattern: 4" x 4" (allows 0.38" mounting bolts)
• Maximum weight capacity: 226.8 kg
• MPN: CMA101W
• EAN: 0841872094007

How to use

Position the ceiling plate where the projector or device will be mounted and mark the mounting points. Use the 4" x 4" mounting pattern to align with the ceiling supports and select appropriate 0.38" bolts for secure fastening. Depending on load and ceiling structure, attach the plate using either all four holes for maximum stability or two opposing holes for simpler installations. After fastening the plate, attach the compatible Chief mounting accessory or device and verify alignment and tightness before final use.

Recommendations

Ensure the ceiling structure and fasteners chosen are rated for the total suspended load and install in accordance with local building codes. For heavy loads or critical installations, consult a professional installer.
