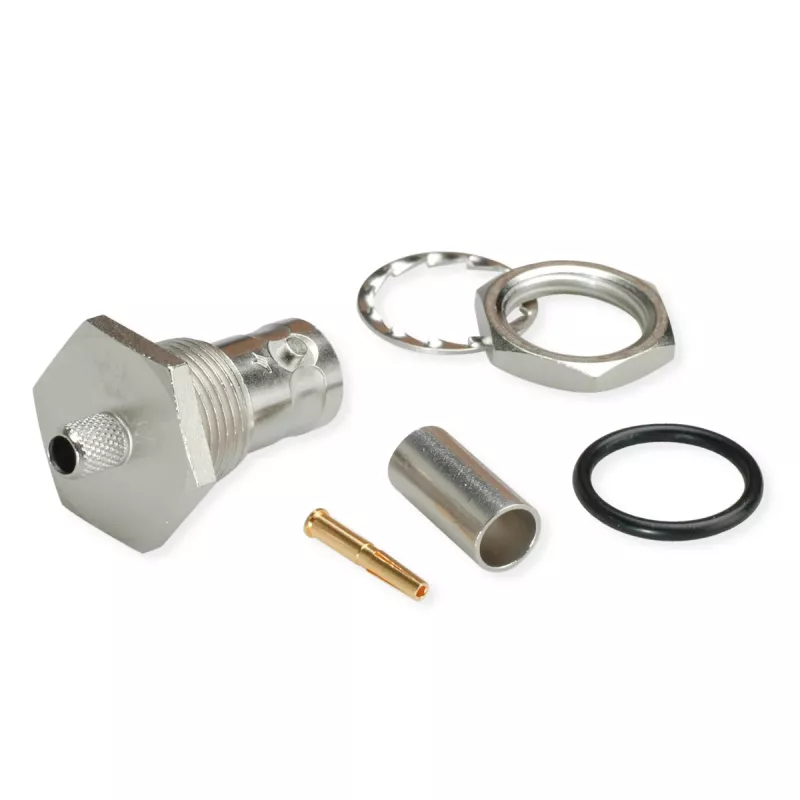

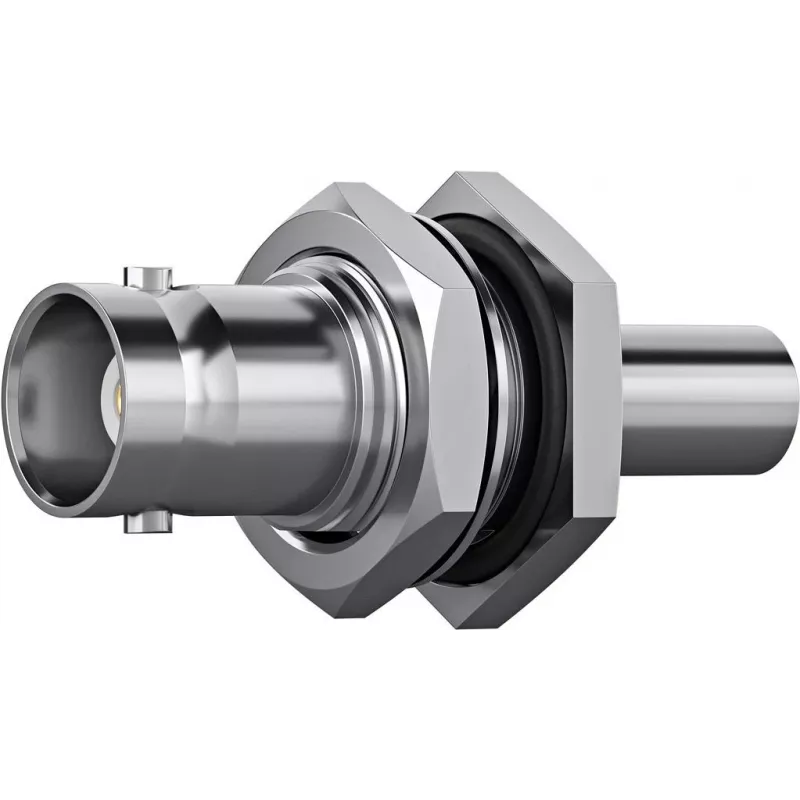

Conector BNC Telegärtner J01001A0108, reto, 50 Ohm, fêmea para fêmea, niquelado

Connect two BNC cables securely in broadcast, CCTV, or RF test setups with the Telegärtner J01001A0108 straight BNC coupler. This in-line adapter joins two BNC plugs (male connectors) through its dual female jacks, maintaining a 50 Ohm impedance for consistent signal integrity.

Key specifications

• Connector 1: BNC female (jack)
• Connector 2: BNC female (jack)
• Impedance: 50 Ω
• Orientation: Straight
• Body material: Brass, nickel-plated
• Center contact: Brass, gold-plated
• Frequency range: DC to 4 GHz
• Operating temperature: -55 °C to +155 °C

Why choose it

Precision-machined brass construction with nickel plating offers durability and corrosion resistance, while gold-plated center contacts ensure low contact resistance and reliable signal transfer. The PTFE insulation provides stable dielectric performance across a wide temperature range.

Ideal use cases

• Extending BNC cable runs in video surveillance systems
• Joining antenna feeds in RF test and measurement setups
• Creating inline connections in broadcast studios and labs

Good to know

The coupler supports up to 500 mating cycles and maintains a VSWR of ≤1.35 up to 4 GHz. Its compact straight design fits easily into tight spaces, and the panel-mount option allows for bulkhead installation when needed.
