Conector coaxial DeLOCK 89765

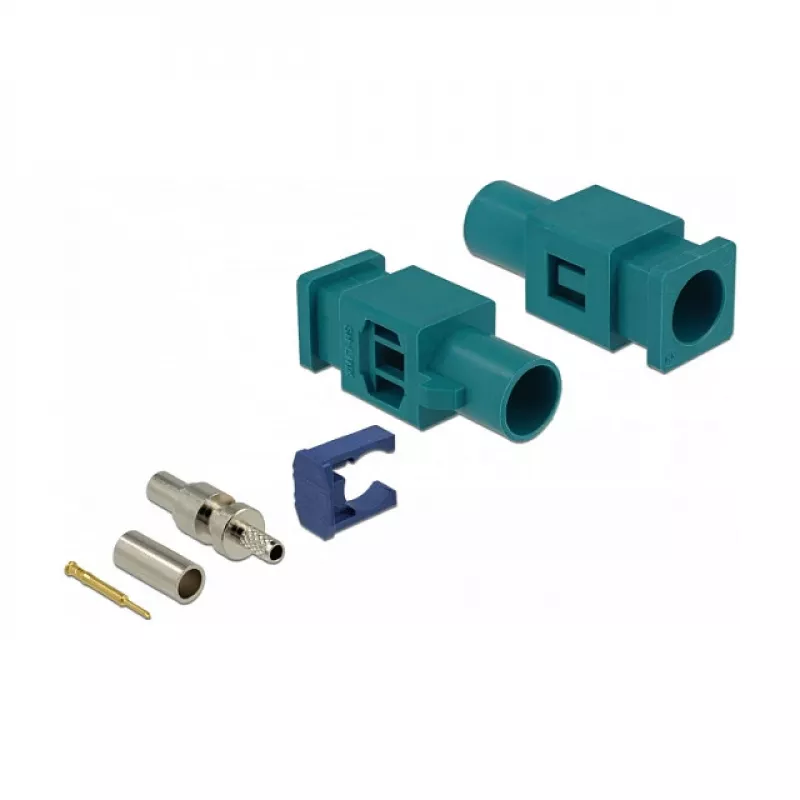

The DeLOCK 89765 coaxial connector is a compact FAKRA Z male plug designed for radio frequency systems. It has gold-plated contacts to ensure good conductivity and corrosion resistance. With dimensions of 9.4 mm (width) × 25.6 mm (depth) × 7.4 mm (height) and a polybag packaging, this connector is intended for use in automotive and telecommunications installations where reliable RF connections are required.

Advantages

The FAKRA Z male interface provides a standardized connection for RF components, while gold-plated contacts improve signal transmission and reduce contact degradation. Its small form factor allows installation in confined spaces and the stainless steel elements offer mechanical durability. The product colour coding (blue with gold contacts) helps with identification during assembly.

Suitable for

Key specifications

How to use

Align the FAKRA Z male plug with the corresponding female socket and push until it engages securely. Ensure mating surfaces are clean and free of debris before connection. For installations in vehicles or telecom racks, verify that the connector is correctly oriented and that cables are routed to avoid strain on the joint. Follow any vehicle or equipment manufacturer guidelines for torque and retention if applicable.

Recommendations

Use the connector only with compatible FAKRA Z female interfaces and maintain gold-plated contacts by avoiding unnecessary disconnections; store unused connectors in the provided polybag to protect against contamination and mechanical damage.
