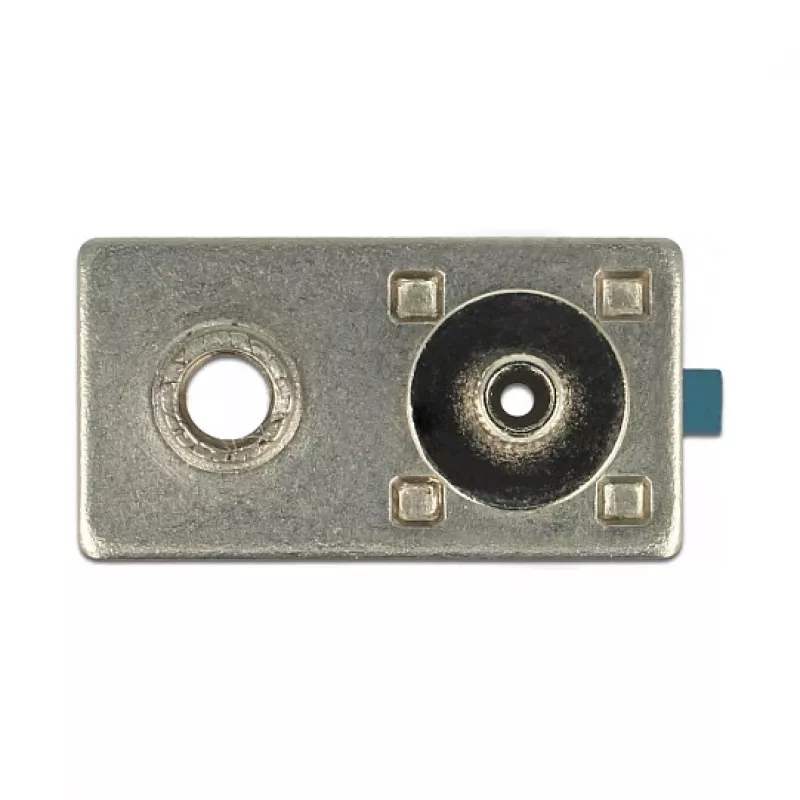

Ficha coaxial DeLOCK 89751

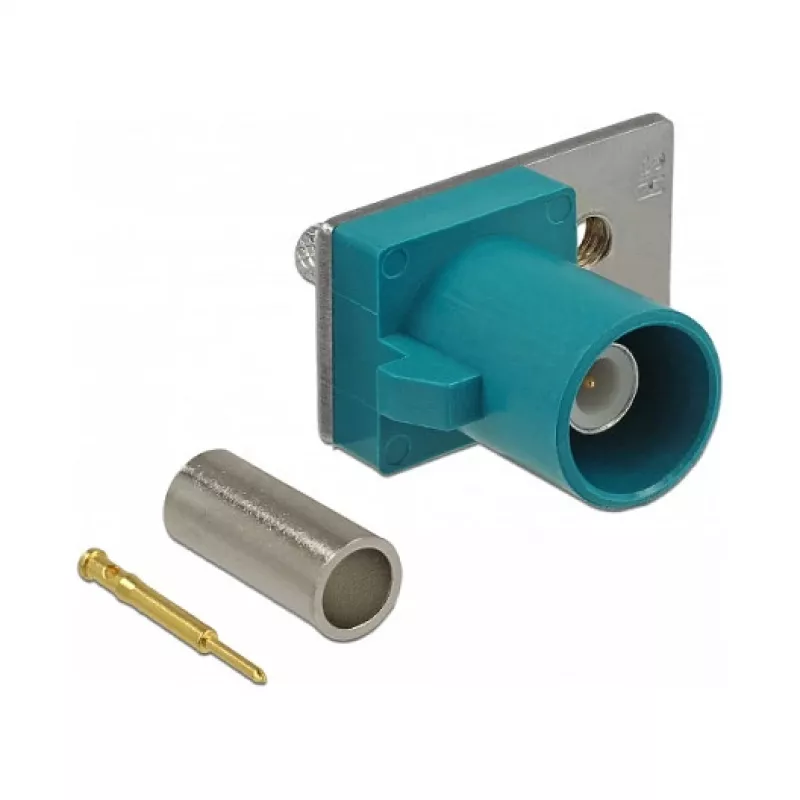

The DeLOCK 89751 coaxial connector is a compact FAKRA Z male connector with gold-plated contacts designed for radio frequency applications. With overall dimensions of 17.8 mm (W) × 19.5 mm (D) × 7.5 mm (H) and supplied in a polybag, this connector provides a reliable interface for RF component connections.

Advantages

Gold-plated contacts improve conductivity and reduce corrosion, while the FAKRA Z male form factor ensures compatibility with corresponding FAKRA Z sockets. The small footprint allows use in space-constrained installations and the packaged polybag preserves the connector during storage and transport.

Suitable for

Key specifications

How to use

Align the FAKRA Z male connector with the corresponding FAKRA Z female socket and press gently until it engages. Ensure mating parts are clean and free of debris before connection. For removal, release any locking mechanism (if present) and pull the connector straight out to avoid damage to the contact surfaces.

Recommendations

Use the DeLOCK 89751 connector in dry, clean environments and avoid excessive mechanical stress on the cable and connector. Verify compatibility with the mating FAKRA Z receptacle and handle the gold-plated contacts carefully to maintain signal quality.
