Conector de fios D-Sub HD 50 pinos DeLOCK 66716

The DeLOCK Wire Connector D-Sub HD 50 pin is a compact female D-Sub high-density connector designed for reliable signal connections in space-constrained installations. Finished in black and silver, the connector measures 12.5 mm in width, 67 mm in depth and 10.7 mm in height, and is supplied as a pack of two pieces. Its small footprint and standard D-Sub HD pin layout make it suitable for retrofitting, panel mounting or linking devices with a high pin-count interface.

Advantages

This D-Sub HD 50 pin connector offers a high contact density in a compact housing, enabling many signal lines to be terminated in a limited space. The female configuration supports secure mating with male counterparts while the metal and plastic finish provides a balance of durability and reduced weight. Supplied as a pair, the package gives an immediate spare for installation or testing purposes.

Suitable for

• Connecting equipment with high-density D-Sub interfaces in industrial or laboratory settings
• Panel or chassis-mounted assemblies where space is limited
• Repair, prototyping or retrofitting of devices that require a 50-pin D-Sub female connection

Key specifications

• Connector type: D-Sub HD (female), 50 pins
• Colour: Black and silver

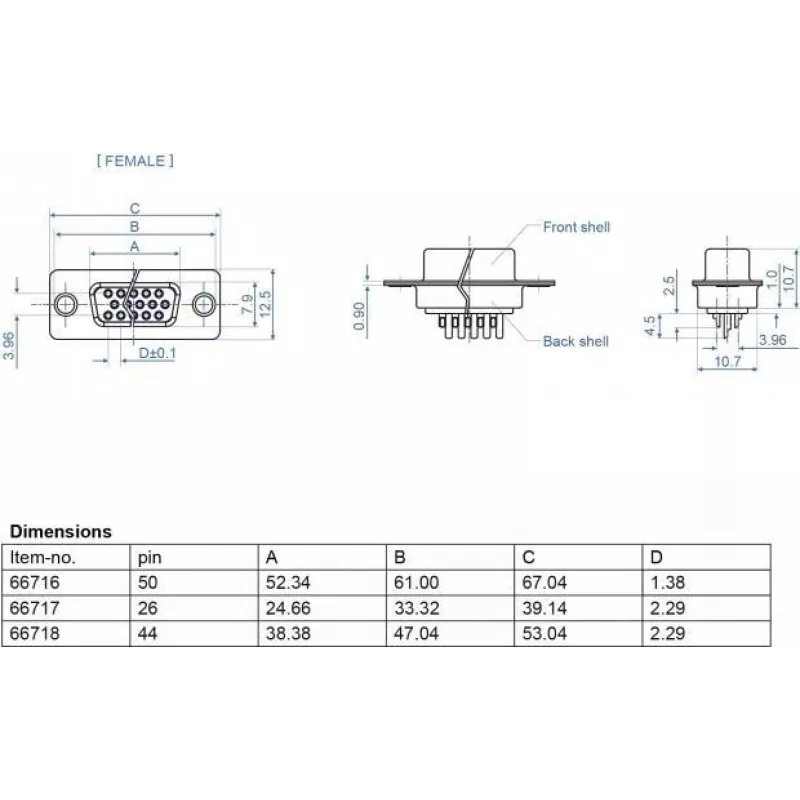

• Dimensions: 12.5 mm (W) x 67 mm (D) x 10.7 mm (H)
• Pack quantity: 2 pieces
• Mounting style: suitable for inline or panel integration (dependent on assembly)

How to use

Align the female D-Sub HD connector with the corresponding male connector, ensuring pin alignment before mating. For panel or chassis installation, secure the connector according to the device’s mounting provisions and use appropriate fastening hardware. Verify contact integrity after installation by performing continuity checks or functional testing with the connected equipment.

Recommendations

To maintain reliable electrical contact, avoid excessive mechanical stress on the connector during installation and use. When used in environments with vibration or frequent mating cycles, periodically inspect the connector contacts and fastening points. Store unused connectors in a dry, dust-free environment.
