Conjunto de módulo de barramento coletor Striebel & John MBR202 60mm para sistemas de 3/4 polos, 690V AC, IP20, cinzento-claro

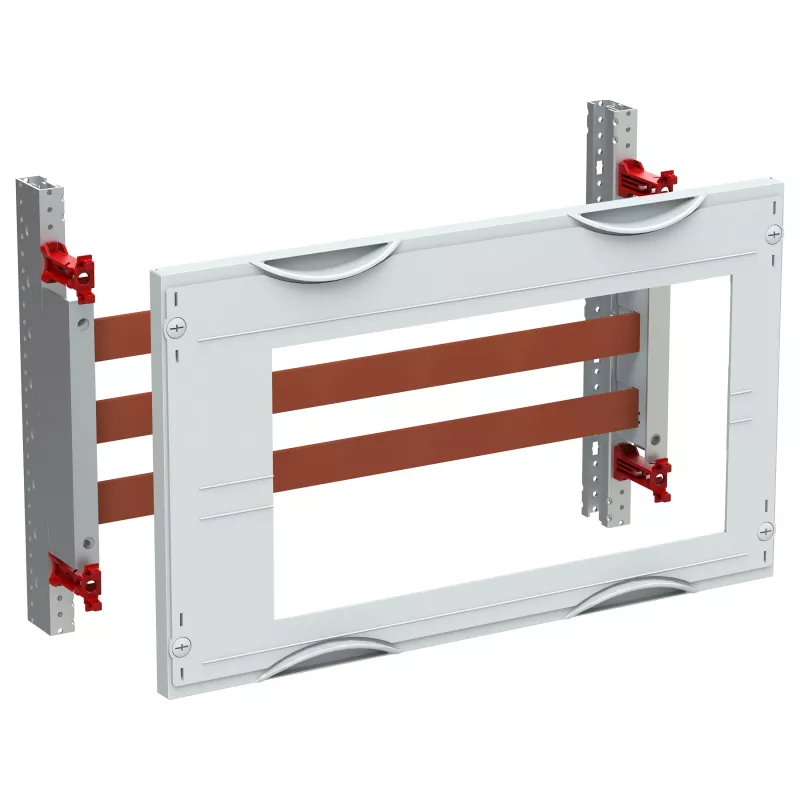

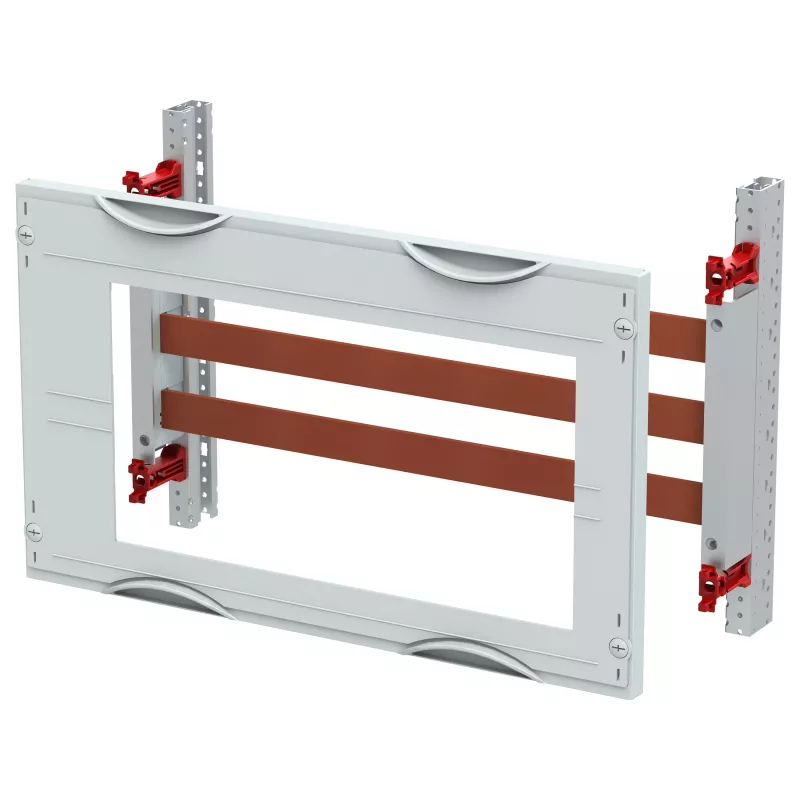

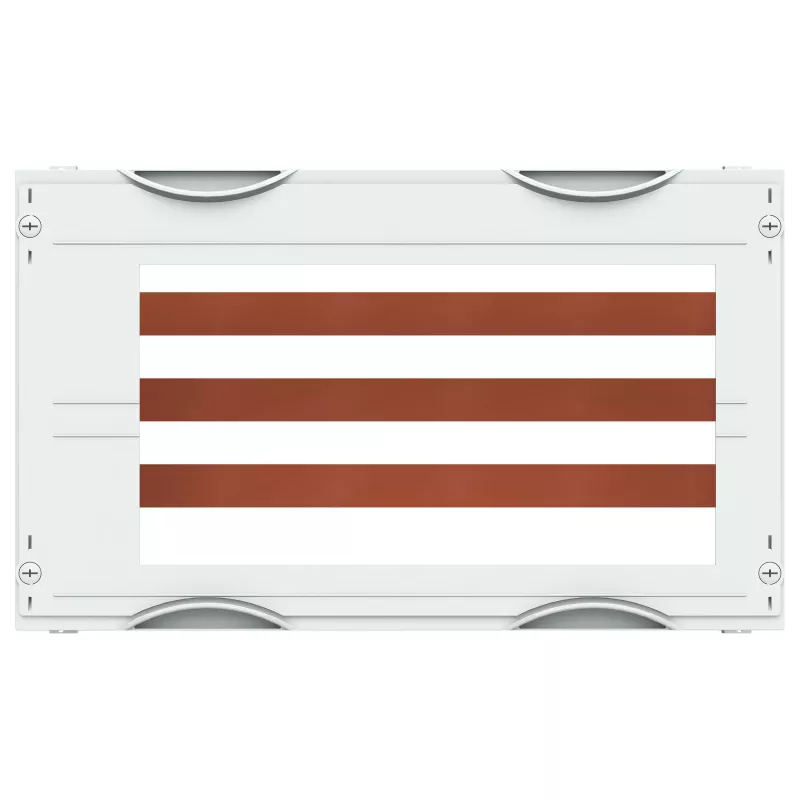

Engineered for low-voltage switchgear up to 690 V AC, the Striebel & John MBR202 Busbar Module Kit delivers a compact, snap-on solution for expanding 60 mm busbar systems. Its high-quality plastic housing and copper contacts ensure reliable power distribution in distribution boards and controlgear assemblies.

Overview

The MBR202 is part of the MBR series, designed for seamless integration with Striebel & John and ABB busbar systems. It supports 3-pole and 4-pole configurations, providing flexibility for various electrical installations. The module's modular design allows for quick mounting directly onto the busbar, reducing installation time and complexity.

What stands out

• Rated insulation voltage up to 1000 V AC for enhanced safety margins.
• IP20 protection when installed in an enclosure, safeguarding against solid objects.
• Compliant with IEC 61439-1 and IEC 61439-2 standards, ensuring quality and performance.
• Light grey housing blends with standard distribution board aesthetics.
• Compact and lightweight, facilitating easy handling and storage.

Technical details

• Product type: Busbar Module Kit
• Busbar system compatibility: 60 mm
• Brand compatibility: Striebel & John / ABB
• Application: Low-voltage switchgear and controlgear assemblies, distribution boards
• Mounting type: Snap-on / Direct mounting on busbar
• Number of poles (system): Designed for 3-pole and 4-pole busbar systems
• Rated operational voltage (Ue): Up to 690 V AC
• Rated insulation voltage (Ui): 1000 V AC
• Degree of protection: IP20 (when installed in an enclosure)
• Material: High-quality plastic housing, copper contacts
• Design: Modular, compact
• Function: Connection and expansion of components within busbar systems
• Standard compliance: IEC 61439-1, IEC 61439-2
• Colour: Light Grey
• Series: MBR Series

Our verdict

A dependable busbar module kit that combines high voltage ratings with easy installation, making it a solid choice for professionals expanding 60 mm busbar systems in low-voltage applications.
