Conjunto de montagem Hikvision DS-1272ZJ-110B (preto)

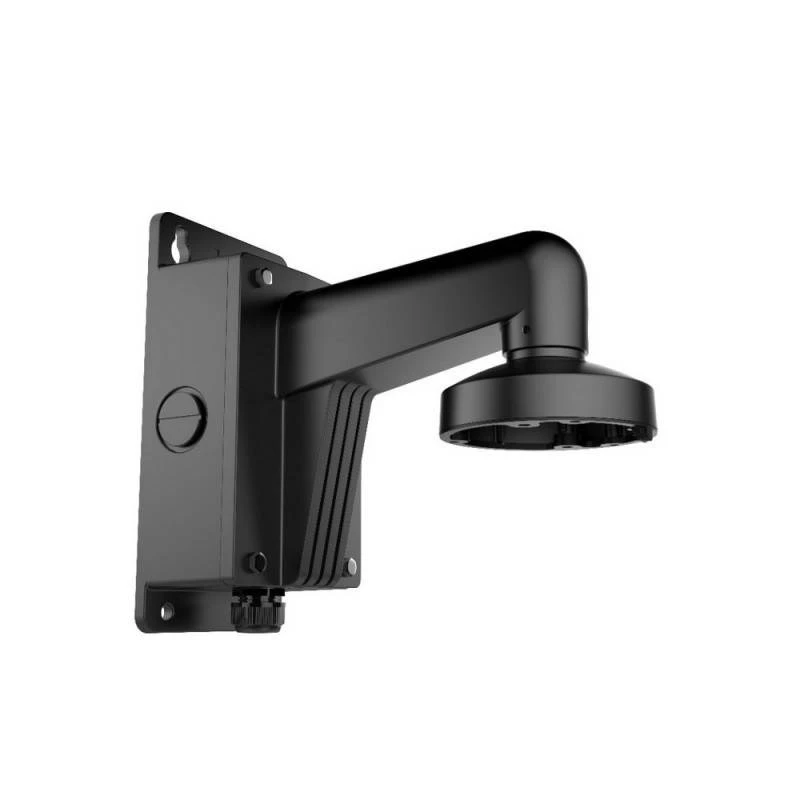

The Hikvision DS-1272ZJ-110B(Black) is an outdoor mounting kit designed to provide a stable and secure support solution for surveillance cameras and similar devices. Constructed for outdoor conditions, the bracket offers compact dimensions of 123 mm width, 227.8 mm depth and 180 mm height and is finished in black to blend with common camera housings and building exteriors. It supports devices up to 4.5 kg, enabling reliable installation of dome and small bullet cameras where a rigid mounting point is required.

Advantages

The mounting kit combines a weather-resistant design with a compact footprint, allowing for discreet installation without sacrificing strength. Its rated load capacity of 4.5 kg covers most standard dome and small bullet cameras, while the black finish reduces visual contrast against façades and camera housings. The dimensions are optimized to position cameras with minimal overhang and maintain a low profile on walls or poles.

Suitable for

• Outdoor wall mounting of dome and small bullet surveillance cameras
• Securing cameras on building façades or under eaves
• Installations where a compact, low-profile bracket is required
• Replacement or upgrade of existing outdoor camera mounts

Key specifications

• Load capacity: up to 4.5 kg
• Dimensions (W×D×H): 123 mm × 227.8 mm × 180 mm
• Color: black
• Intended use: outdoor mounting for surveillance devices
• Compatibility: suitable for dome and small bullet camera form factors

How to use

Mount the bracket on a suitable flat surface or pole using appropriate anchors and fasteners for the substrate. Position the camera on the mounting plate and secure it according to the camera manufacturer's instructions, ensuring the total weight does not exceed 4.5 kg. Adjust the camera orientation and tighten all fasteners to prevent movement. If the installation is outdoors, verify that all cable entries are sealed and that the mounting location provides adequate protection from direct water exposure when possible.

Recommendations

Use corrosion-resistant fasteners for long-term outdoor installations and select anchors rated for the wall material. Confirm the combined weight of camera and any accessories remains below 4.5 kg. Periodically inspect the mount and fixings for signs of wear, corrosion or loosening, especially after severe weather.
