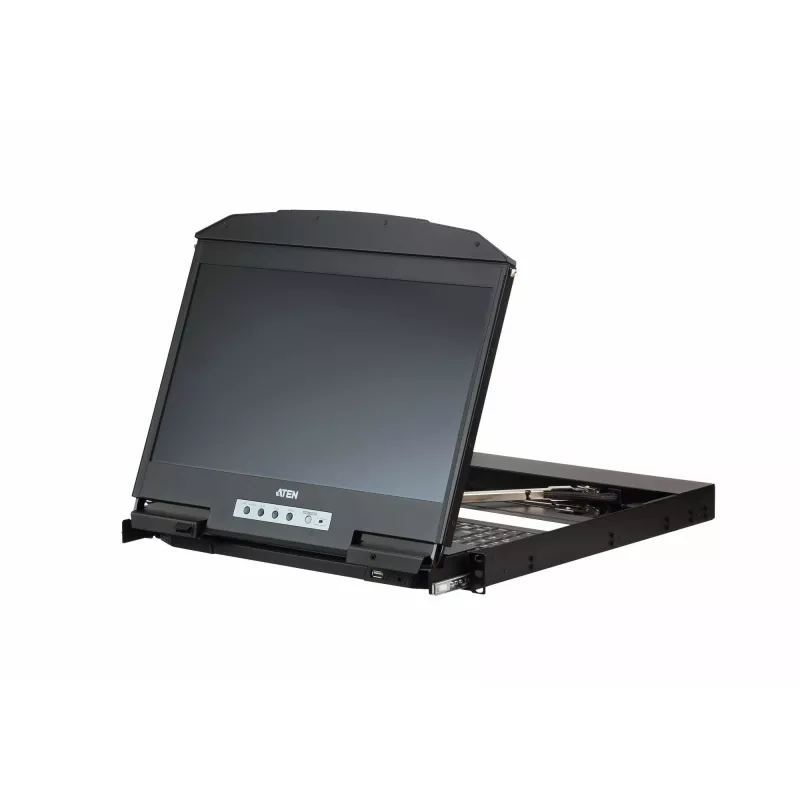

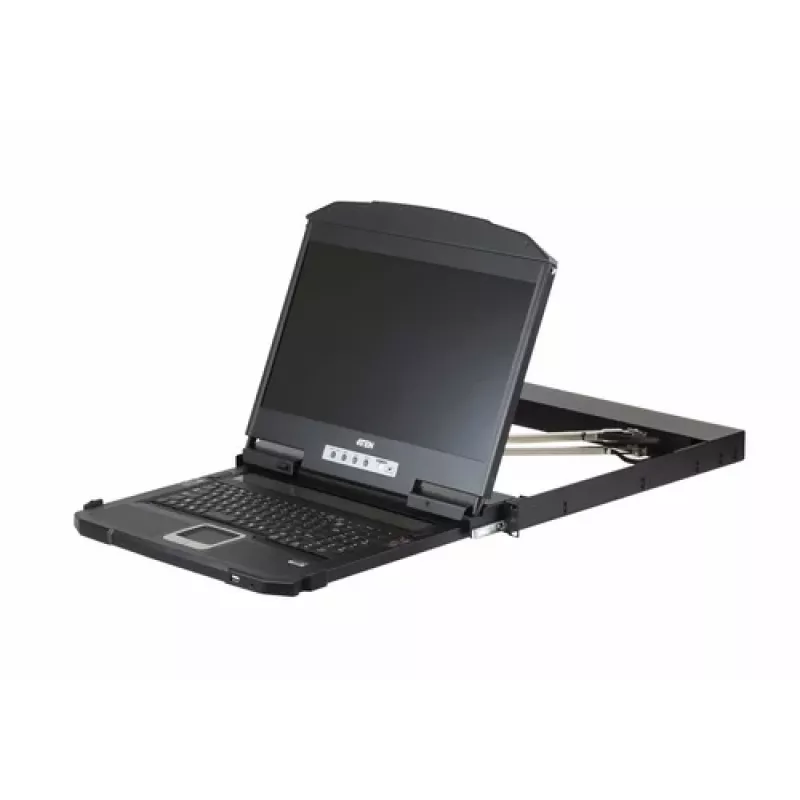

Consola KVM LCD ATEN CL3800NW 18,5 polegadas Dual-Rail - DVI, USB, montagem em rack 1U, Full HD

For data centres and server rooms where rack space is at a premium, the ATEN CL3800NW delivers a full-HD console experience in a slim 1U dual-rail design that keeps the keyboard and LCD independent. Unlike fixed single-rail units that force you to work at rack height, this console lets you slide out just the keyboard when you need quick access, or pull the entire display forward for extended sessions—without blocking adjacent equipment.

Highlights

• 18.5-inch TFT-LCD with 1920 x 1080 Full HD resolution and 350 cd/m² brightness for crisp, readable output even in bright server rooms.
• Dual rail mechanism: keyboard/touchpad module and LCD panel slide independently, saving space and improving ergonomics.
• Integrated DVI-D video input and USB keyboard/mouse ports—connect directly to any USB/DVI server or KVM switch.
• Extra USB 2.0 port on the front panel for peripheral sharing, such as a flash drive or CAC reader.
• Wide 178° viewing angles and 1000:1 contrast ratio ensure clear visibility from off-centre positions.
• 1U rack height fits standard 19-inch racks, with hot-plugging support for uninterrupted operation.

In daily use

The CL3800NW is built for admins who need reliable local access without sacrificing rack density. The dual-rail design means you can keep the keyboard tucked away while monitoring the screen, then slide it out only when needed. The 18.5-inch panel shows full 1080p content without scaling, so you can manage modern servers with native resolution. The front USB port is handy for firmware updates or transferring logs. With a maximum power draw of just 20.5 W, it adds minimal heat to your rack.

Full specifications

• Display: 18.5-inch TFT-LCD, 1920 x 1080 pixels, 350 cd/m² brightness, 1000:1 contrast ratio, 5 ms response time, 178°/178° viewing angles.
• Video input: 1 x DVI-D Single Link.
• Keyboard/mouse: integrated USB keyboard and touchpad, 2 x USB Type A ports for external K/M.
• Peripheral port: 1 x USB 2.0 on front panel.
• Rack mounting: 1U height, 19-inch standard rack compatible.
• Power: 100–240 V AC input, max consumption 20.5 W.
• Operating conditions: 0–40 °C, hot-plugging supported.
• Included accessories: KVM cable set, power cord, rack mounting kit, user manual.

Final note

The ATEN CL3800NW combines a bright Full HD display with a space-saving dual-rail design, making it a practical choice for any rack environment where clarity and accessibility matter.
