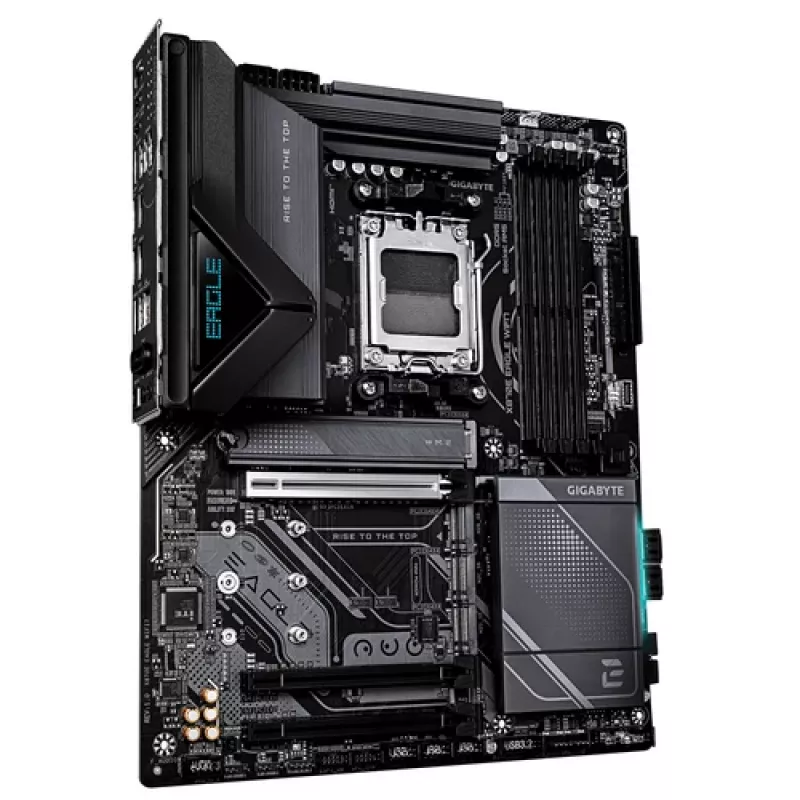

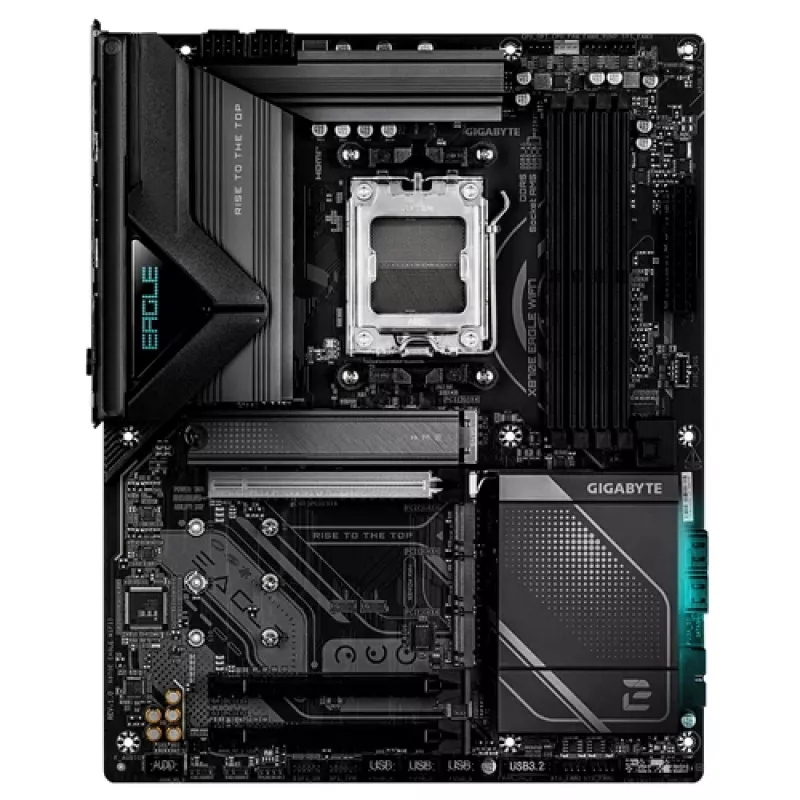

Placa-mãe GIGABYTE X870E EAGLE WIFI7 AM5 ATX, 4x DDR5, HDMI, DP, 4x M.2, USB4, Wi-Fi 7, 5GbE

Building a high-performance AMD Ryzen 9000 or 7000 series PC? The GIGABYTE X870E EAGLE WIFI7 motherboard anchors your ATX build with the AMD X870E chipset, delivering PCIe 5.0, DDR5 memory support up to 8000+ MHz (OC), and next-gen connectivity. Four M.2 slots—including PCIe 5.0 x4—let you run ultra-fast NVMe SSDs, while USB4 ports offer 40Gbps transfer speeds for external drives and docks. Networking is handled by Wi-Fi 7 and 5 Gigabit Ethernet for low-latency gaming and large file transfers. The robust 16+2+2 phase VRM with 80A power stages ensures stable power for overclocked CPUs, and the enlarged heatsinks keep temperatures in check. HDMI and DisplayPort outputs support integrated graphics when using an APU.

Key specifications

• Socket AM5 for AMD Ryzen 7000/8000/9000 series processors
• AMD X870E chipset with PCIe 5.0 support
• 4x DDR5 DIMM slots, up to 256GB, overclocking up to 8000+ MHz
• 4x M.2 slots (1x PCIe 5.0 x4, 3x PCIe 4.0 x4) with thermal guards
• USB4 (40Gbps), USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1
• Wi-Fi 7 and Bluetooth 5.4, 5 Gigabit Ethernet LAN
• HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics
• ATX form factor, black PCB with silver accents

Why choose it

The X870E EAGLE WIFI7 balances cutting-edge features with reliability. Its 16+2+2 power design and premium thermal solution ensure your CPU runs cool under load, while the tool-free M.2 EZ-Latch Click and EZ-Latch Plus make upgrades effortless. With Wi-Fi 7 and 5GbE, you're ready for multi-gigabit networking.

Ideal use cases

• High-end gaming rigs with Ryzen 9000 series CPUs
• Content creation workstations requiring fast storage and connectivity
• Overclocking enthusiasts seeking stable power delivery
• Future-proof builds with PCIe 5.0 and USB4 support

Good to know

The motherboard supports AMD EXPO for one-click memory overclocking and features a user-friendly BIOS. Its enlarged heatsinks and thermal pads effectively dissipate heat from VRMs and M.2 SSDs, ensuring sustained performance. The black PCB with silver accents fits most build aesthetics.
