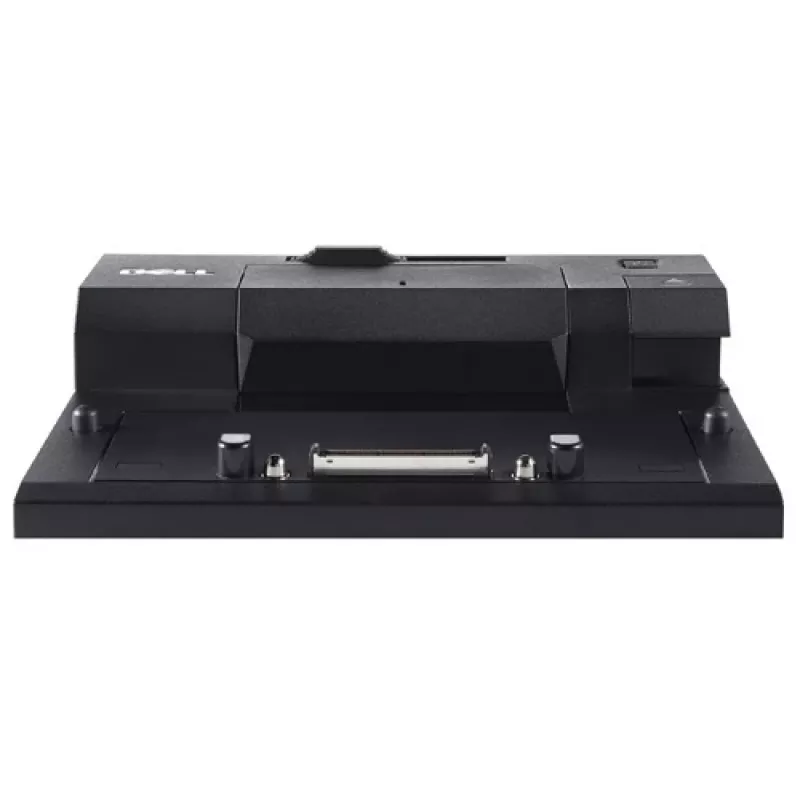

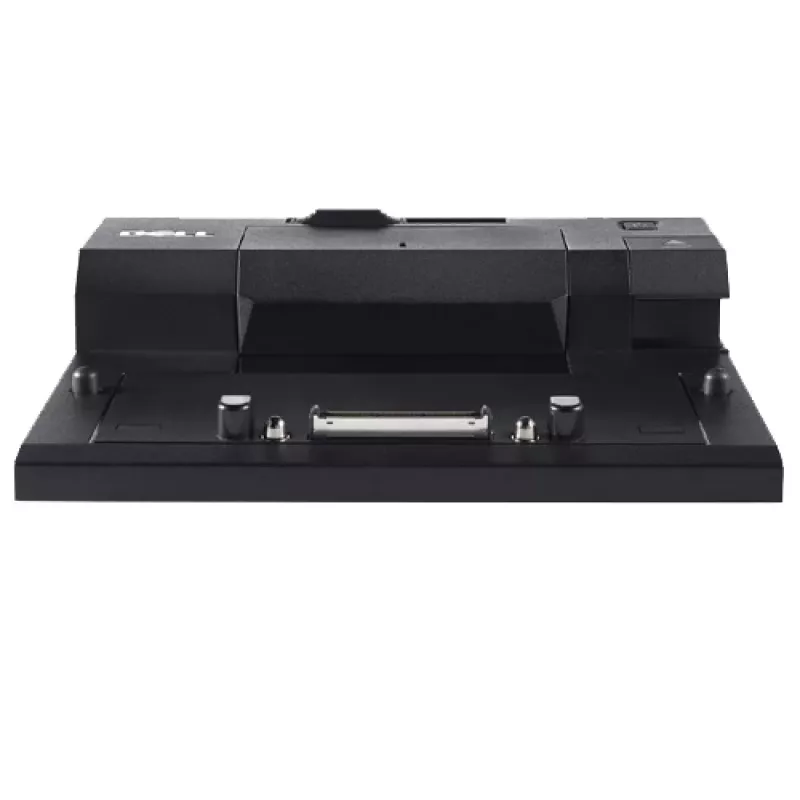

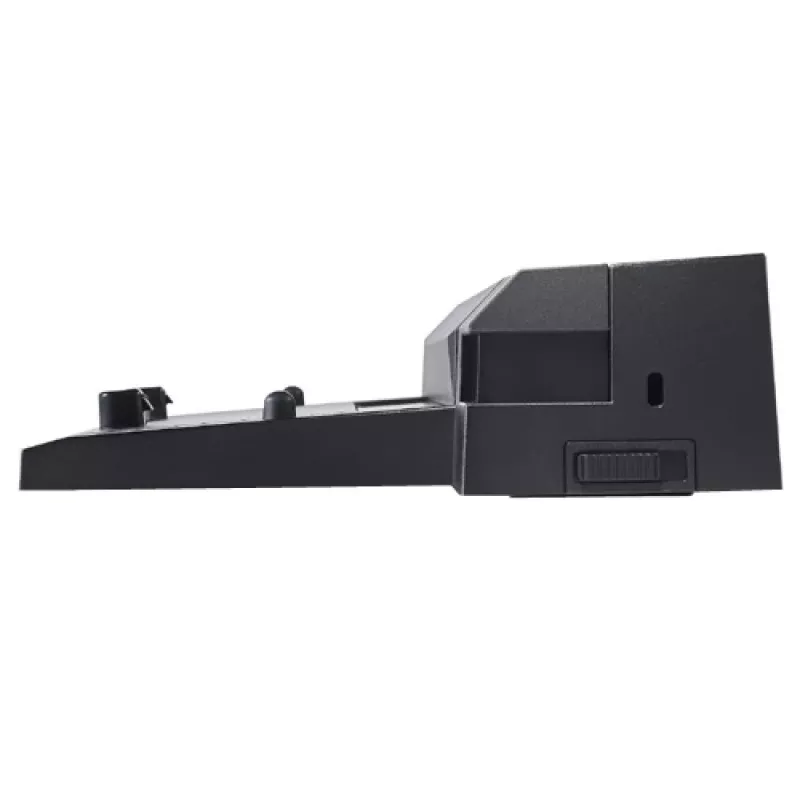

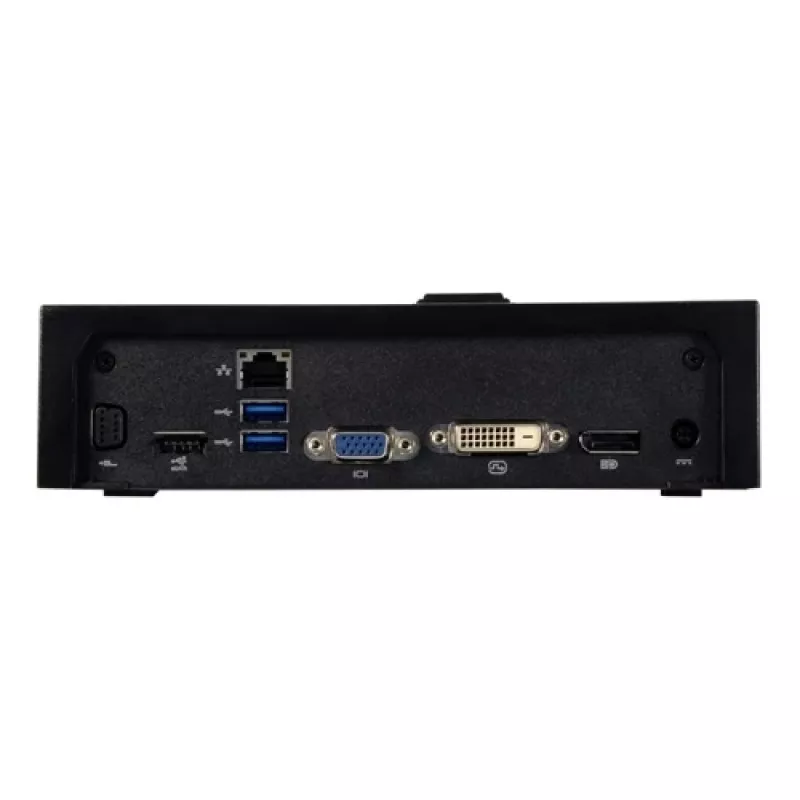

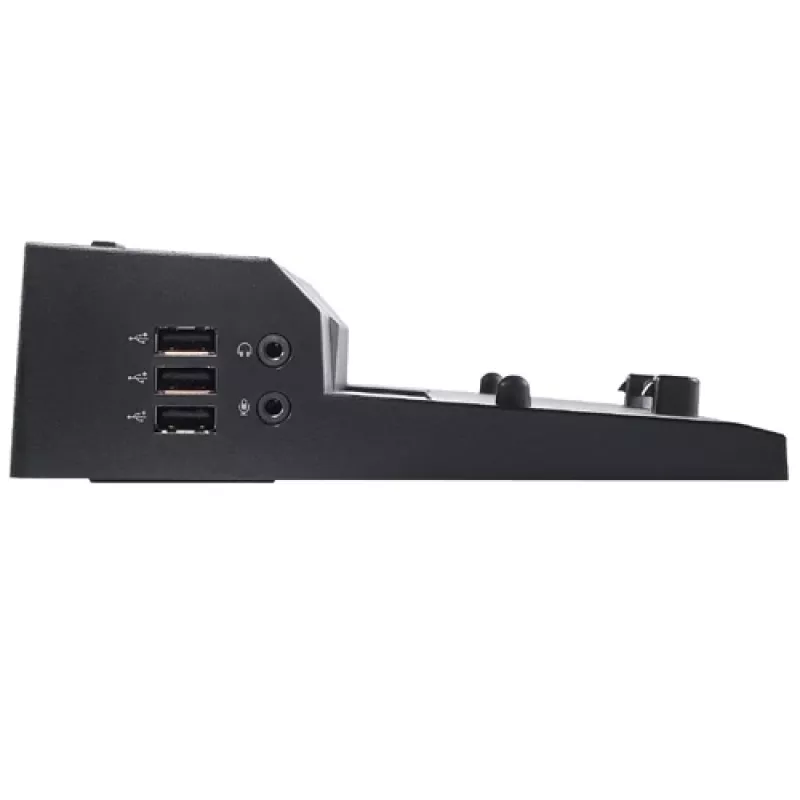

DELL EURO Simple E-Port II docking preto

The Dell E-Port II Replicator (Docking Station DELL EURO Simple E-Port II) expands a compatible Dell Latitude laptop into a desktop-like workspace by providing a single connection for power and peripherals. The compact black docking station supports AC input 100–240 V, 50–60 Hz, delivers up to 130 W output power and is validated by Dell for use with supported Latitude models. Physical dimensions are approximately 200 mm (W) × 170 mm (D) × 53.7 mm (H).

Advantages

The docking station simplifies connectivity by consolidating keyboard, mouse, monitor, printer and other peripheral connections through one interface, reducing cable clutter and speeding transitions between mobile and desk setups. It is tested and validated with Dell systems and qualifies for Dell Technical Support when used with supported Dell laptops.

Suitable for

• Users who need a stable desktop-style workstation for a Dell Latitude laptop
• Office environments where quick docking/undocking is required
• Workplaces that require multiple peripheral connections through a single port

Key specifications

• Model: Dell E-Port II Replicator / DELL EURO Simple E-Port II
• Compatibility: Selected Dell Latitude models, including E5430, E5530, E6230, E6330, E6430, E6430 ATG, E6530 and others listed by Dell
• AC input: 100–240 V, 50–60 Hz
• Output power: 130 W
• Dimensions: 200 mm × 170 mm × 53.7 mm
• Color: Black
• Manufacturer part number (MPN): 452-11424
• EAN: 5397063812271

How to use

Place the docking station on a stable surface and connect the supplied AC adapter to the dock and to mains power. Align and attach a compatible Dell Latitude laptop to the docking connector until it locks. Connect peripherals such as monitor, keyboard, mouse and printer to the dock’s ports. To undock, close open files, use the system’s eject/dock option if available, then press the release mechanism and lift the laptop away.

Recommendations

Use this docking station with Dell systems listed as compatible to ensure full validation and support. Keep vents unobstructed during operation and use the original or equivalent AC adapter rated for the docking station to maintain reliable power delivery.
