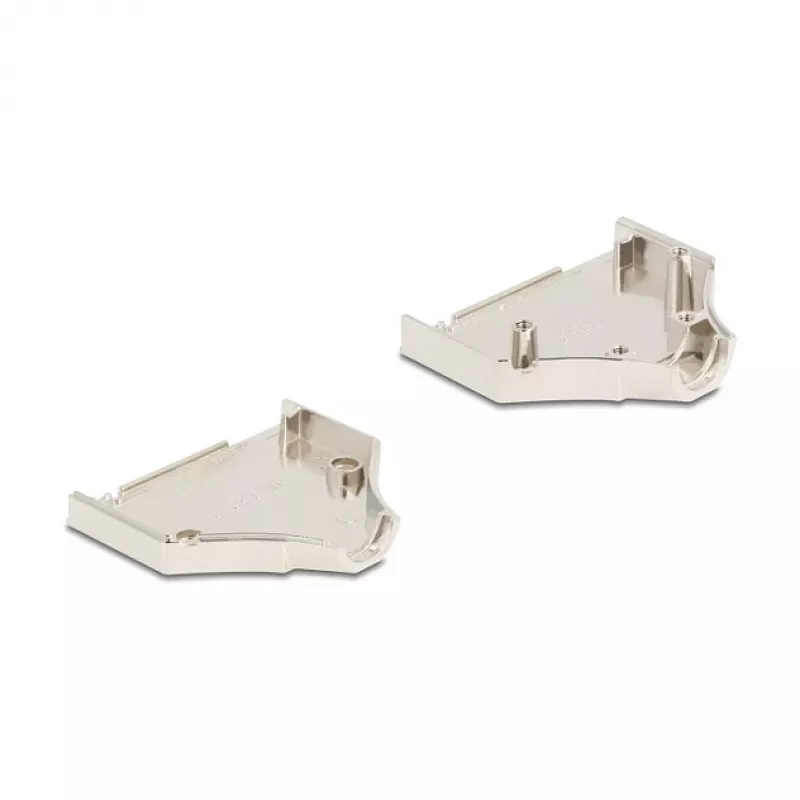

DeLOCK 67134 conector de cabo D-Sub 25 pinos prateado ficha

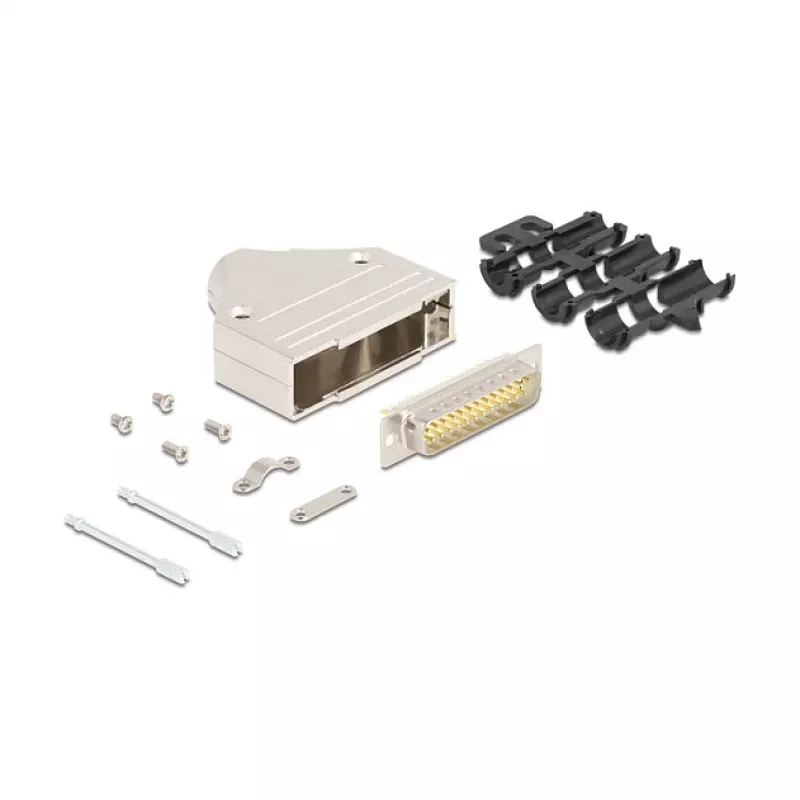

The DeLOCK 67134 wire connector is a 25-pin D-Sub male connector designed for reliable electrical connections in equipment and cabling assemblies. Finished in silver, the compact connector measures 54.5 mm in width, 47 mm in depth and 15.6 mm in height, making it suitable for space-conscious installations where a standard D-Sub 25-pin male interface is required.

Advantages

This DeLOCK D-Sub 25-pin male connector provides a standardised interface compatible with a wide range of devices that accept D-Sub connections. The silver finish offers corrosion resistance and consistent contact performance. Its compact dimensions enable use in confined mounting locations while maintaining the mechanical stability expected from a metal-bodied connector.

Suitable for

• Connecting serial or parallel D-Sub equipment and cable assemblies
• Panel or chassis wiring where a male 25-pin D-Sub interface is required
• Repairing or replacing existing D-Sub connections in industrial or consumer electronics

Key specifications

• Connector type: D-Sub 25-pin, male
• Colour: Silver
• Width: 54.5 mm
• Depth: 47 mm
• Height: 15.6 mm
• Application area: cable interface and gender adapters

How to use

Align the 25-pin D-Sub male connector with the mating female socket, ensuring pin orientation matches the device connector. Insert the connector straight into the socket without excessive force. Secure the connector using the device's mounting or fastening mechanism as applicable; if required, fasten the connector's screws or clamping hardware to ensure stable mechanical and electrical contact. For wiring or integration into assemblies, follow standard soldering or crimping procedures compatible with D-Sub terminals and the receiving hardware.

Recommendations

Inspect the connector and mating socket for damage or debris before use. Use the connector within typical D-Sub environmental and electrical limits, avoid exposure to excessive moisture or corrosive substances, and ensure secure mechanical fastening to prevent signal interruption.
