DeLOCK D-Sub 9 pinos macho para RJ12 fêmea kit de montagem preto

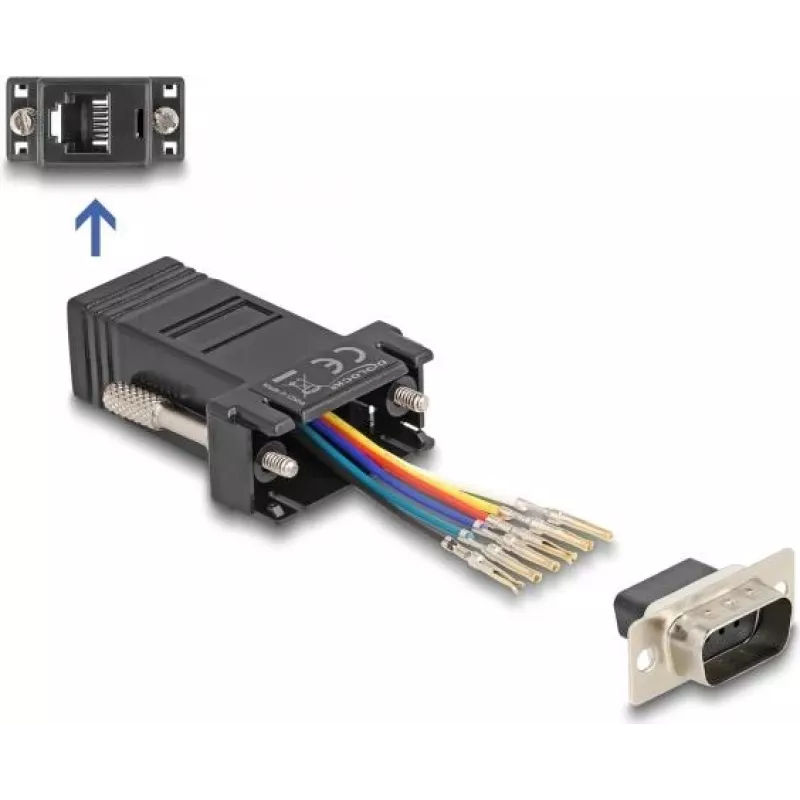

This DeLOCK D-Sub 9 pin male to RJ12 female Assembly Kit is an adapter that converts a D-Sub 9 serial interface to an RJ12 connection using an ISDN, telephone or RJ12 cable. The contacts can be placed into the D-Sub 9 housing according to the desired pin assignment, and the RJ12 socket snaps into place to provide reliable contact for data transmission. The product is black and intended for custom assembly and flexible wiring of serial connections.

Advantages

The kit allows flexible and individual assignment of the D-Sub 9 contacts and supports connection via standard ISDN/telephone/RJ12 cables. Sockets click into the D-Sub housing to ensure secure contact and straightforward assembly. Compact black housing suits professional and technical installations.

Suitable for

• Connecting RS-232 serial devices via RJ12 cabling
• Field or workshop custom wiring and pin assignments
• Repairing or replacing damaged D-Sub 9 to RJ12 connections

Key specifications

• Brand: DELOCK
• Model / MPN: 67072
• EAN: 4043619670727
• Connector 1: D-Sub 9 (male, assembly kit)
• Connector 2: RJ12 (female)
• Product colour: Black

How to use

Assemble the D-Sub 9 connector by inserting the contact pins into the housing according to the required pinout. Attach the RJ12 female socket and route the ISDN/telephone/RJ12 cable to the socket. Press the sockets into the D-Sub housing until they click to secure them. Verify the pin assignment and continuity with a multimeter before connecting equipment.

Recommendations

Use standard RJ12/telephone cables rated for your application and ensure correct pin mapping for RS-232 or other serial protocols before powering connected devices. For reliable long-term operation, avoid excessive bending of the cable at the connector entry.
