DeLOCK RJ50 fêmea para barra de terminais com botão de pressão para calha DIN

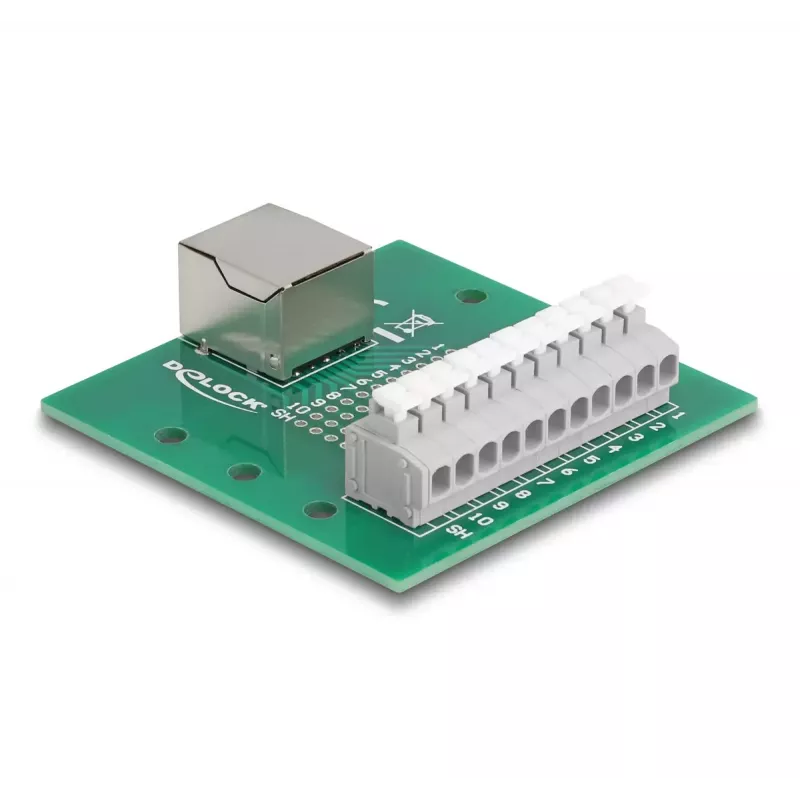

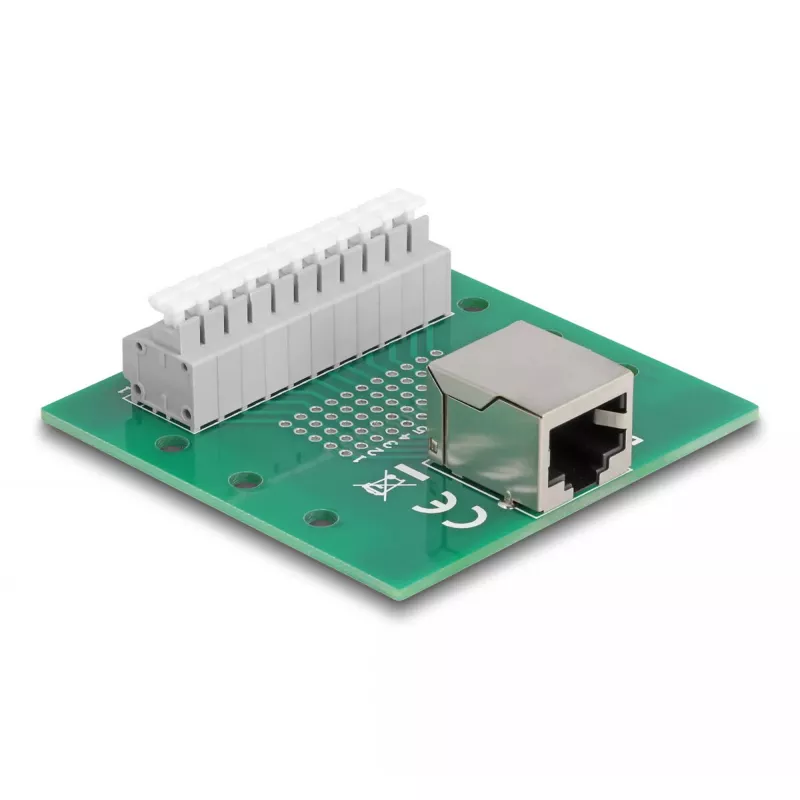

This adapter by Delock connects RJ50 female interfaces to a terminal block with a push-button mechanism and is designed for DIN rail mounting. It accepts strands with stripped ends that can be clamped tool-free into the terminal block. The unit measures 53 mm wide, 60 mm deep and 18 mm high and is supplied with mounting clips for 15 mm or 35 mm DIN rails. The product colour is green and grey.

Advantages

The DeLOCK RJ50 female to Terminal Block with push-button for DIN rail provides a compact and field-serviceable interface for converting RJ50 connections to screwless terminal connections. The push-button terminal enables quick, tool-free wiring changes and the included clips allow secure attachment to standard 15 mm or 35 mm DIN rails. Its compact dimensions support installation in confined electrical cabinets.

Suitable for

• Connecting RJ50-equipped control or measurement devices to terminal blocks
• Industrial automation and control cabinets
• Field wiring and test setups requiring frequent reconnections

Key specifications

• Connector: RJ50 female to terminal block (push-button)

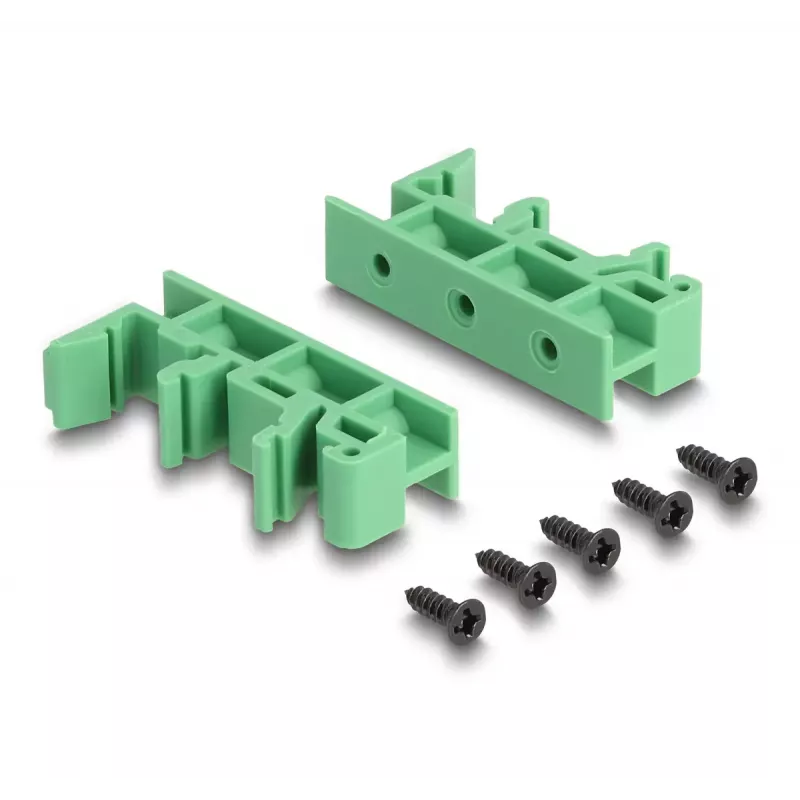

• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Dimensions: 53 mm (W) x 60 mm (D) x 18 mm (H)
• Colour: Green, Grey
• Brand: DELOCK, MPN: 67012, EAN: 4043619670123

How to use

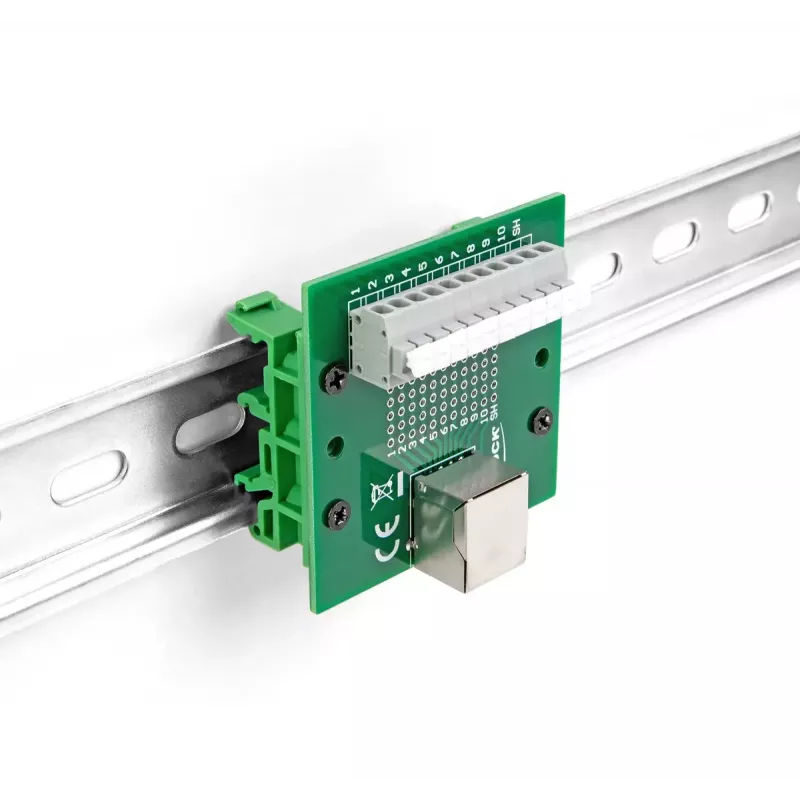

Mount the adapter onto a compatible 15 mm or 35 mm DIN rail using the supplied clips. Insert the RJ50 plug into the female connector. Strip wire ends to the appropriate length, press the push-button on the terminal block, insert the conductor into the terminal opening and release the button to clamp the wire. For removal, press the push-button while pulling the conductor out.

Recommendations

Ensure power is disconnected before wiring. Use conductors of suitable cross-section for the terminal block and avoid overstripping. Verify secure mounting on the DIN rail and check connections after installation and before applying power.
