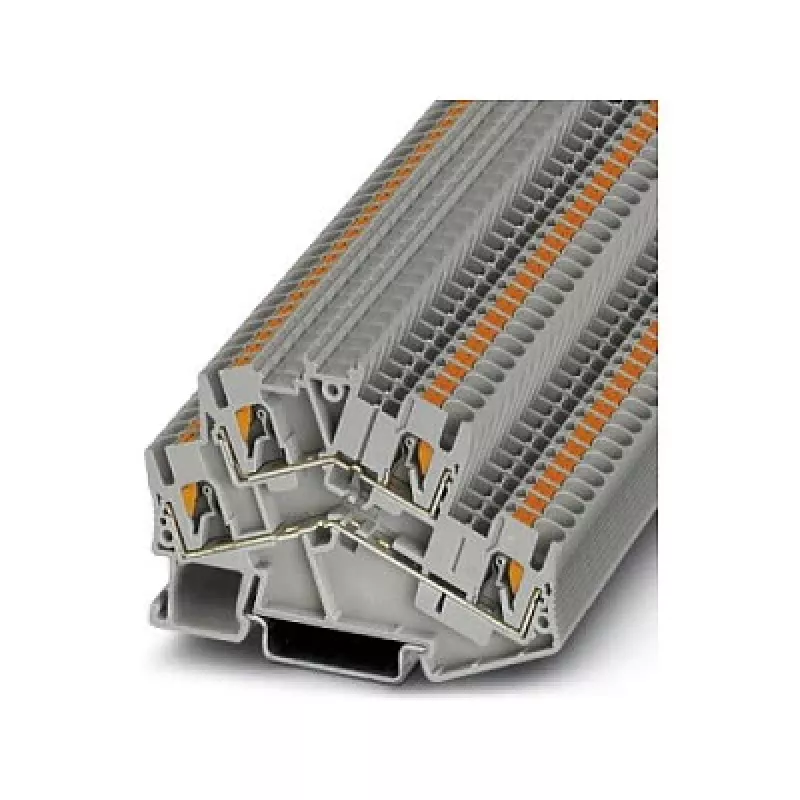

Borne de passagem de dois níveis Phoenix 3209604 PTTBS 2.5, ligação push-in, cinzento

Unlike standard single-level terminal blocks that consume more rail space and complicate wiring, the Phoenix 3209604 PTTBS 2.5 double-level terminal block doubles connection density in the same footprint. Its push-in connection technology allows solid or stranded conductors to be inserted directly without tools, dramatically reducing installation time. The grey polyamide housing is halogen-free and UL 94 V0 rated, ensuring safety in control cabinets and industrial distribution systems.

Highlights

• Two-level design with 4 push-in connection points for high-density wiring
• Tool-free push-in termination for solid and stranded conductors up to 2.5 mm²
• Rated for 500 V and 24 A (IEC), suitable for demanding industrial applications
• Mounts on standard DIN rail NS 35/7.5 or NS 35/15
• Wide operating temperature range from -60 °C to +105 °C
• Flammability rating UL 94 V0 and pollution degree 3 for harsh environments

In daily use

This double-level feed-through terminal block is ideal for control panels, machine building, and power distribution where space is limited. The push-in mechanism accepts conductors from 0.14 mm² to 4 mm² solid and 0.14 mm² to 2.5 mm² stranded (AWG 26–12). A stripping length of 8–10 mm ensures reliable contact. The grey PA housing resists chemicals and mechanical stress, while the 6 kV rated surge voltage and overvoltage category III provide robust protection against transients.

Full specifications

• Product type: Double-level feed-through terminal block
• Connection technology: Push-in
• Number of levels: 2
• Number of connections: 4 (2 per level)
• Nominal cross section: 2.5 mm²
• Colour: Grey
• Insulating material: PA (Polyamide)
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Conductor cross section solid: 0.14 mm² – 4 mm²
• Conductor cross section stranded: 0.14 mm² – 2.5 mm²
• Conductor cross section AWG: 26 – 12
• Stripping length: 8 mm – 10 mm
• Operating temperature: -60 °C to 105 °C
• Flammability rating: UL 94 V0
• Rated surge voltage: 6 kV
• Pollution degree: 3
• Overvoltage category: III

Final note

The Phoenix 3209604 PTTBS 2.5 is a reliable, space-saving solution for professional electrical installations. Its push-in technology and high electrical ratings make it a preferred choice for panel builders and maintenance engineers.
