Eaton BC-A-4/52-TW-G quadro de distribuição pequeno de montagem à superfície de 4 filas, 52 unidades modulares, porta transparente, branco 110160

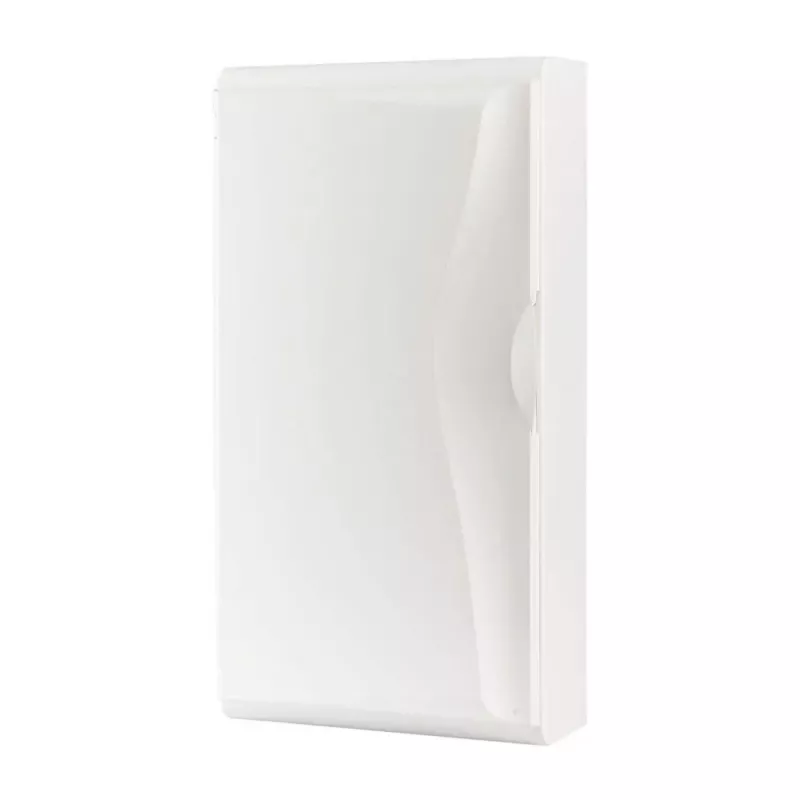

The Eaton BC-A-4/52-TW-G is a surface-mounted small distribution board with four rows and a total capacity of 52 module units (13 per row). Its transparent door allows quick visual inspection of installed devices, while the halogen-free polystyrene housing in white (RAL 9016) ensures durability and safety.

Advantages

The transparent door provides a clear view of the internal components without opening the enclosure. The halogen-free material reduces toxic emissions in case of fire. The board includes PE and N terminal blocks with generous connection capacity, simplifying installation.

Suitable for

• Residential and commercial electrical installations
• Distribution of circuits with modular devices such as MCBs, RCDs, and relays
• Surface mounting on walls where flush mounting is not possible

Key specifications

• Mounting type: Surface-mounted
• Number of rows: 4
• Total module units: 52 (13 per row)
• Door type: Transparent
• Housing material: Halogen-free plastic (polystyrene)
• Colour: White (RAL 9016)
• Protection class: IP30
• Impact resistance: IK05
• Rated insulation voltage: 400 V AC
• Rated current: up to 63 A
• Glow wire test: 850 °C
• Standards compliance: EN 61439-3
• PE terminal block: included (2x25mm² + 14x16mm² screw terminals)
• N terminal block: included (2x25mm² + 14x16mm² screw terminals)
• Cable entry: top, bottom, rear knockouts
• Ambient operating temperature: -5 °C to +40 °C
• Door opening angle: 180°
• Installation depth: 96.5 mm

Recommendations

Ideal for electricians seeking a reliable, transparent distribution board with ample space for modular devices. The halogen-free construction and high glow wire rating make it a safe choice for modern installations.
