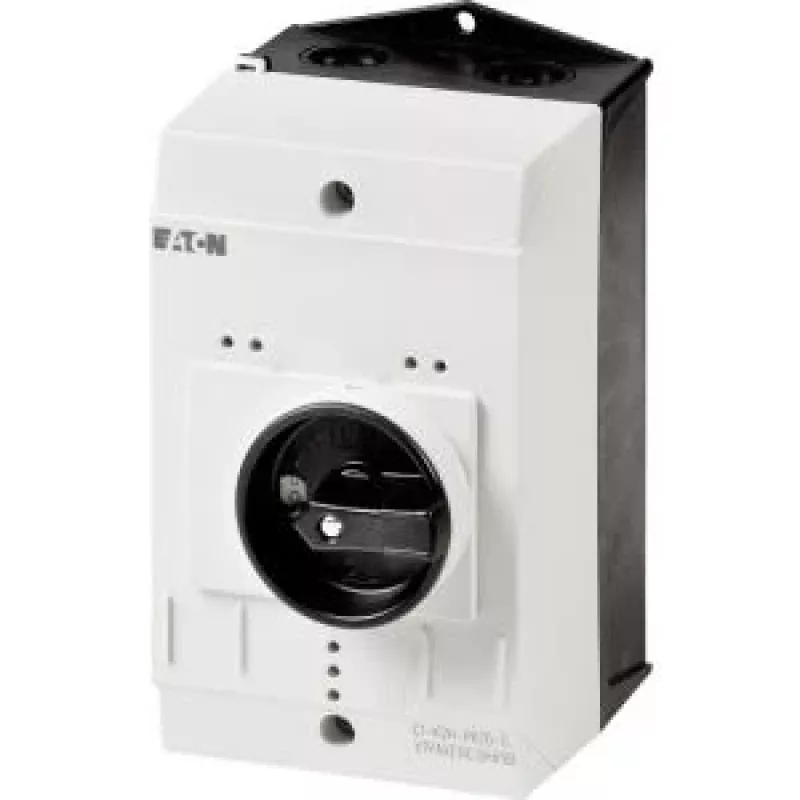

Eaton CI-K2-PKZ0-NA-G caixa vazia com interruptor rotativo, 160 x 100 x 100 mm, preto/cinzento 262680

Protect and control motor protective circuit breakers in harsh environments with this compact, surface-mount enclosure. The Eaton CI-K2-PKZ0-NA-G provides a secure, IP65-rated housing for PKZ0 series breakers, featuring an integrated rotary switch for convenient operation without opening the enclosure.

Who is it for

Electrical installers and maintenance technicians who need a durable, weatherproof enclosure for motor protection in industrial or outdoor settings.

Main features

• Integrated rotary switch for external control of the housed breaker
• Polycarbonate construction with black and grey finish
• Surface mounting for straightforward installation
• Undrilled cable entries allow custom configuration
• Compatible with Eaton PKZ0 motor protective circuit breakers

Specifications

• Dimensions: 160 x 100 x 100 mm (L x W x H)
• Material: Polycarbonate
• Colour: Black / Grey
• Protection class: IP65
• Impact resistance: IK07
• Mounting type: Surface mount
• Operating temperature range: -25 to +70 °C
• Insulation class: Class II
• Flammability rating: UL94-V0

Tips

Use a stepped drill bit or hole saw to create precise cable entry openings in the undrilled walls. Ensure the rotary switch is properly aligned with the breaker's actuator for reliable operation.
