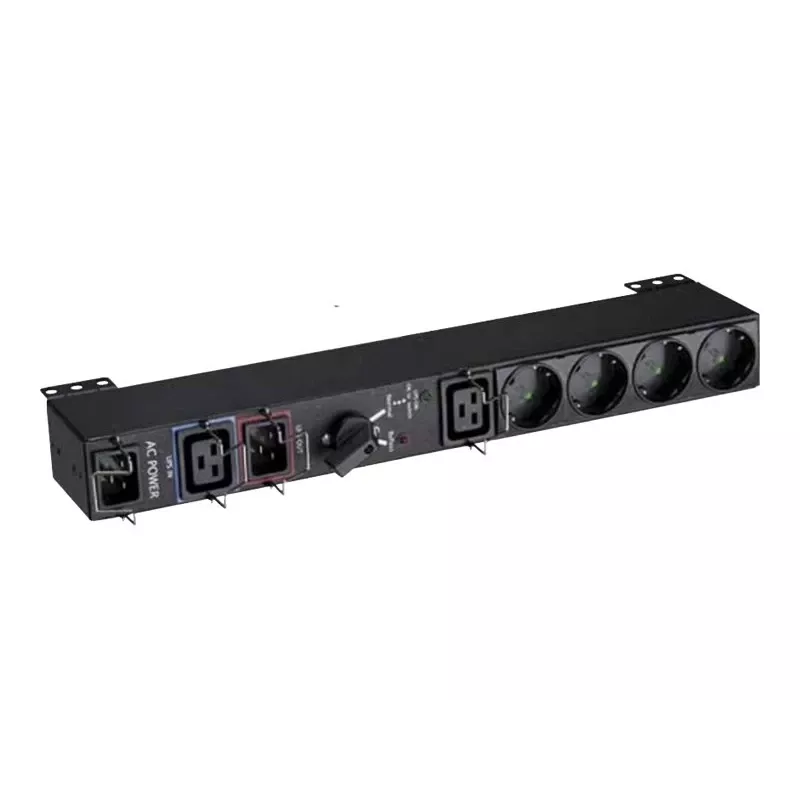

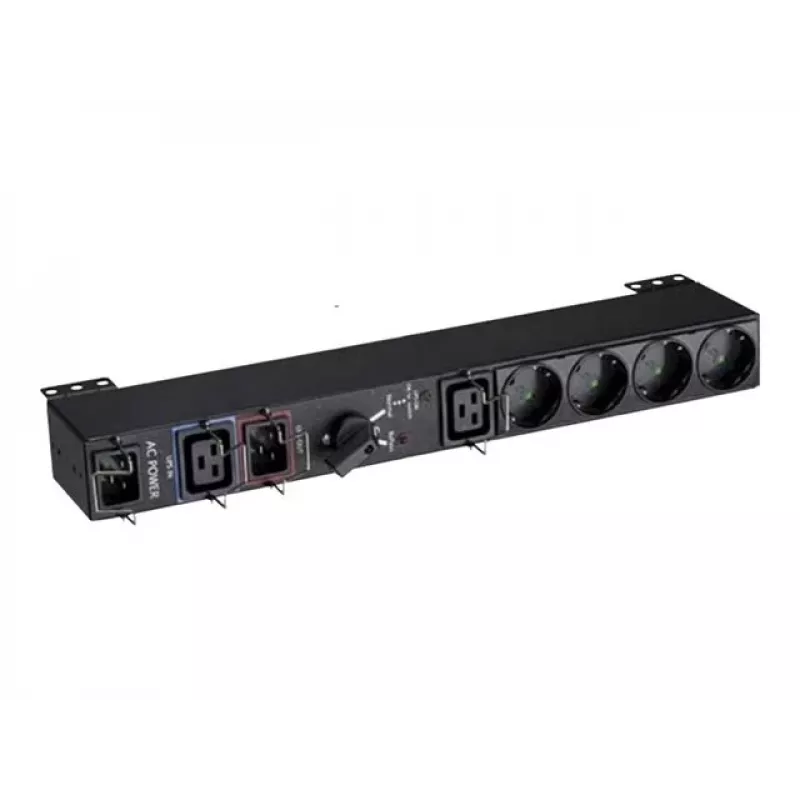

EATON HotSwap MBP DIN

The Eaton HotSwap MBP DIN is a versatile bypass switch designed to add high availability to UPS systems up to 3,000 VA. It enables hot-swappable replacement or maintenance of a connected UPS without interrupting power to protected devices, ensuring continuous operation.

Key features

• Hot-swap capability allows UPS replacement or maintenance without power interruption to connected equipment
• Supports UPS systems up to 3,000 VA with an input voltage range of AC 220-240 V
• Offers multiple mounting options: rack enclosure, wall mounting, or rear connection to a UPS
• Can be screwed at the back of a Pulsar UPS in either front-facing or rear-facing orientation, on left or right side
• Input connector: 1 x power IEC 60320 C20 (16A)
• Output connectors: 4 x power CEE 7/4 and 1 x IEC connector
• 19-inch rack-mountable design with dimensions of 48.3 cm x 12 cm
