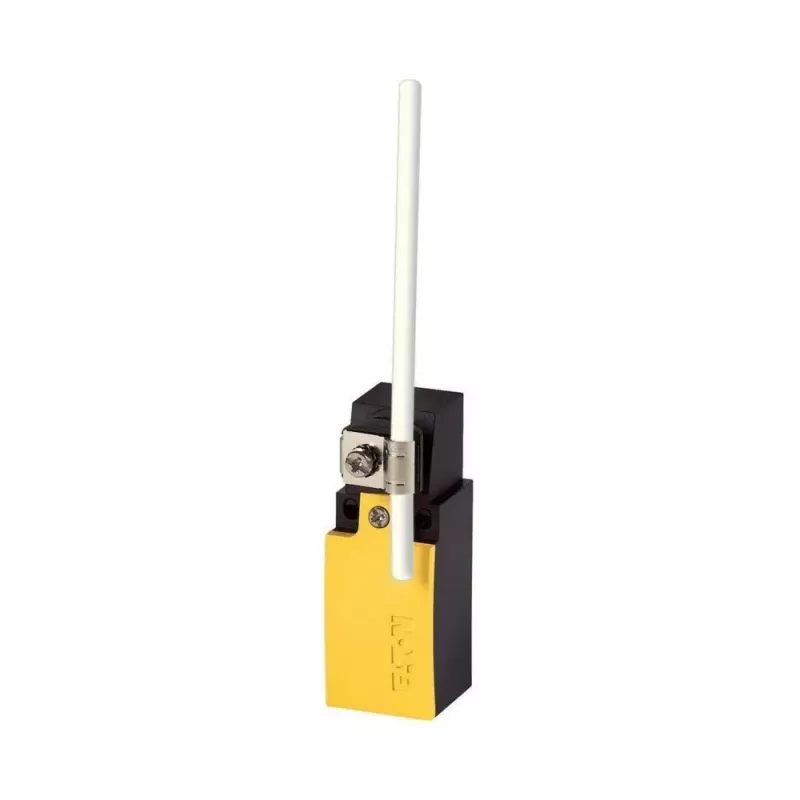

Eaton Interruptor de fim de curso LS-Titan, atuador de haste de mola, 1NO+1NC, 400V AC, IP67 106804

Rated for 400 V AC and 4 A, the Eaton LS-Titan limit switch delivers reliable position detection in harsh industrial environments. Its die-cast aluminum housing and IP67 sealing protect against dust and water immersion, while the spring rod actuator provides momentary, tactile operation.

Overview

The Eaton LS-Titan series limit switch is engineered for demanding automation tasks. This model features a spring rod actuator for momentary contact, a snap-action switching mechanism, and a contact configuration of 1 normally open (NO) and 1 normally closed (NC). It is rated for 230 V AC at 4 A and 400 V AC at 3 A, with a thermal current of 10 A.

What stands out

• IP67 ingress protection: dust-tight and protected against temporary immersion.
• Die-cast aluminum housing for durability in tough conditions.
• Snap-action switching for fast, reliable operation.
• Wide operating temperature range: -25 °C to +70 °C.
• Long mechanical life: 10 million operations.

Technical details

• Actuator type: Spring rod (momentary)
• Contact configuration: 1NO + 1NC
• Rated operational voltage (AC-15): 230 V AC / 4 A; 400 V AC / 3 A
• Rated operational voltage (DC-13): 24 V DC / 3 A
• Rated insulation voltage: 500 V AC
• Rated impulse withstand voltage: 6 kV
• Thermal current: 10 A
• Connection type: Screw terminals
• Cable entry: M20 x 1.5
• Electrical life: 1 million operations (AC-15, 230 V, 4 A)

Our verdict

A robust, high-performance limit switch for industrial applications where reliability and environmental resistance are critical.
