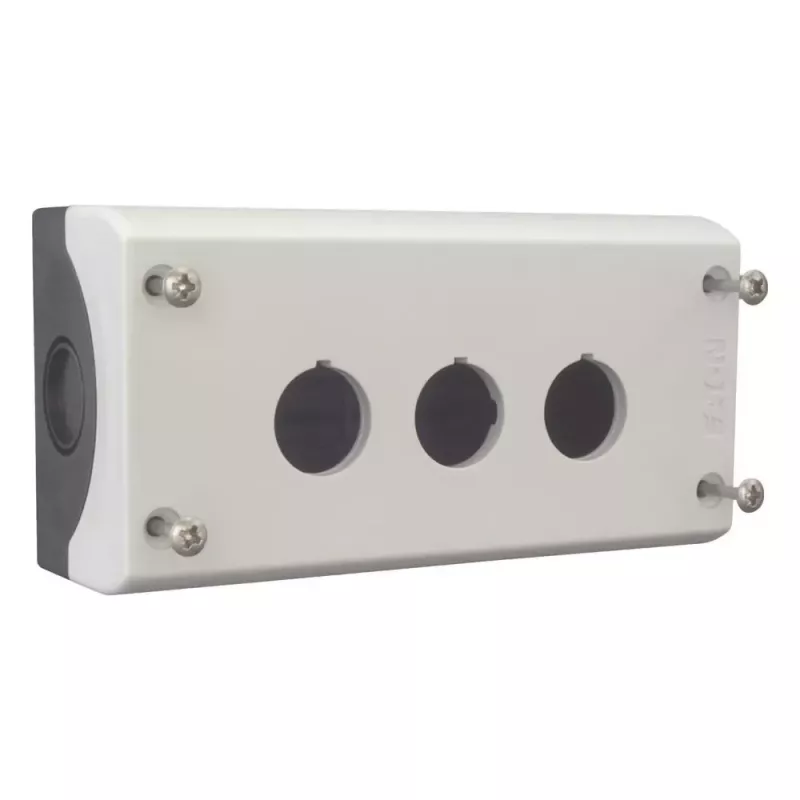

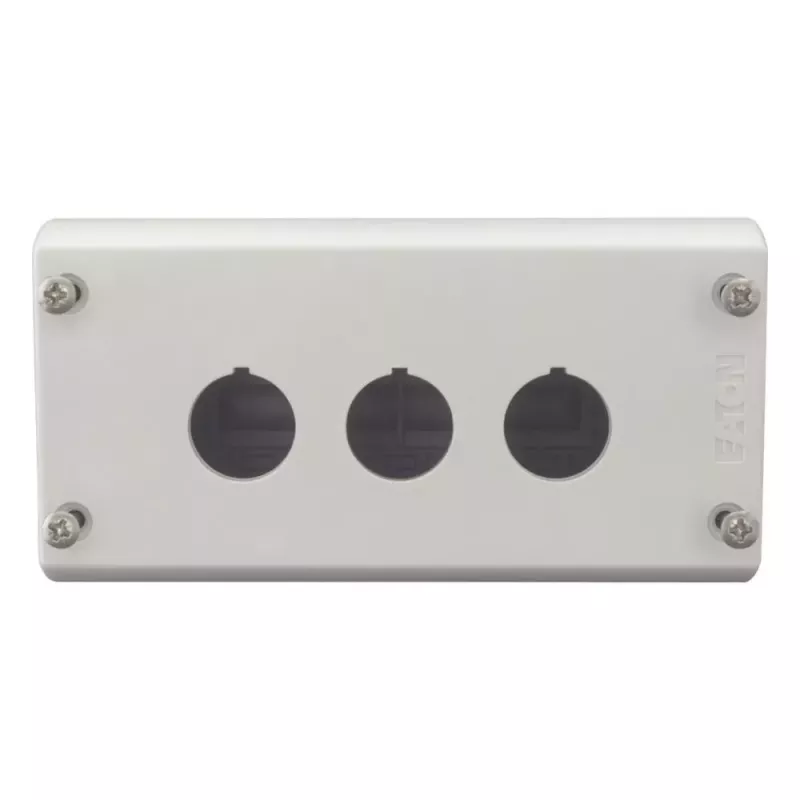

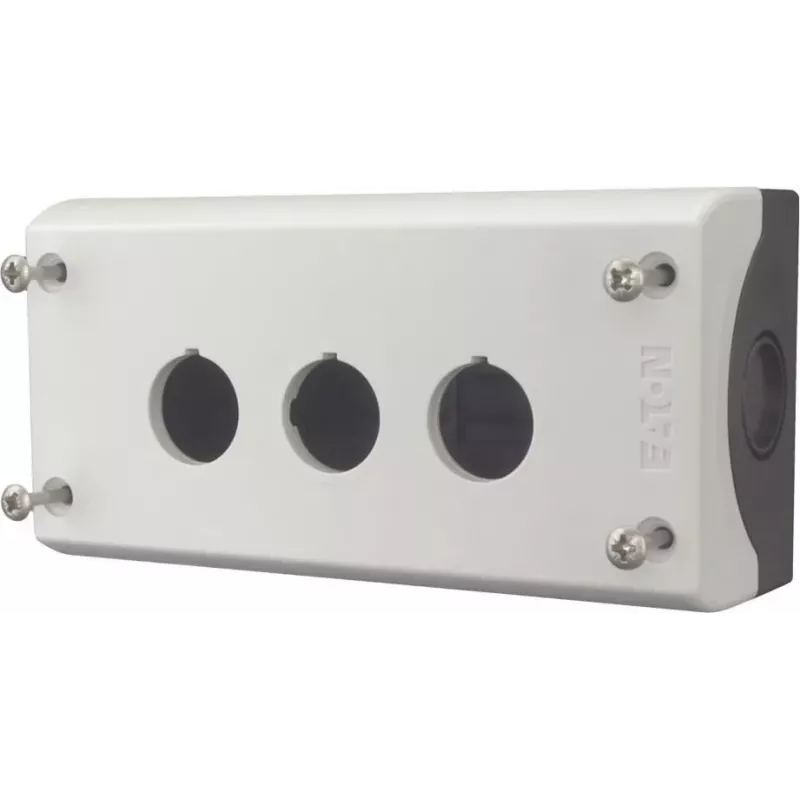

Eaton M22-I3 Caixa de superfície, 3 aberturas, cinzento RAL 7035, IP66/IP67/IP69K, 80x153x56mm

Industrial surface mounting enclosure for Eaton RMQ-Titan control devices, engineered to house up to three command and signalling units in demanding automation environments. Its robust thermoplastic body delivers exceptional protection against dust, water, and high-pressure cleaning, making it a reliable choice for machine building and panel installations.

Advantages

The M22-I3 enclosure combines high mechanical strength with a compact footprint, allowing flexible placement directly on machine frames or flat surfaces. The grey RAL 7035 finish integrates seamlessly into standard industrial control panels, while the base mounting design simplifies installation and maintenance. With IK08 impact resistance and a wide operating temperature range, it withstands harsh conditions without compromising the integrity of the mounted devices.

Suitable for

• Machine control stations requiring pushbuttons, selector switches, or pilot lights
• Industrial automation panels exposed to washdown or outdoor conditions
• Applications needing IP66, IP67, and IP69K protection levels
• Installations where surface mounting is preferred over flush panel cutouts
• Use with Eaton RMQ-Titan M22 series devices for a complete control solution

Key specifications

• Enclosure type: Surface mounting enclosure for base fixing
• Number of cutouts: 3 (for RMQ-Titan M22 devices)
• Material: Thermoplastic, grey RAL 7035
• Protection ratings: IP66, IP67, IP69K; NEMA 4X, 13
• Impact resistance: IK08
• Flammability rating: UL94 V-0
• Operating temperature: -25 to +70 °C
• Dimensions (W x H x D): 153 x 80 x 56 mm

Recommendations

For reliable control station housing in harsh industrial environments, the Eaton M22-I3 provides a durable, easy-to-install solution that meets stringent protection standards.
